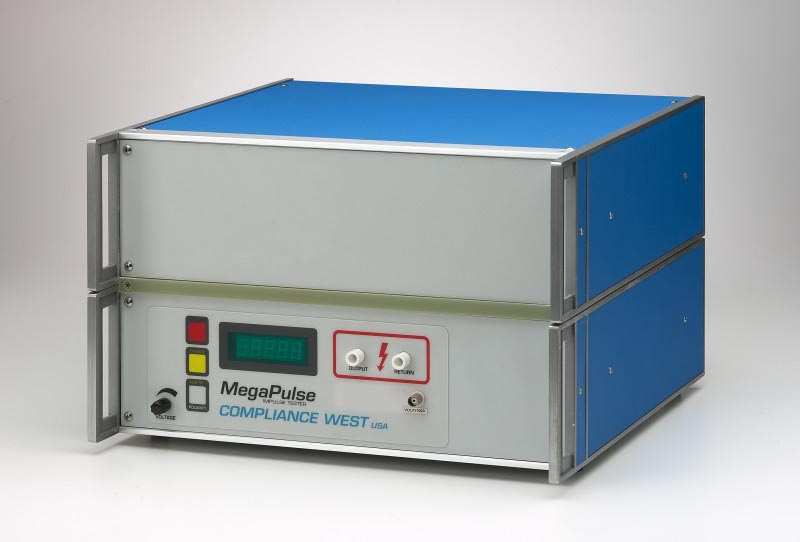

MegaPulse 1.2×50-12.3PF 500 ohm, 400-12.3kV, 3 sec charge time, 500 ohm virtual impedance; internal charge capacitor (bulk cap) can be charged to 12k.3V 0.5 Joules. In accordance with the requirements in IEC 62052-11 Section 7.3.2; and other Standards by reference. It is acceptable for testing to the requirements of IEC 62052-11 Section 7.3. This tester is in accordance with the measurement requirements of CTL DSH 251E. Power supply will deliver a pulse derived from a capacitor charged to 12.3kV with energy of 0.5J. Optionally other voltages can be selected for a 0.5J delivery as well.

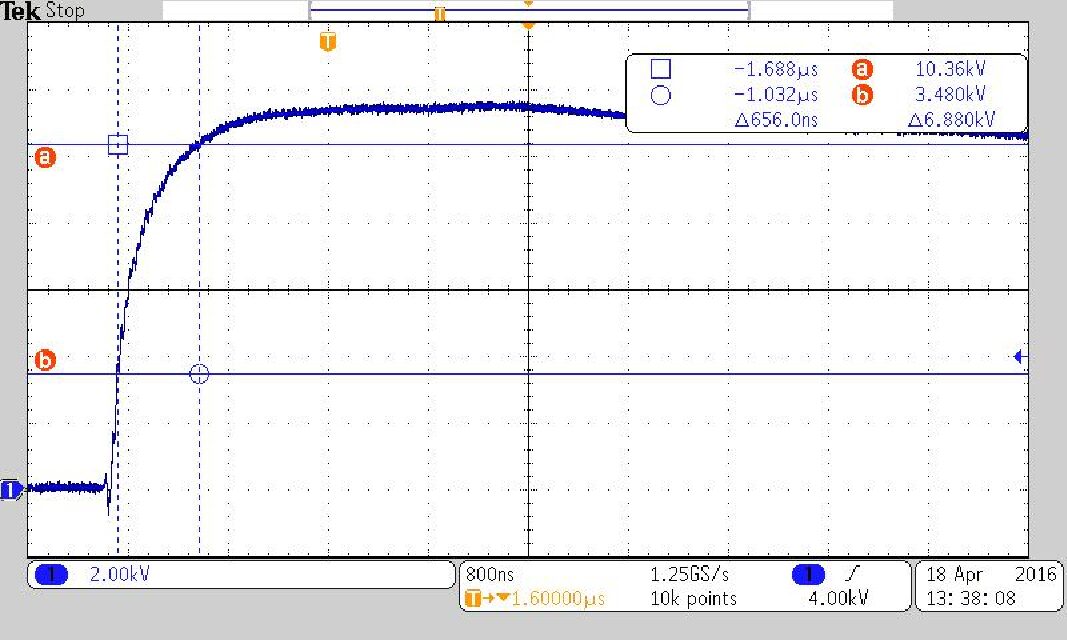

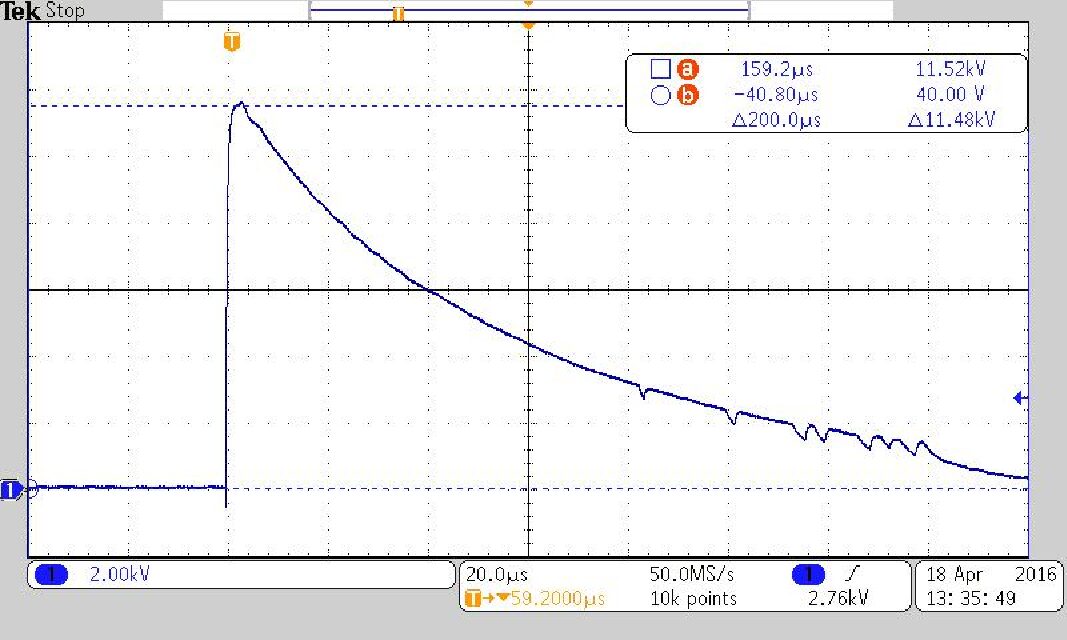

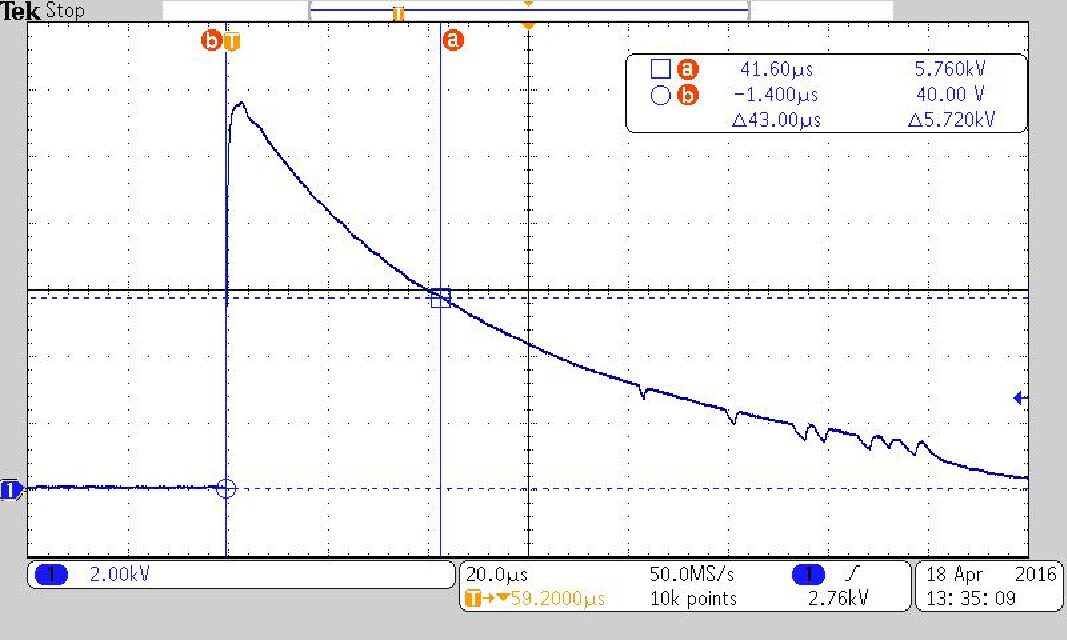

The extremely small energy and very high voltages have shown transients in the tail of the pulse delivery duration graph, at voltages less than 50% of the peak output. Because the output is “clean” from the peak to the 50% voltage level, the duration of the waveform is easily measured and calculated; these transients have no effect on the calculation. This is due to the arc between the relay contacts extinguishing before the entire waveform has been delivered. Please see our white paper “Impulse Testing Waveforms and Relay Performance” for further details and waveform examples. This behavior is only manifest at 12kV. Lower voltage waveforms do not exhibit this transient.

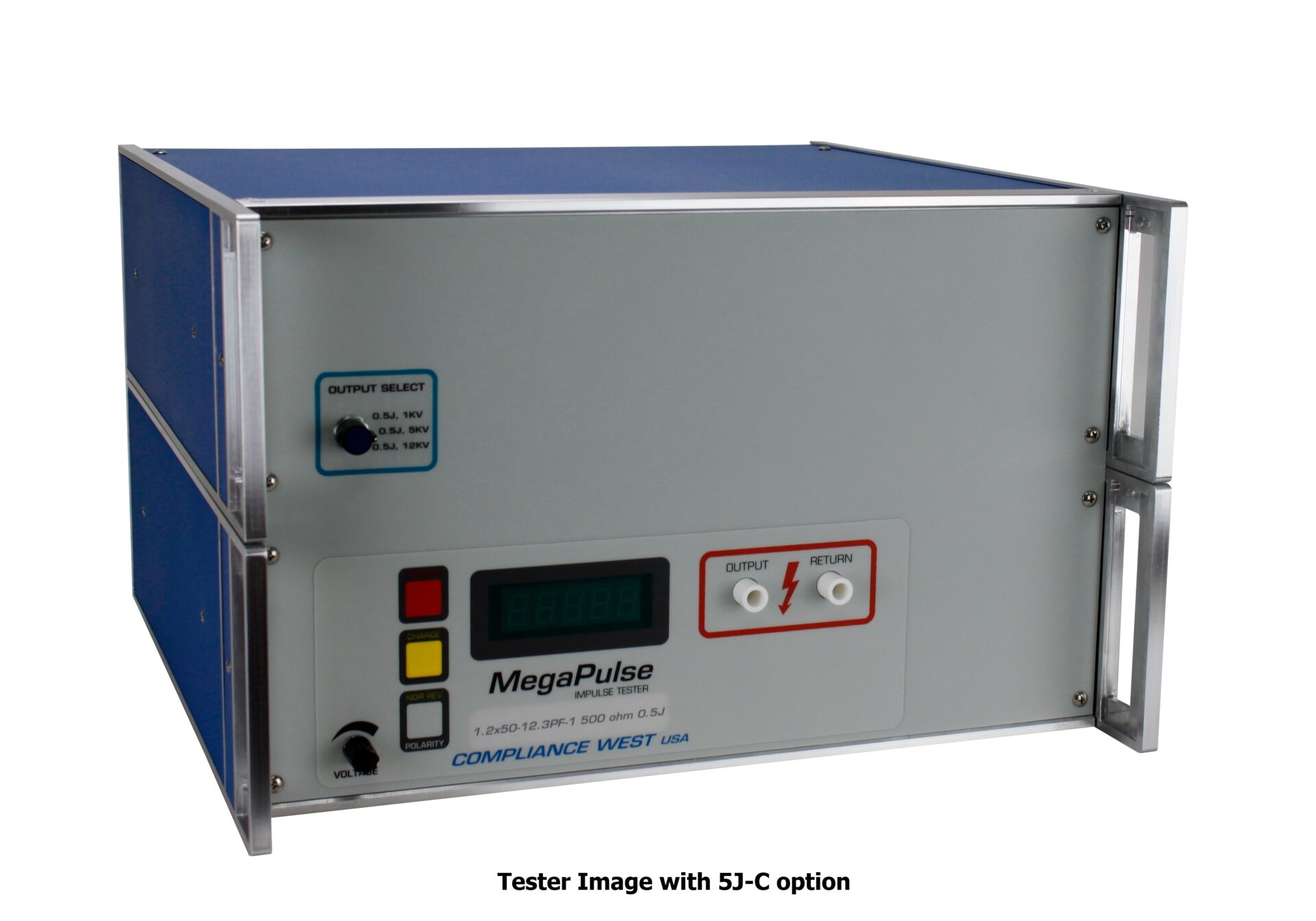

Available options offer multiple voltages with 0.5J output, refer to datasheet for details.
The switch is our IER model.
The meter shows the peak of the output waveform into an open circuit. Pulse delivery one per 10 seconds.

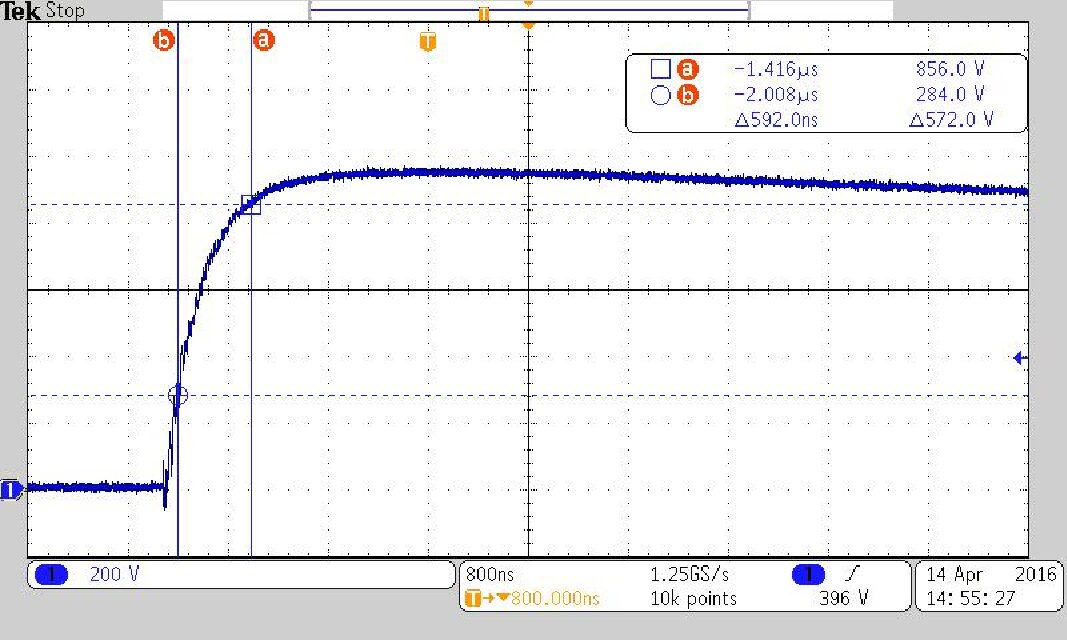

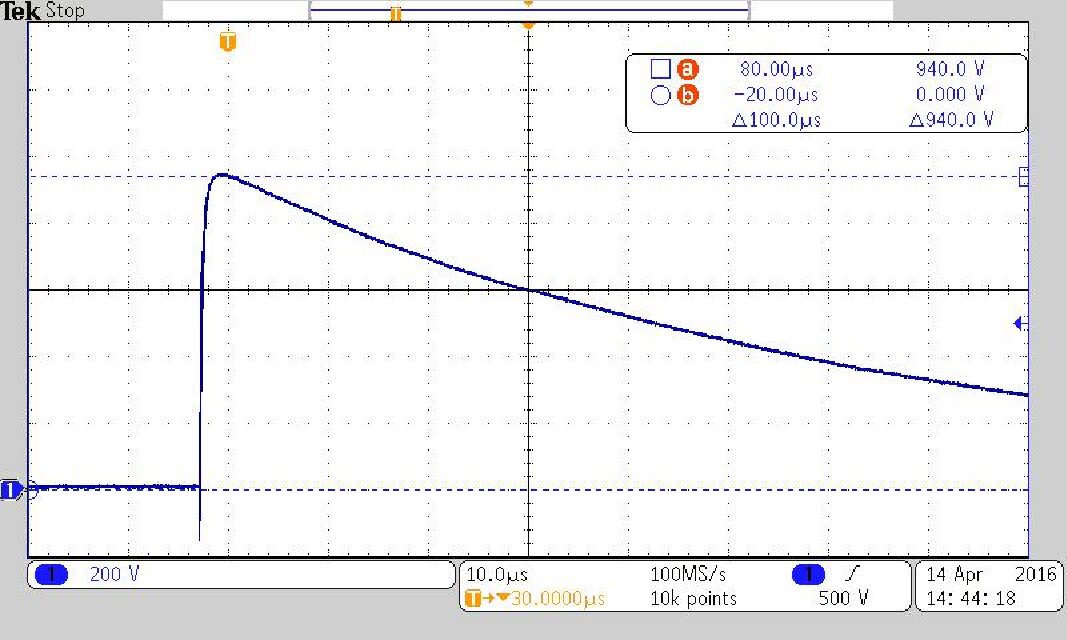

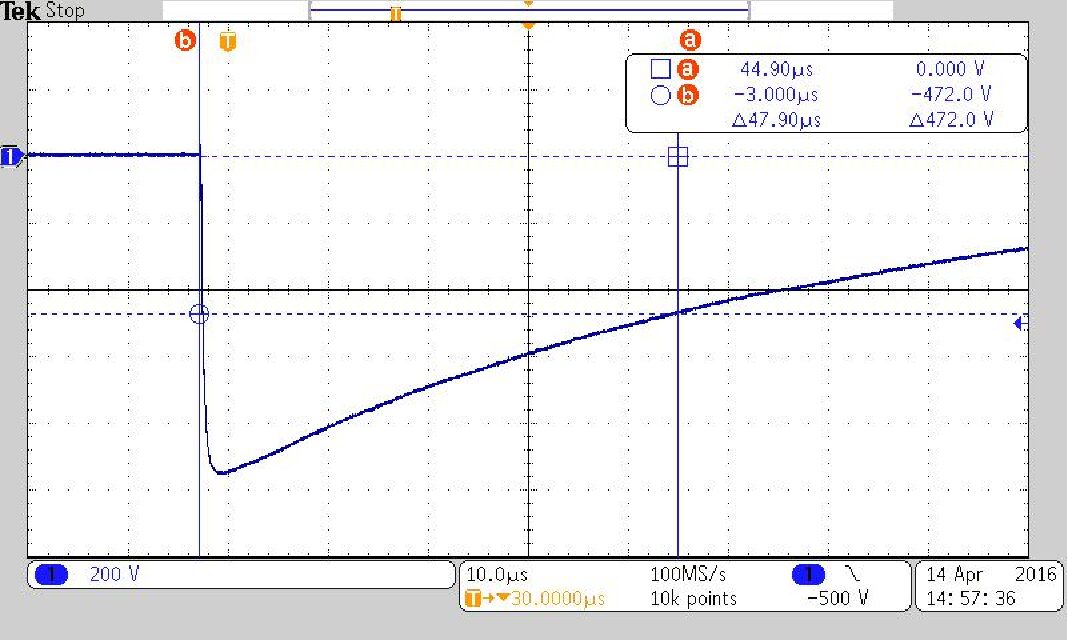

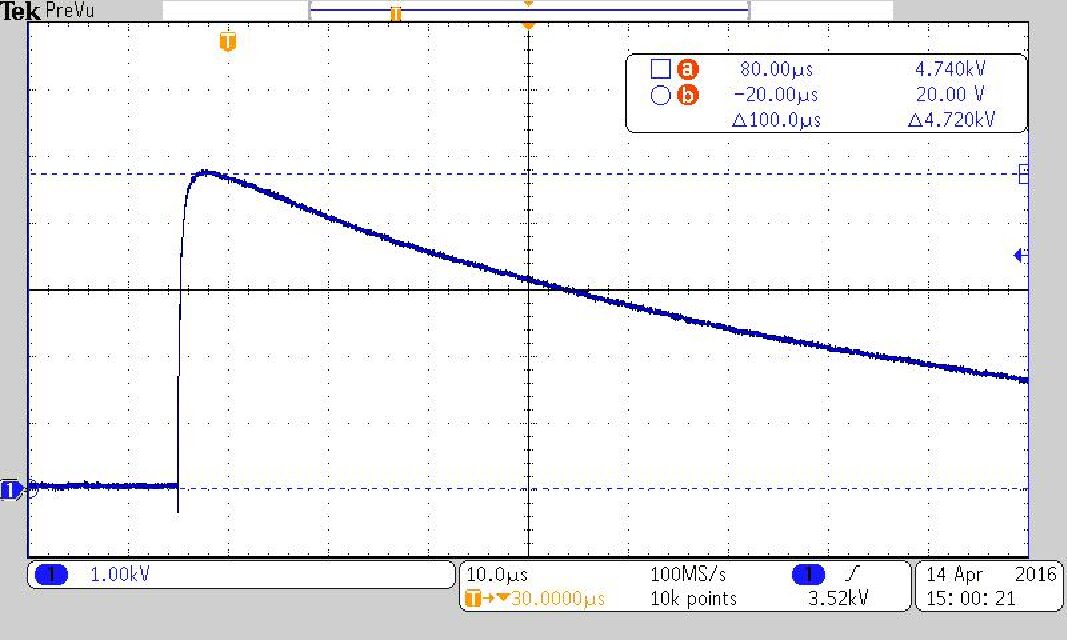

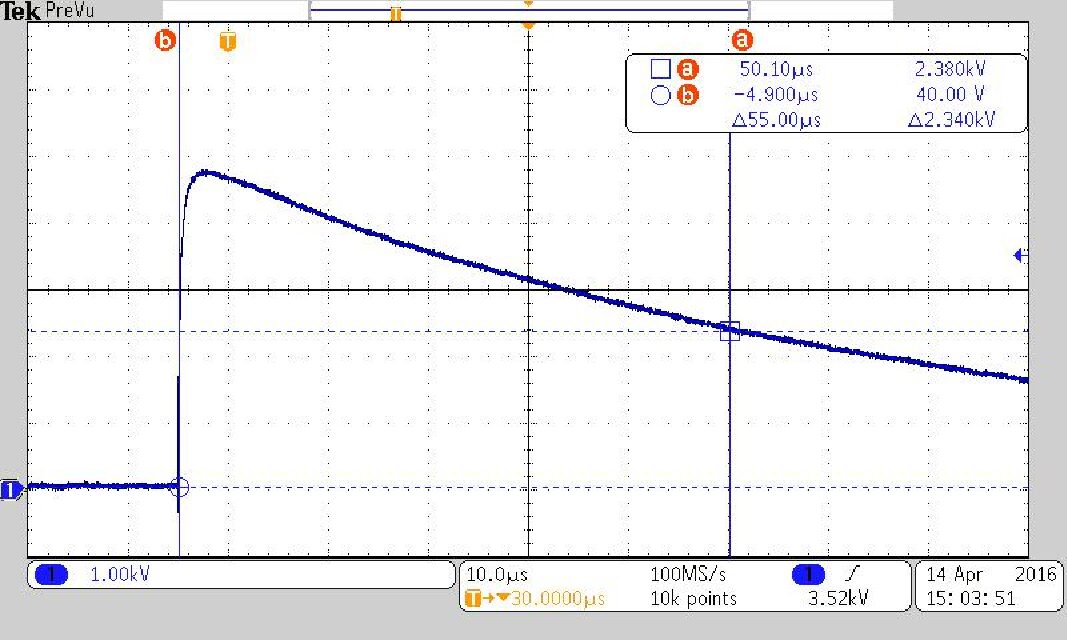

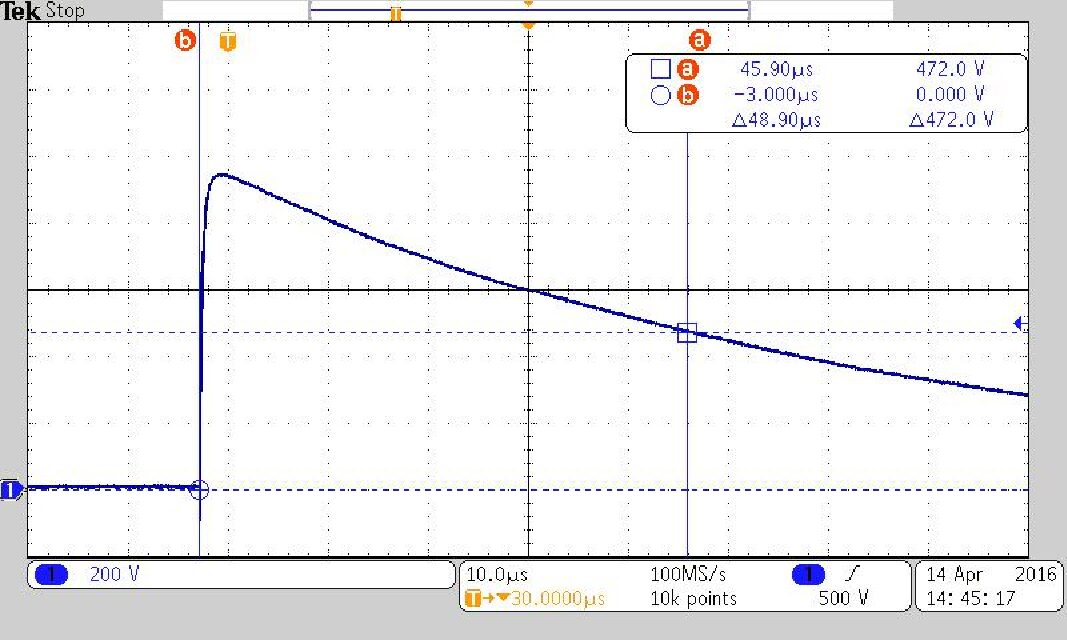

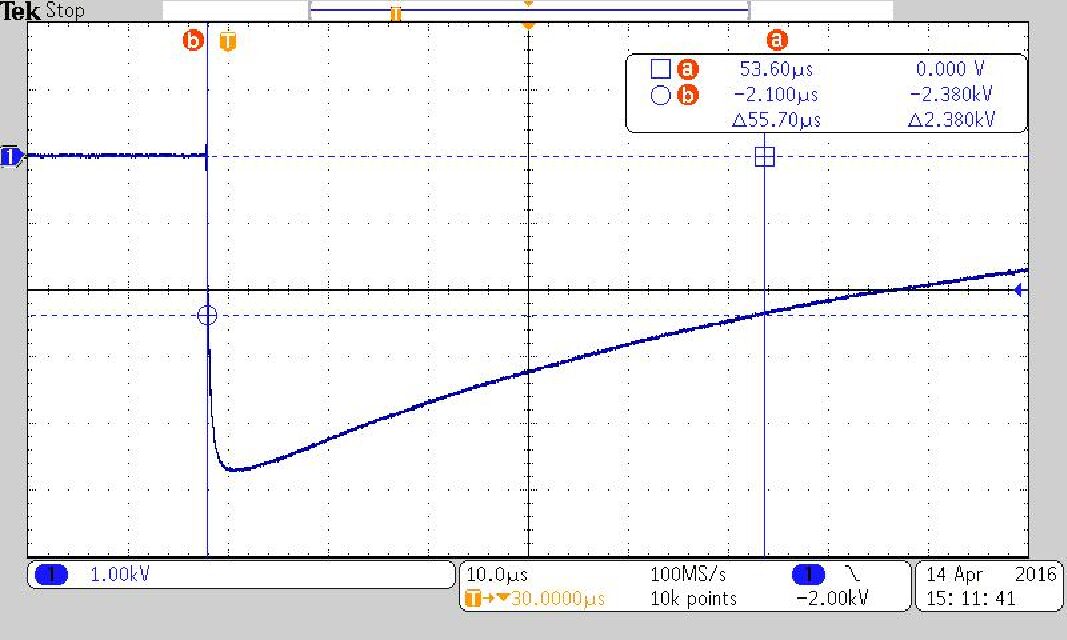

Please see Manuals Section below to view waveforms.
For automated pulse delivery, please order Option TMM-PF, TestMinder MegaPulse PF.
Features
• Digital output voltage knob on the front panel.
• Integrated High Voltage on hold circuit.
• External interlock disables HV output and defeats test when circuit is open.
• Microcontroller technologies.
• Front panel indicates internal HV and polarity.
• Polarity button selector on the front panel.
• Up to 12kV peak output.
• Optional USB TestMinder, computer control with auto-trigger.
• Leads, manual and calibration certificate included.
• One year calibration cycle
• One year warranty.
Specifications
TESTING CIRCUITRY
Output Peak Voltage at 12kV: 12kV ±10%.
Open Circuit Rise Time: 1.2us, ±30% (Trise=1.67*(T90%-T30%) per IEC 1180.
Open Circuit Duration Time: 50us, ±20% (Time to half-value) per IEC 1180.
Virtual Impedance: 500Ω.
Current Waveform: Not defined.
Energy: 0.5J ±0.05J @ 12kV only.
CONTROL
Voltage Control: Manually, Digital knob on the front panel or via optional USB TestMinder.
Polarity Control: Pos. and Neg. Alternating control on front panel or via optional USB TestMinder.
Charge: Control on front panel or via optional USB TestMinder.
Trigger: Control on front panel or via optional USB TestMinder.
Remote Control: Optional wired remote control, 20ft long, controls, Trigger, Charge, and Polarity.
DISPLAY
Voltage Display: 5 Digit LED Display.
Voltage Meter resolution: 5V.
Voltage Meter Accuracy: ±1%.
Display Reads: Output Voltage. (Not bulk cap).
OPERATION
Duty Cycle: 30s between pulses.
Charge Time: <3s.
Time between pulses: Adjustable via USB TestMinder software.
ELECTRICAL
Line Voltage: 120V AC, 50/60Hz. Optional 100, 110, 220, 230 and 240V.
SAFETY
Safety Interlock 2-pin terminal block on rear panel; shorted for operation.
OUTPUTS – FRONT
OUTPUT: High Voltage insulated socket.
RETURN: High Voltage insulated socket.
OUTPUTS – REAR
TESTMNINDER: DB9 Female (Optional).
SAFETY INTERLOCK: 2-pin Terminal Block.
Inlet Module: Inlet module with fuse and power switch combination.
ENVIRONMENTAL
Operating Temperature: 15-28 ºC.
Relative Humidity Range: 0-90% non-condensing.
