1.2x50/8x20-2.5PF 12Ω:

SKU: 00-MP1.2x50/8x20-2.5PF 12

Surge Combination Tester
2.5kV 12Ω, Grounded Output

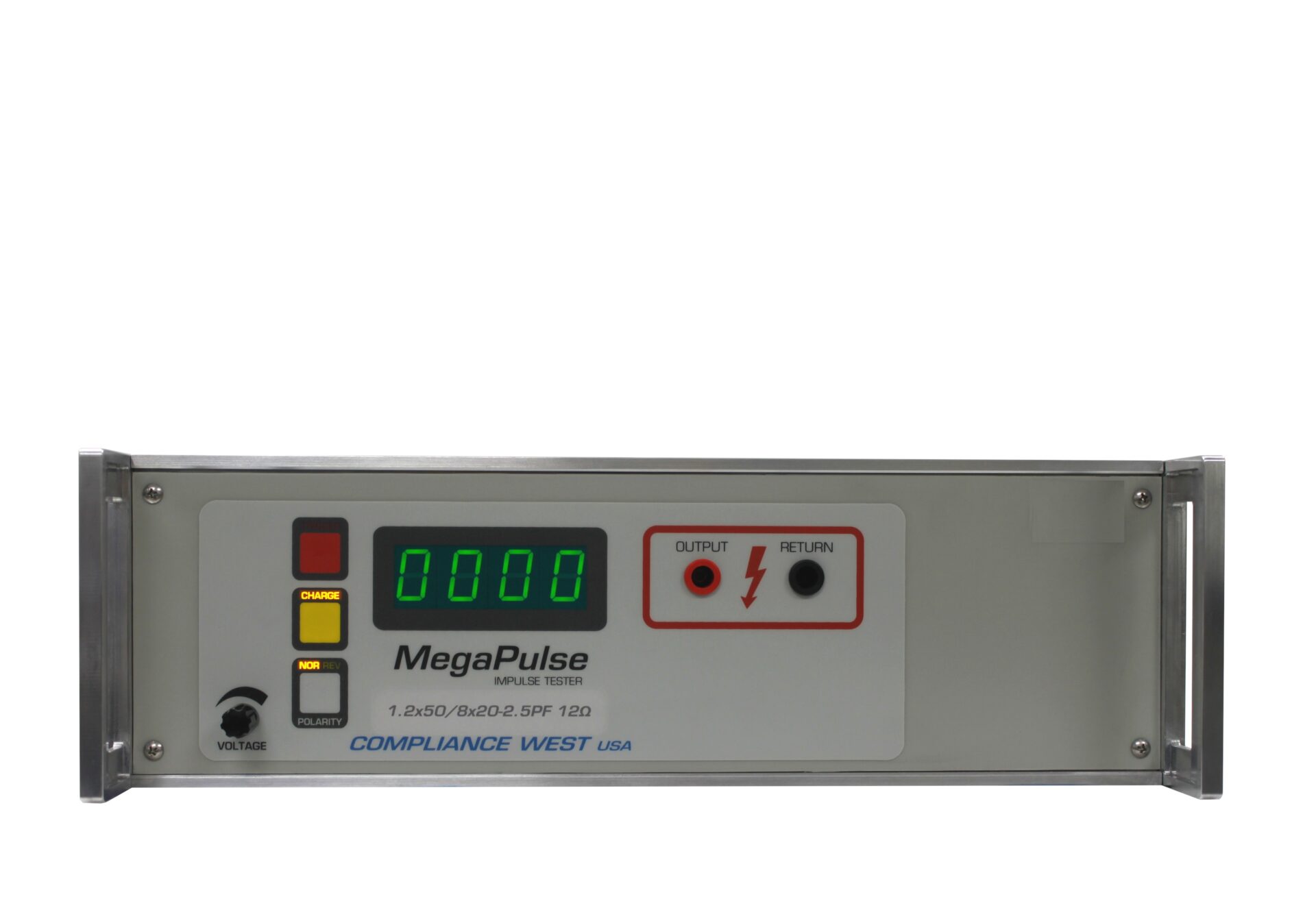

MegaPulse 1.2×50/8×20-2.5 combination tester, 12Ω,  2500V.

Mains Voltage (leave blank for 120V)

Relay Isolated Interface: See manual section for details


Surge Combination Tester <br />2.5kV 12Ω, Grounded Output $7,510.00

Designed & Built in the USA

  • 1-Year Warranty
  • 100% Secure Checkout
Guaranteed Safe Checkout

The MegaPulse 1.2×50/8×20-2.5PF 12Ω is our 2.5kV, 12Ω combination tester, with a 30 second cycle time. It can produce a combination test waveform at 12Ω 2.5kV, in tolerance with EN 60060.

Features grounded outputs, and is acceptable for unpowered testing.  Not for powered testing with a CDN.

The MegaPulse 1.2×50/8×20-2.5PF 12 ohm is equipped with a relay allowing switch selected polarity output. With the switch selected polarity output, users may opt for computer control via our TestMinder option or PLC guided operation with our Relay Isolated Interface option.

The tester charges in less than 30 seconds. Sold with a one year warranty and calibrated to NIST Standards. ISO17025 Calibration available at extra charge.

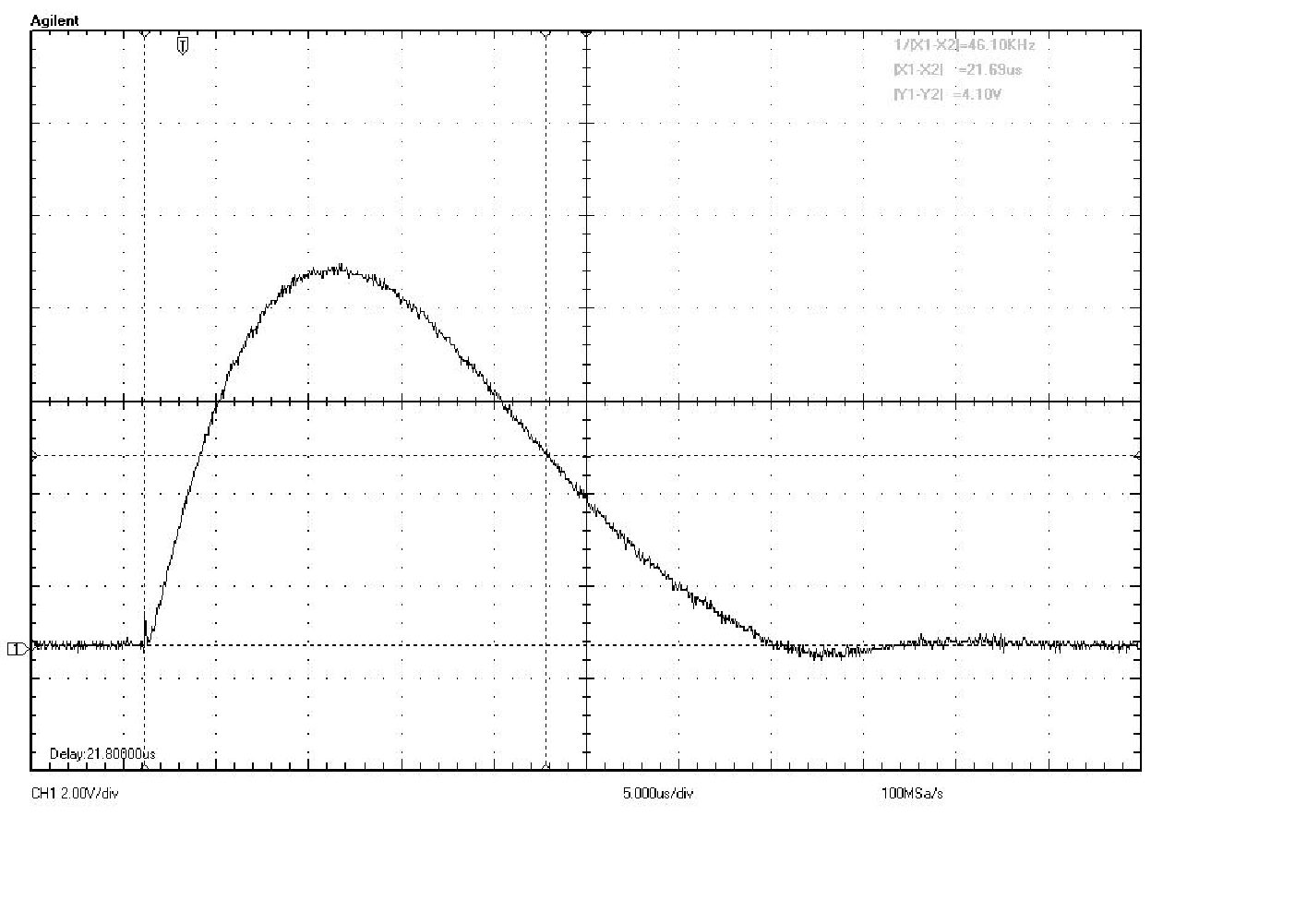

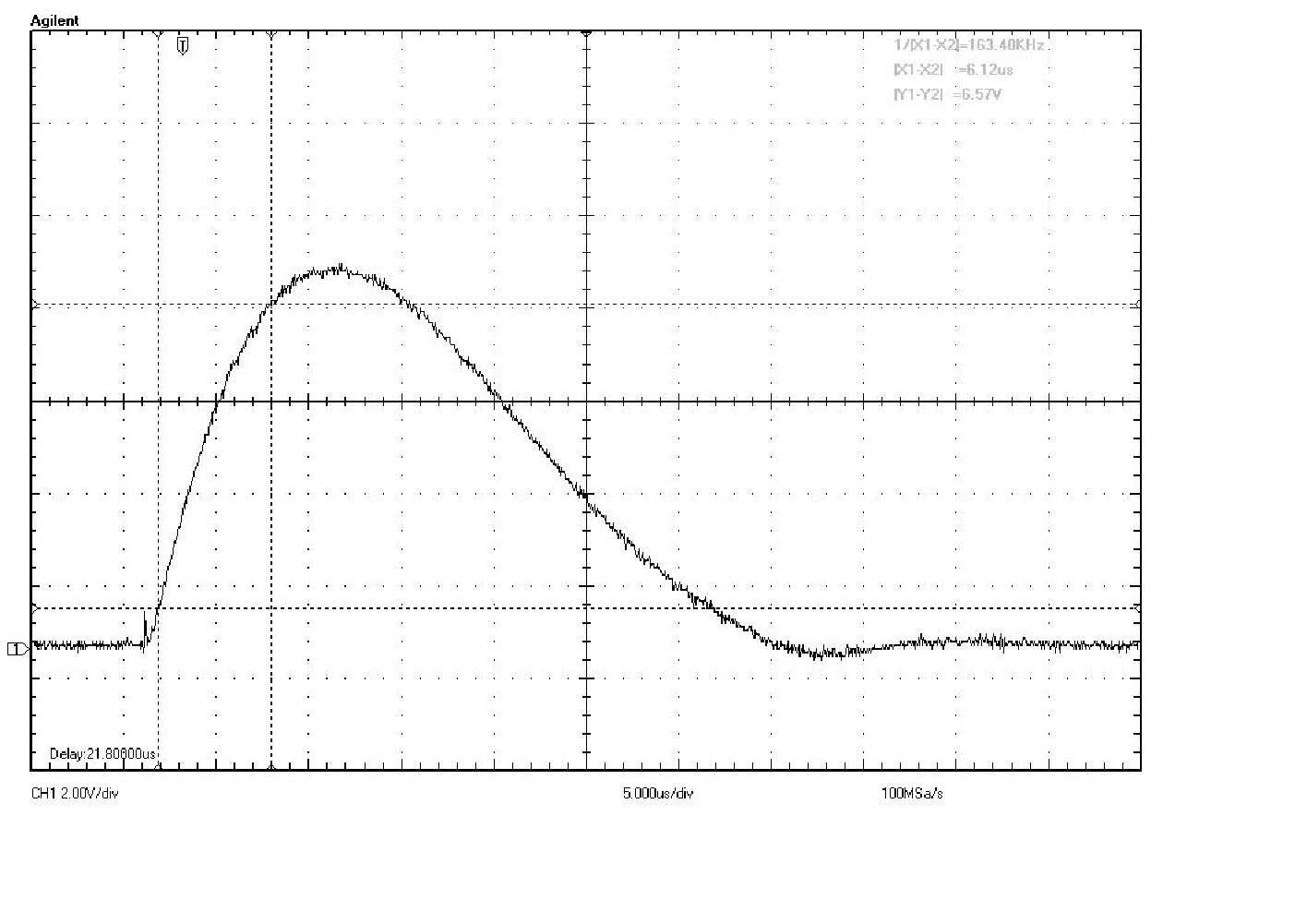

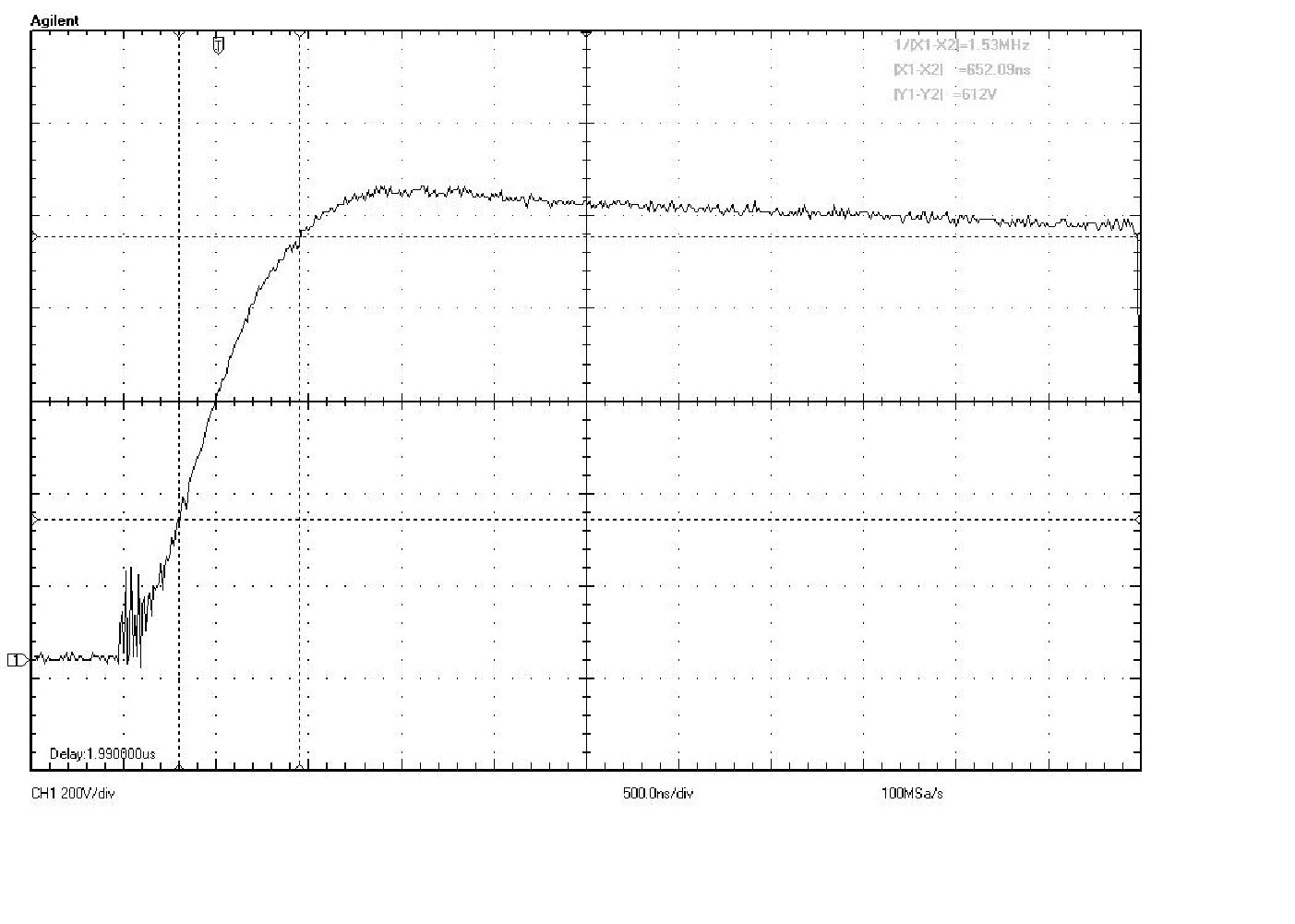

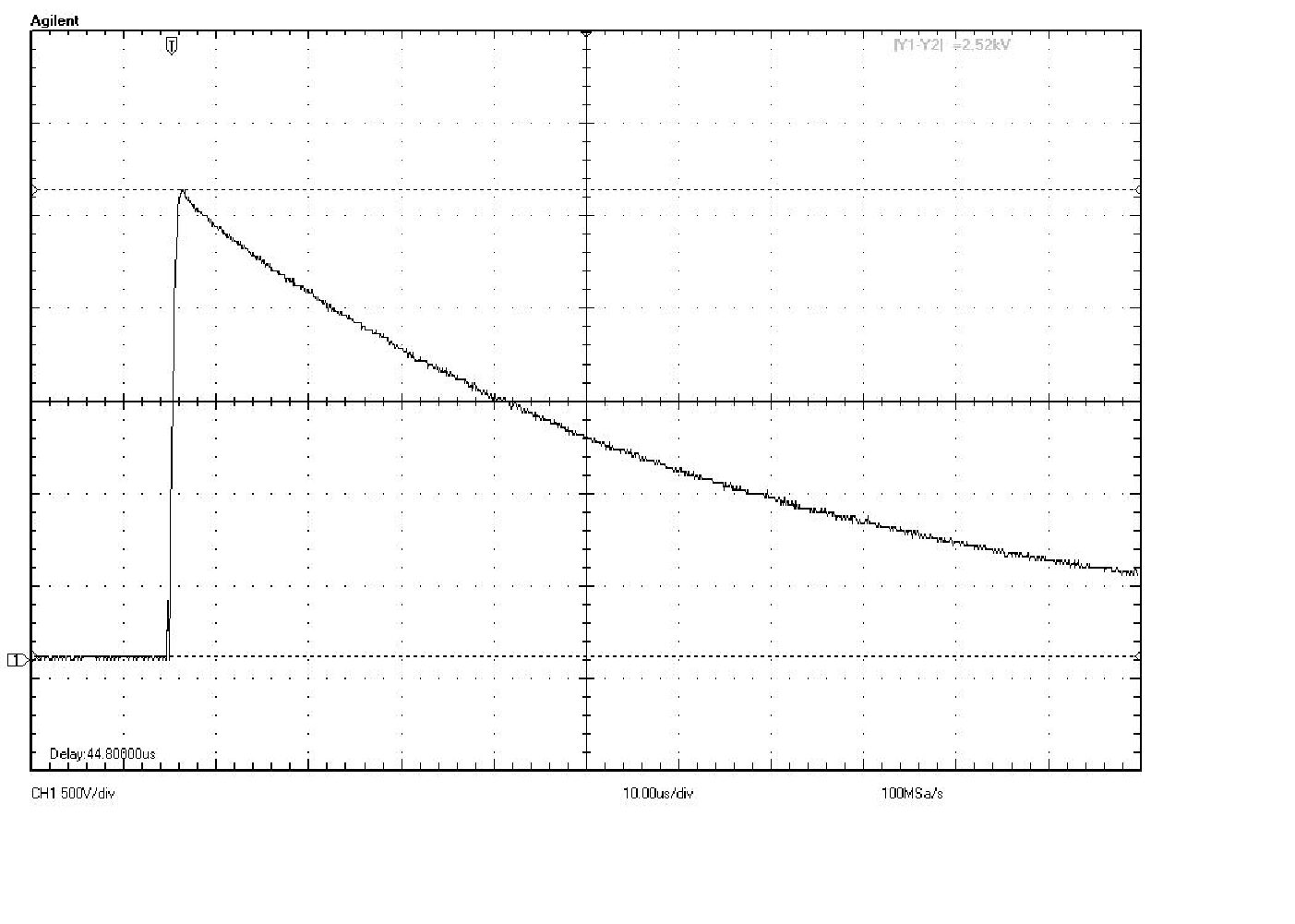

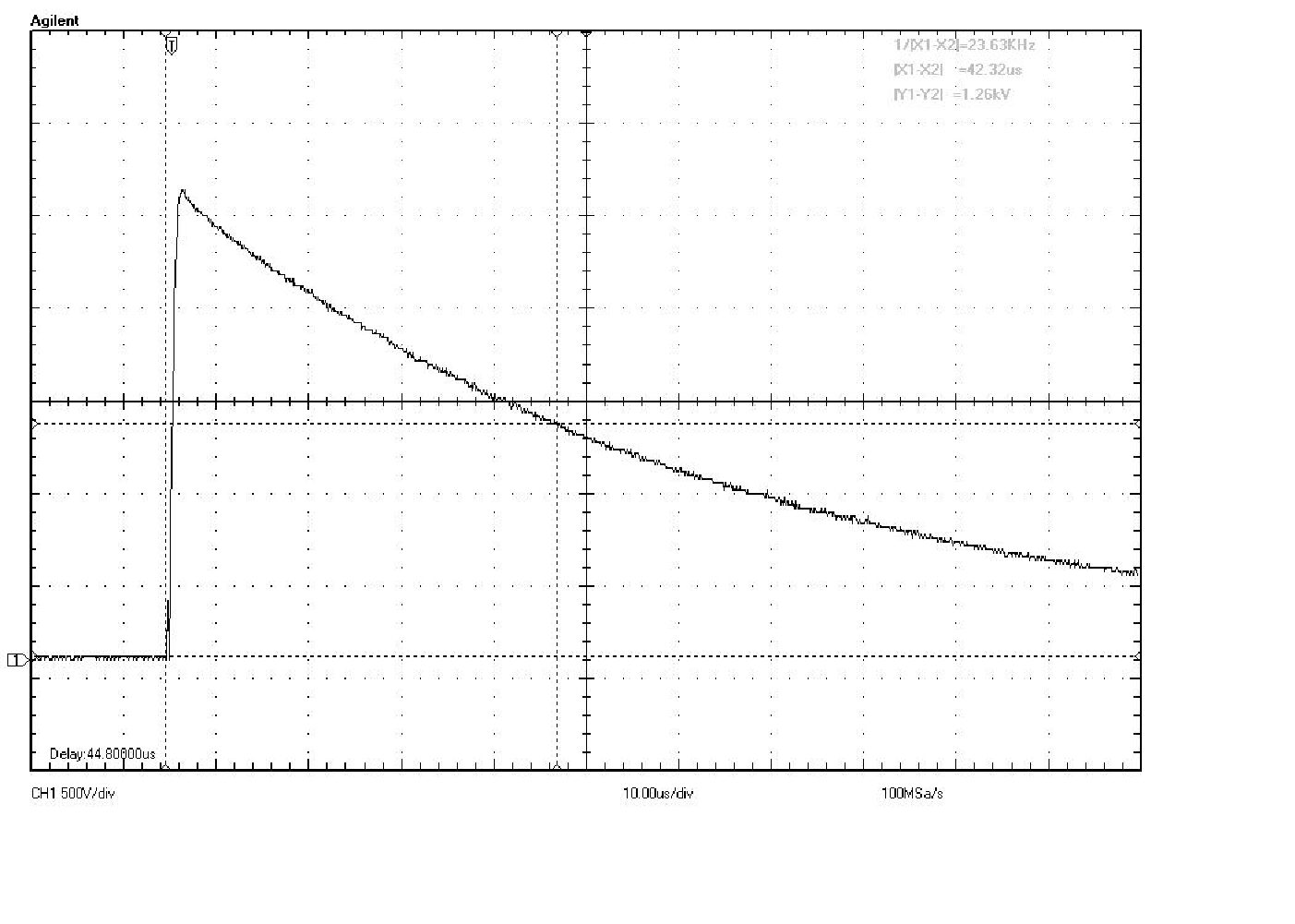

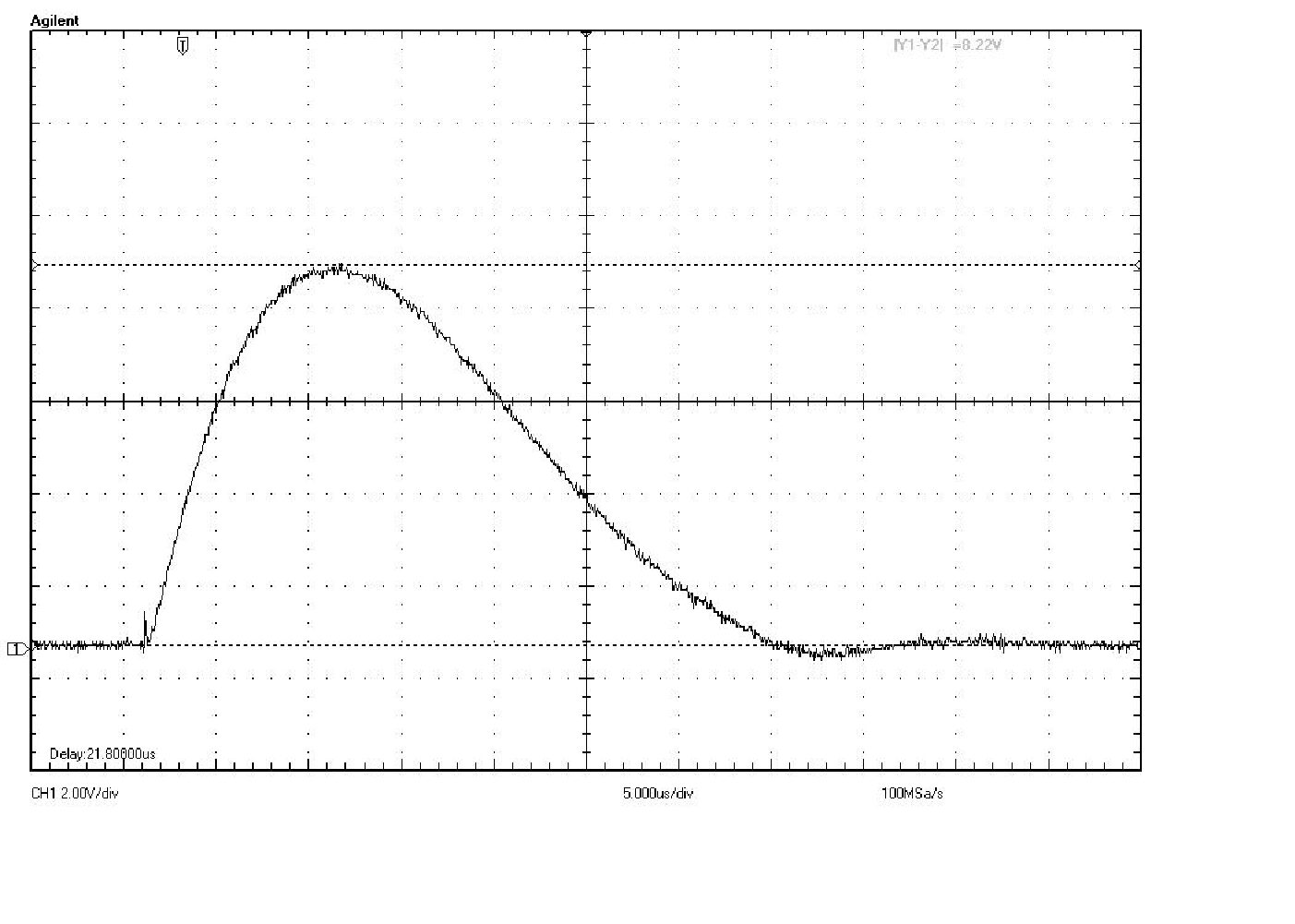

Waveforms can be viewed in the Manuals Section below.


  • Digital output voltage knob on the front panel.
  • Integrated High Voltage on hold circuit.
  • External interlock disables HV output and defeats test when circuit is open.
  • Microcontroller technologies.
  • Front panel indicates internal HV and polarity.
  • Polarity button selector on the front panel.
  • Grounded Output.
  • Optional USB TestMinder, computer control.
  • Auto-trigger via TestMinder USB.
  • Leads, manual and calibration certificate included.
  • One year calibration cycle.
  • One year warranty.

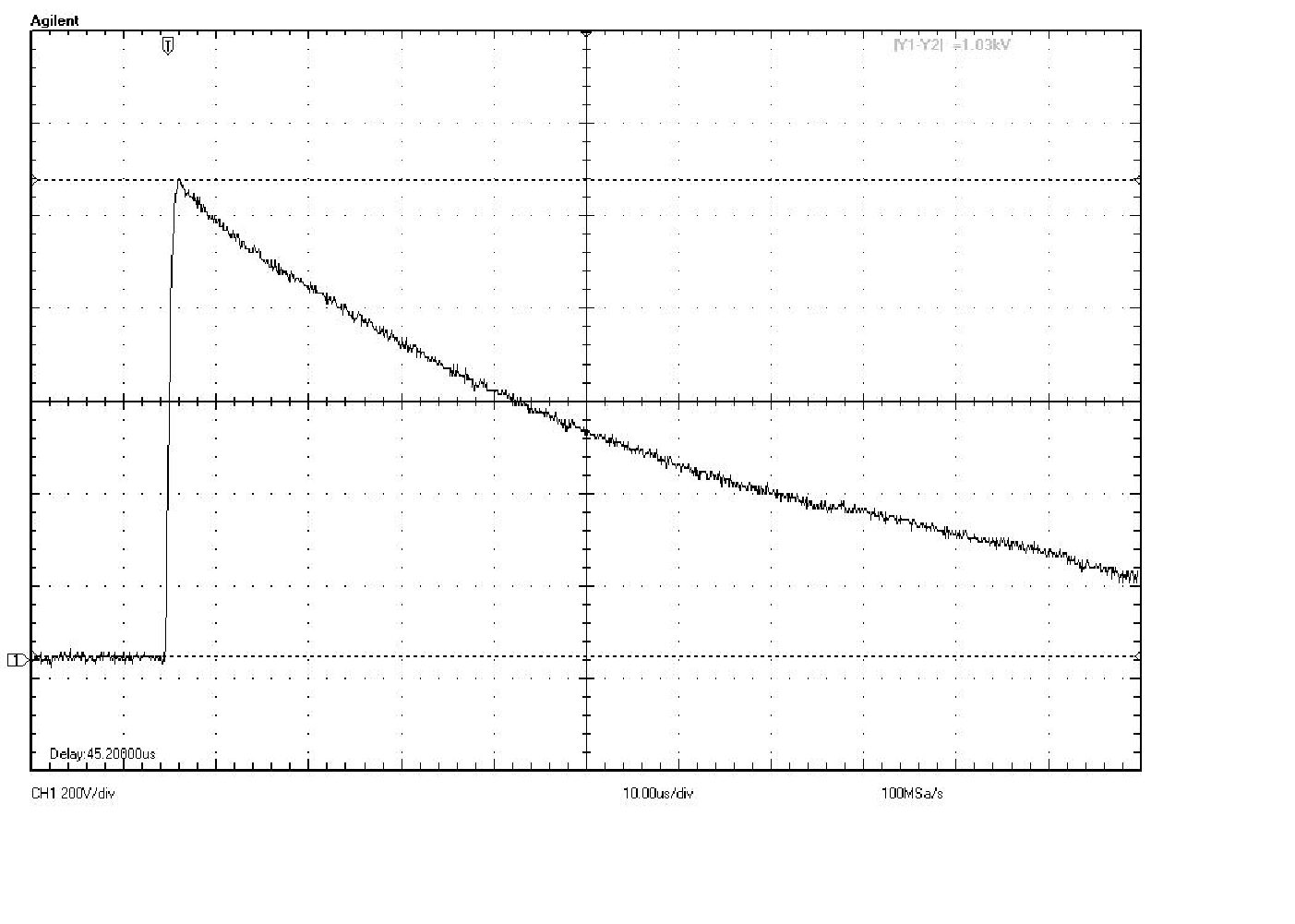

Max Output Peak Voltage: 2500V.

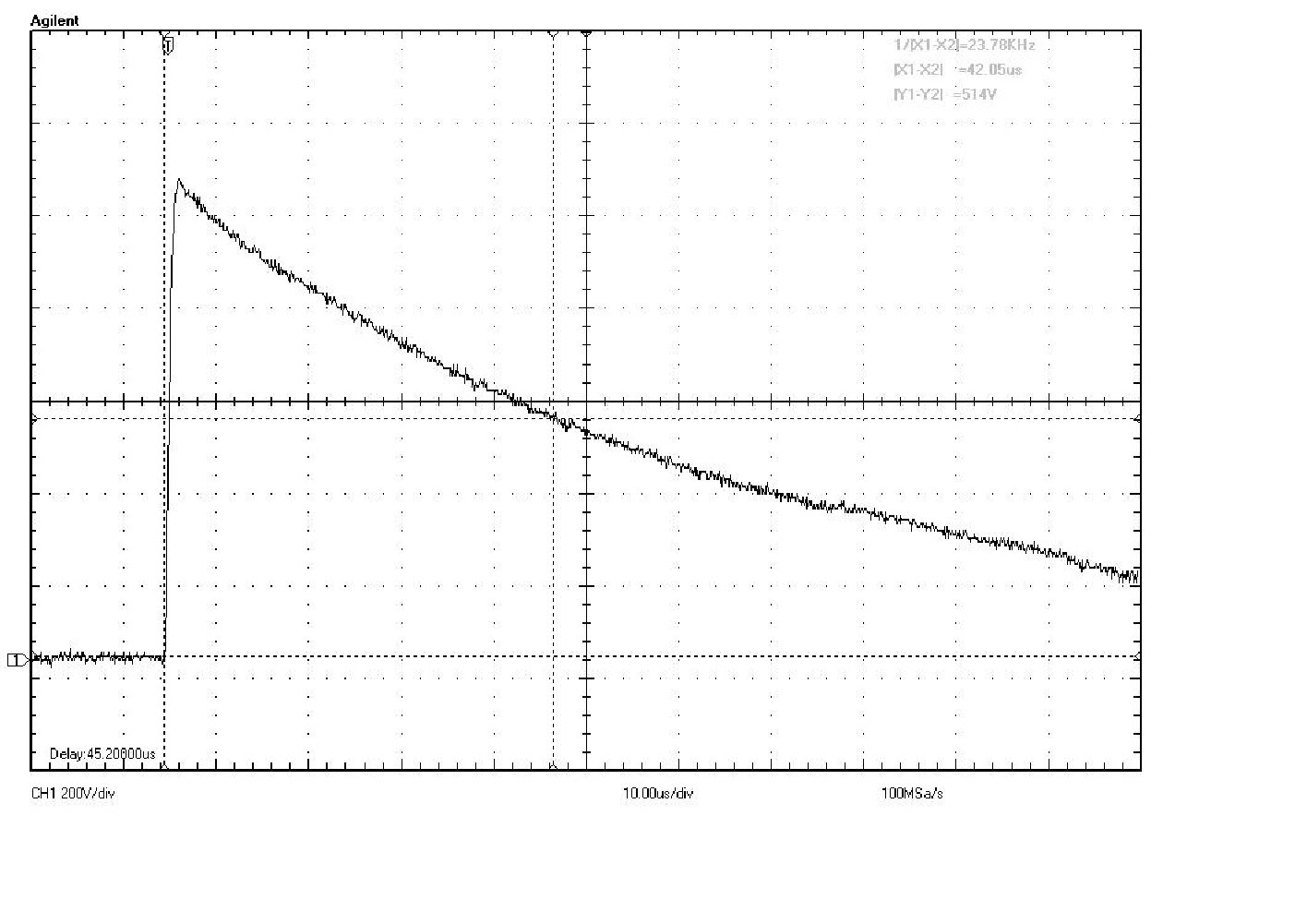

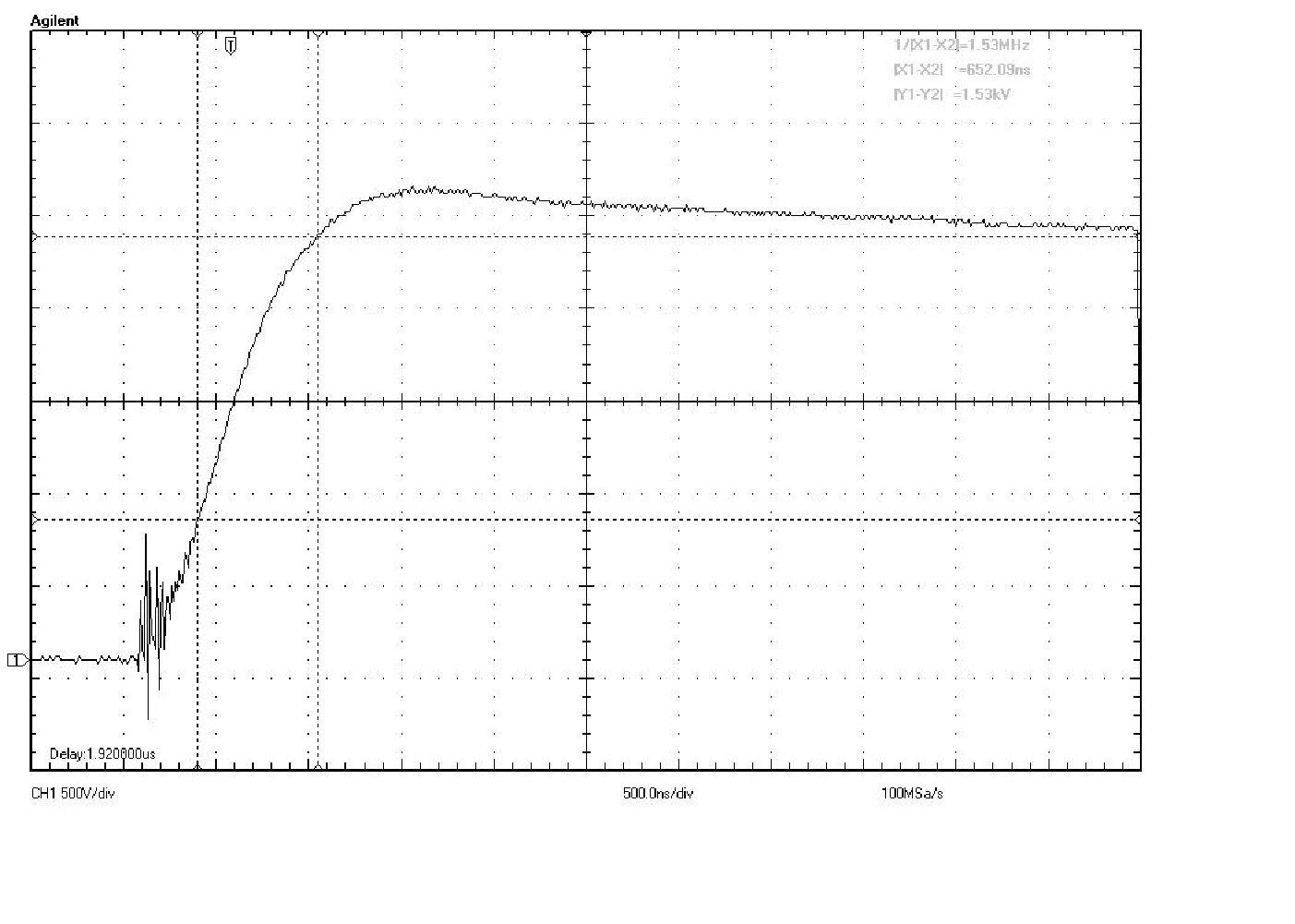

Open Circuit Rise Time: 1.2uS, ±30% (Trise=1.67*(T90%-T30%).

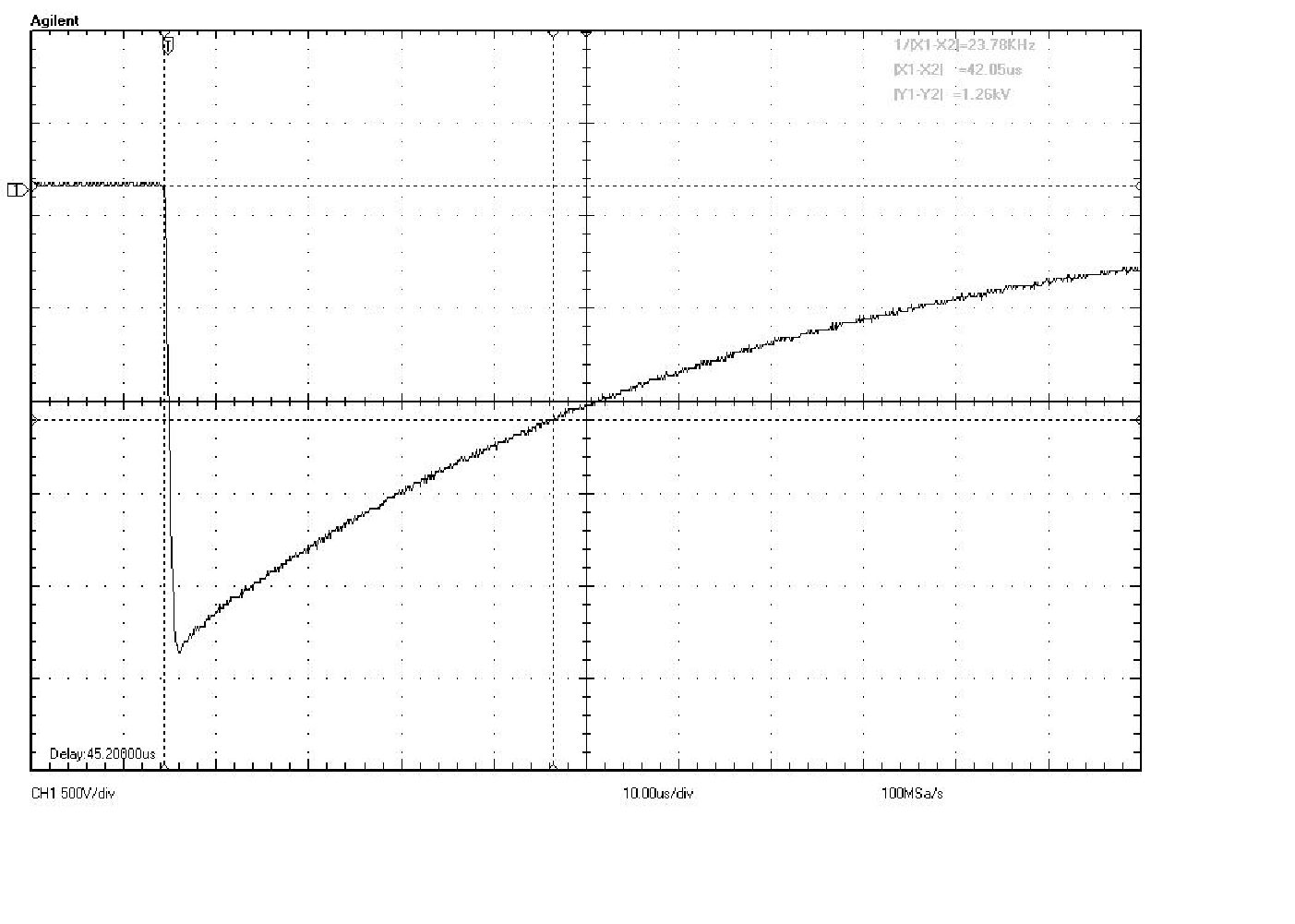

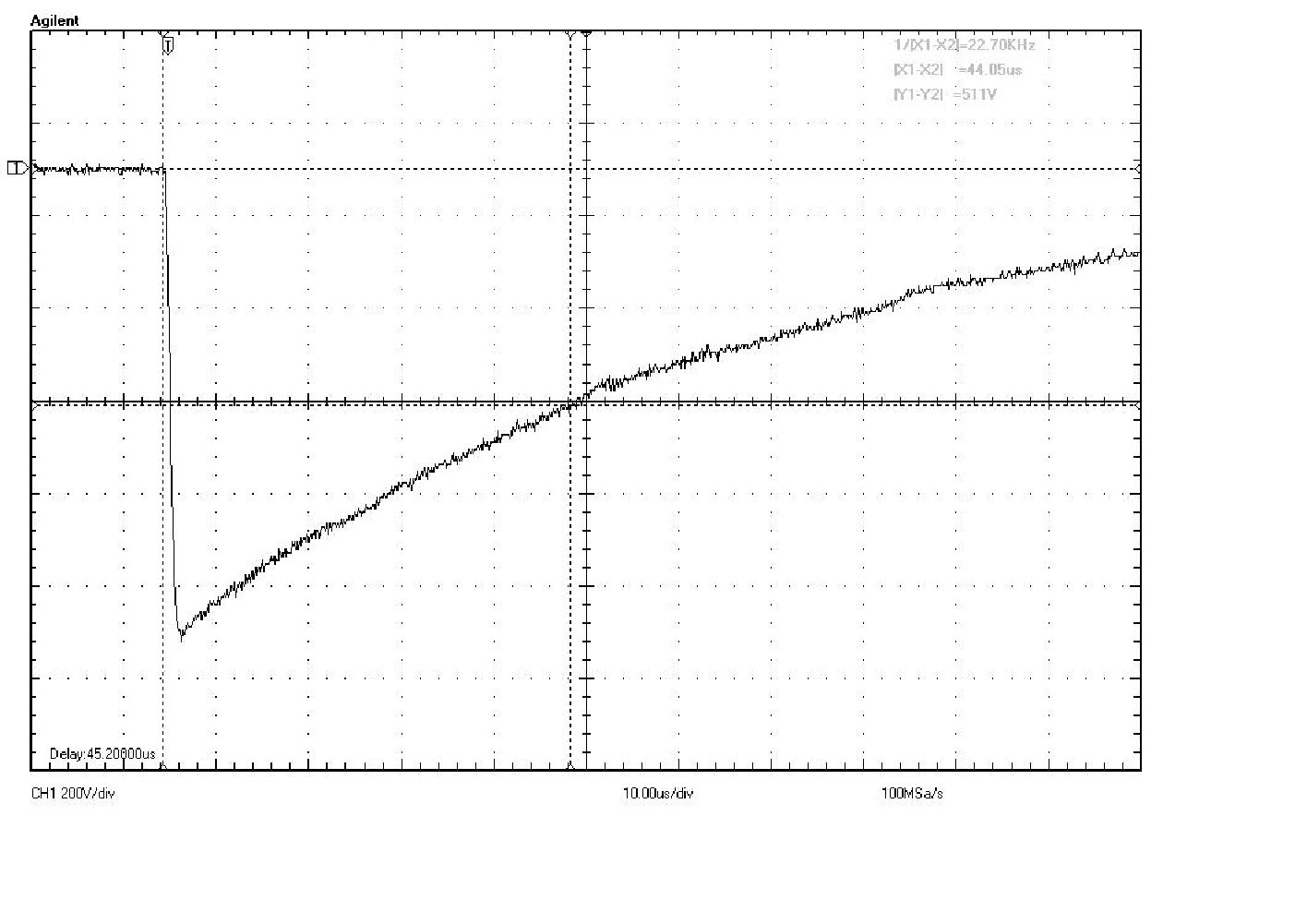

Open Circuit Duration Time: 50uS, ±20%.

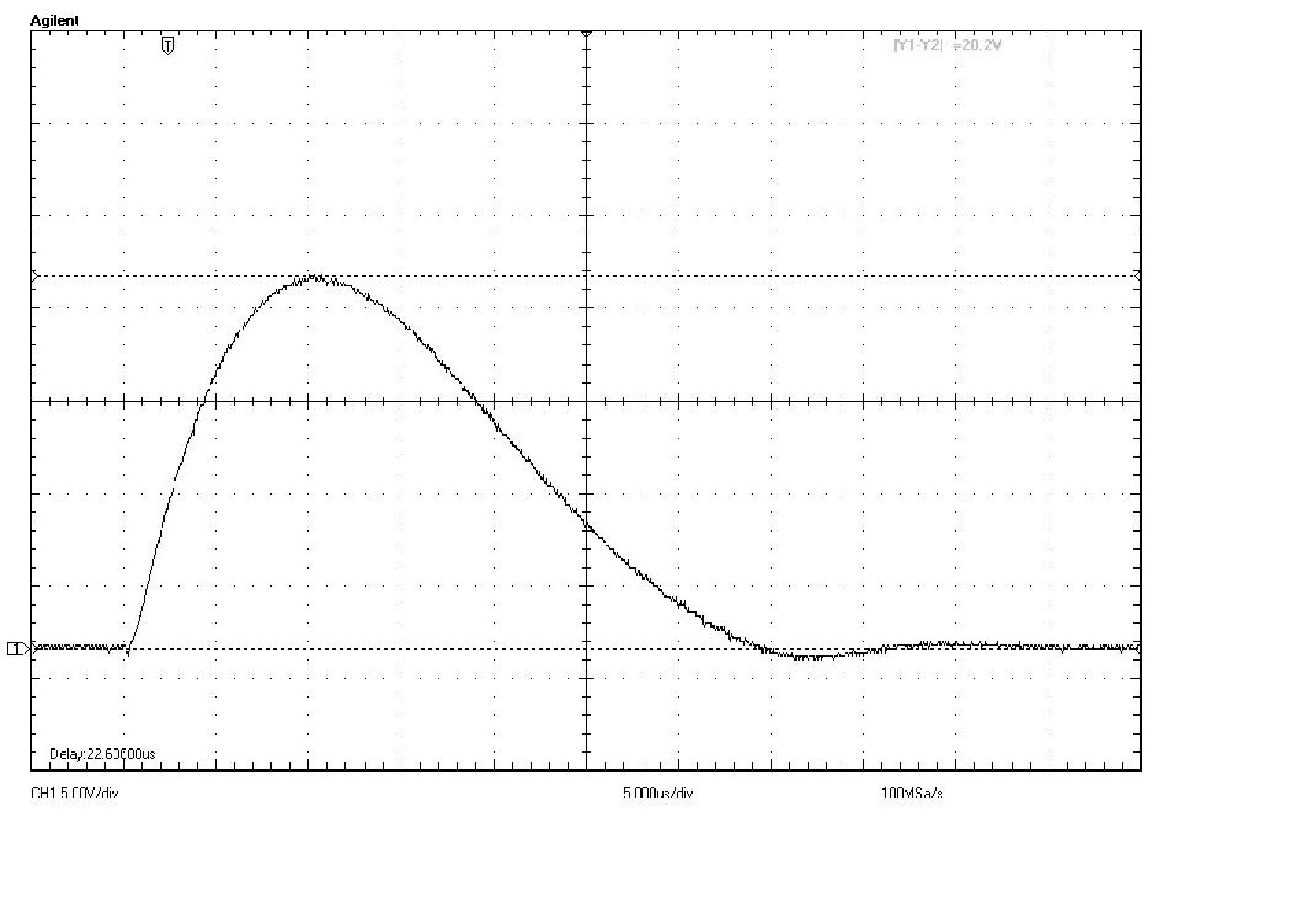

Short Peak Current: 208.33A @ 2500V, ±10%.
Shor Circuit Rise Time 8uS ±10% (Trise=1.25*(T90%-T10%).

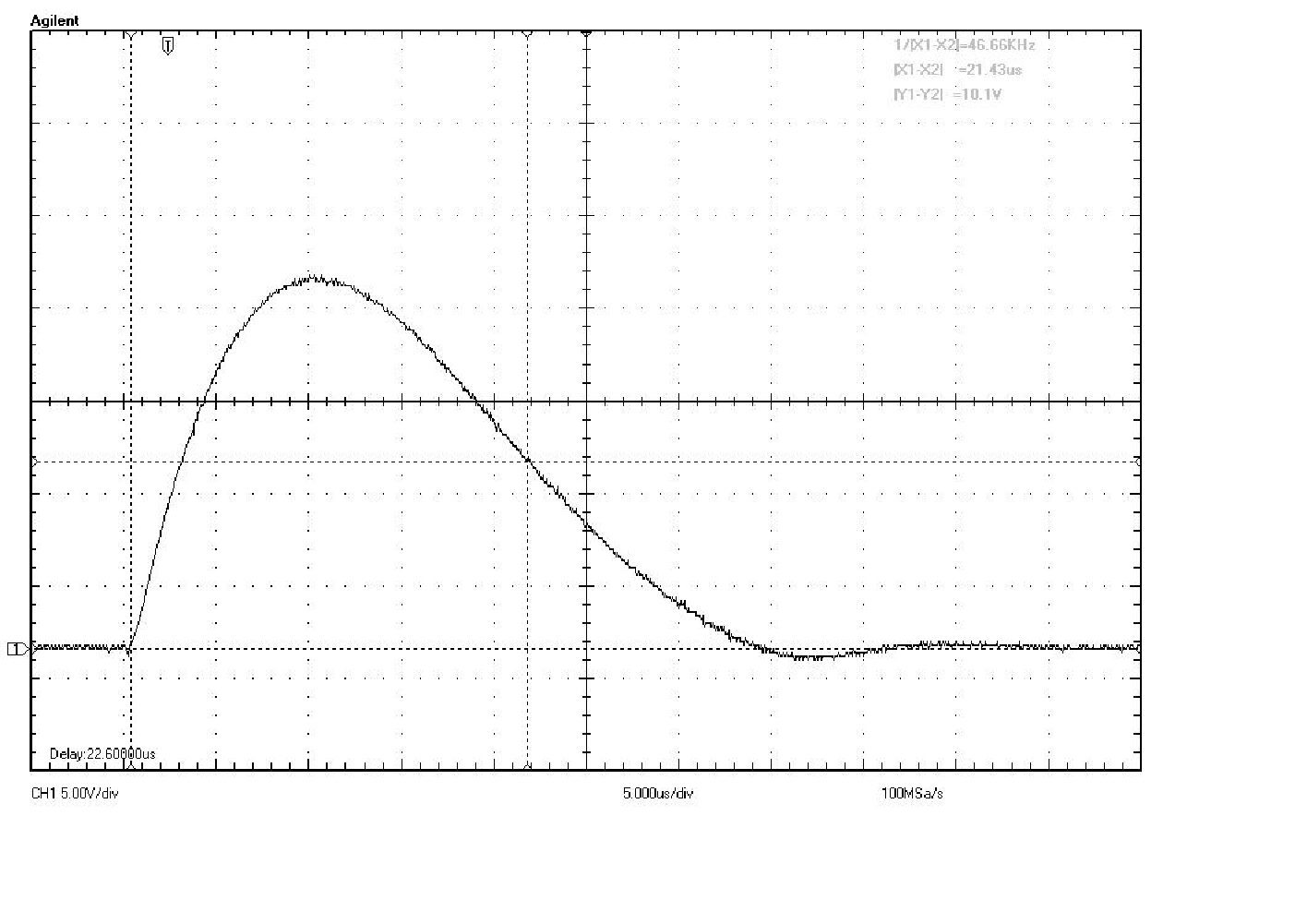

Short Circuit Duration Time: 20uS, ±10%.
Voltage Control: Manually, by turning a knob in the front panel or via USB.
Polarity Control: Positive and Negative. Alternating control available with USB.
Voltage Display: 4 Digit LED Display.
Voltage Meter resolution: 5V.
Voltage Meter Accuracy: ±1%.
Duty Cycle: 30s between pulses.

Line Voltage: 120V AC, 50/60Hz. Optional 230V AC ±10%, 50 Hz ±1 Hz (CE for EU).

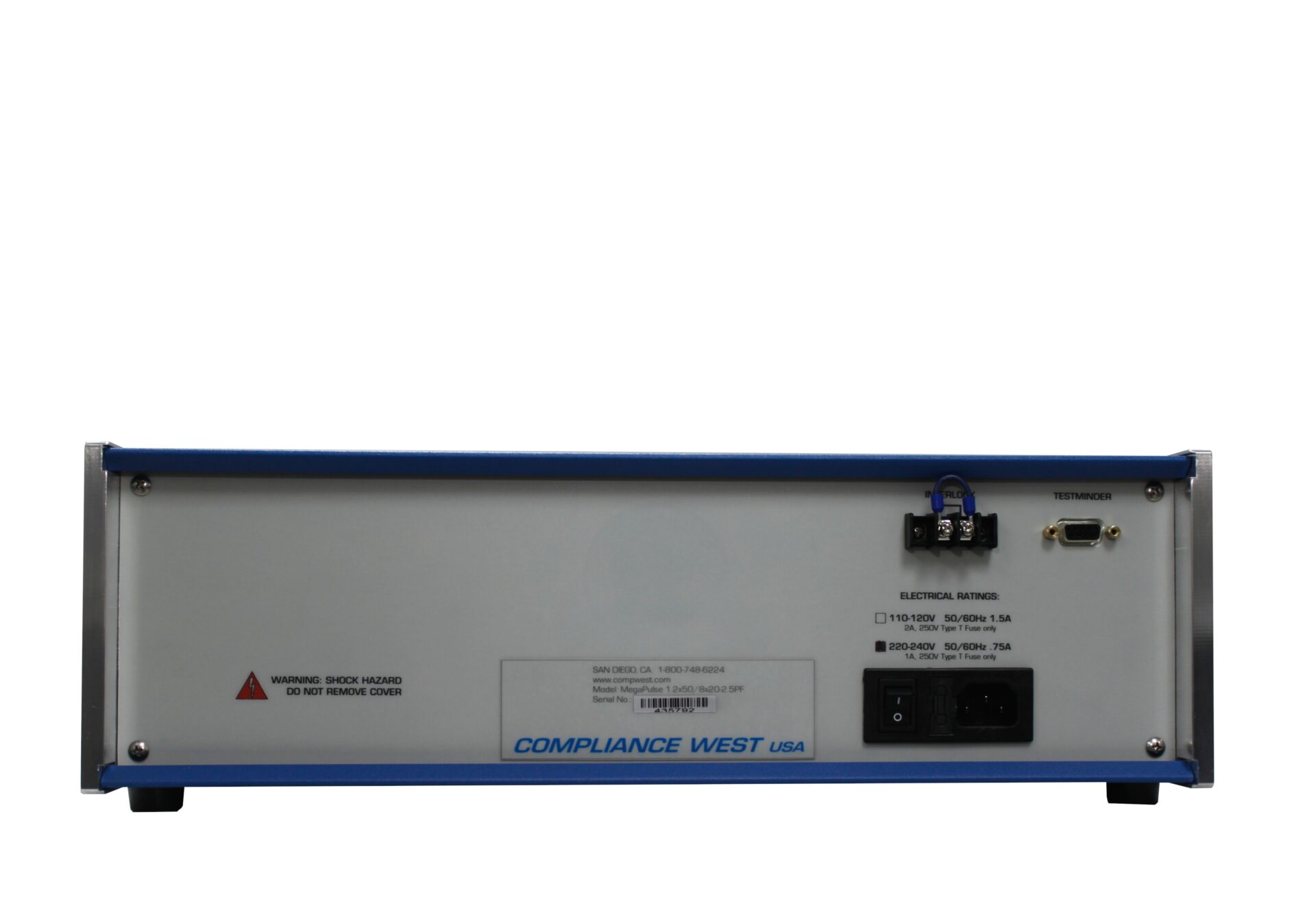

Safety Interlock 2-pin terminal block on rear panel; shorted for operation.

OUTPUT: High Voltage insulated rigid 4mm socket – Red.
RETURN: High Voltage insulated rigid 4mm socket – Black.

Inlet Module: Inlet module with fuse and power switch combination.
