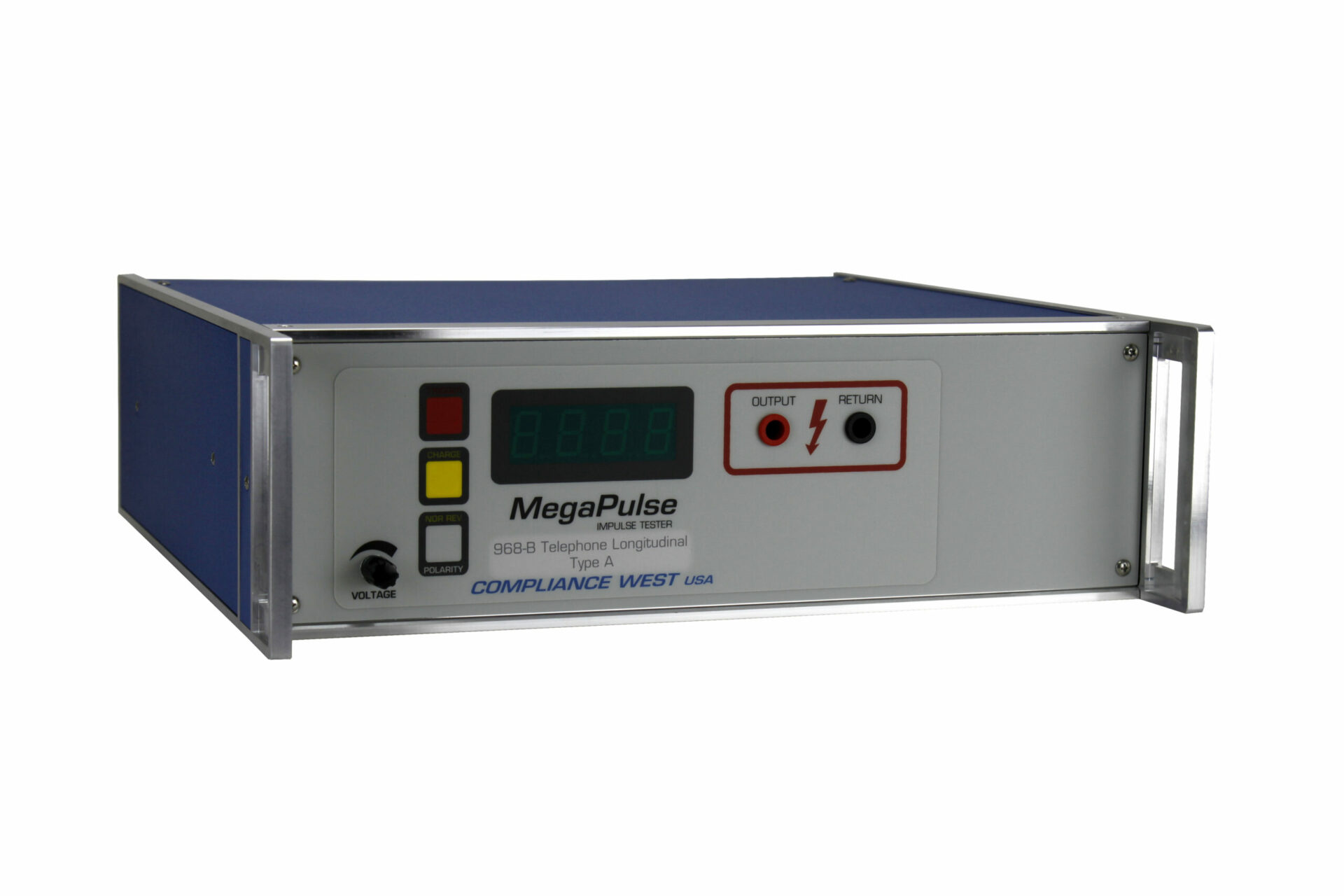

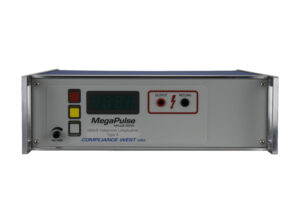

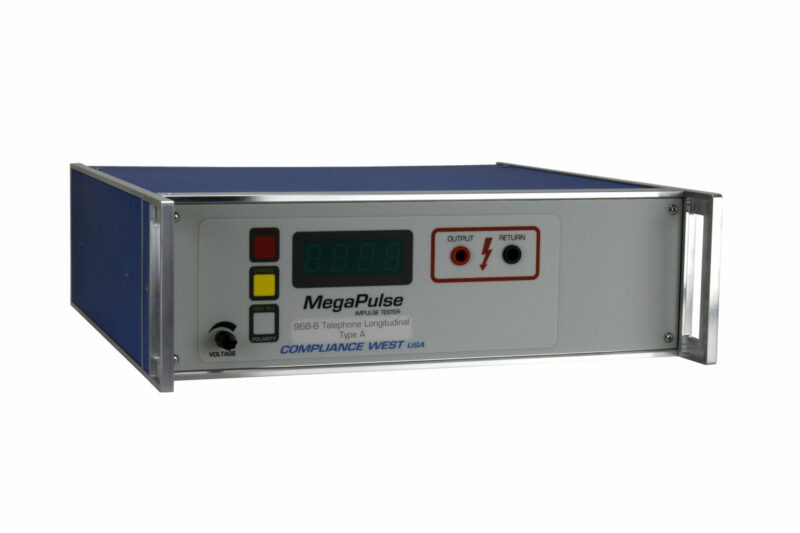

968-B Telephone
Longitudinal Type A:

SKU: 00-MP968-B TEL LONG A

1500V 7.5Ω 8x210uSec

$7,070.00

Mains Voltage (leave blank for 120V)

Options

968-B Telephone Longitudinal Type A 1500V 7.5Ω 8x210uSec
1500V 7.5Ω 8x210uSec $7,070.00

Designed & Built in the USA

  • 1-Year Warranty
  • 100% Secure Checkout
Guaranteed Safe Checkout

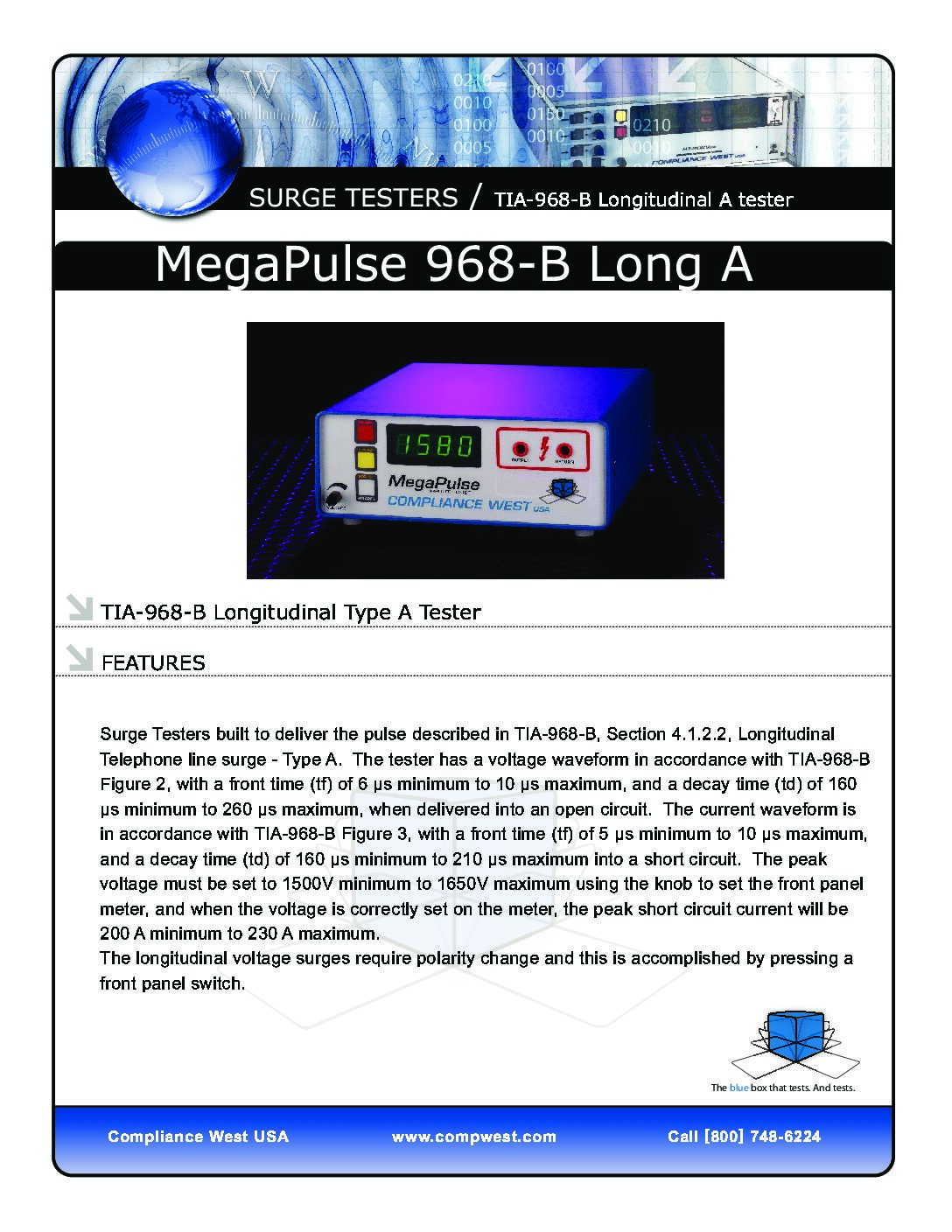

Designed to generate the surge test described in TIA-968-B, Section 4.1.2.2, Longitudinal Telephone line surge – Type A.  Peak voltage is 1500 volts minimum, peak short circuit current is 200A minimum. A switch is provided for reversal of output polarity. TestMinder P USB computer control optional.

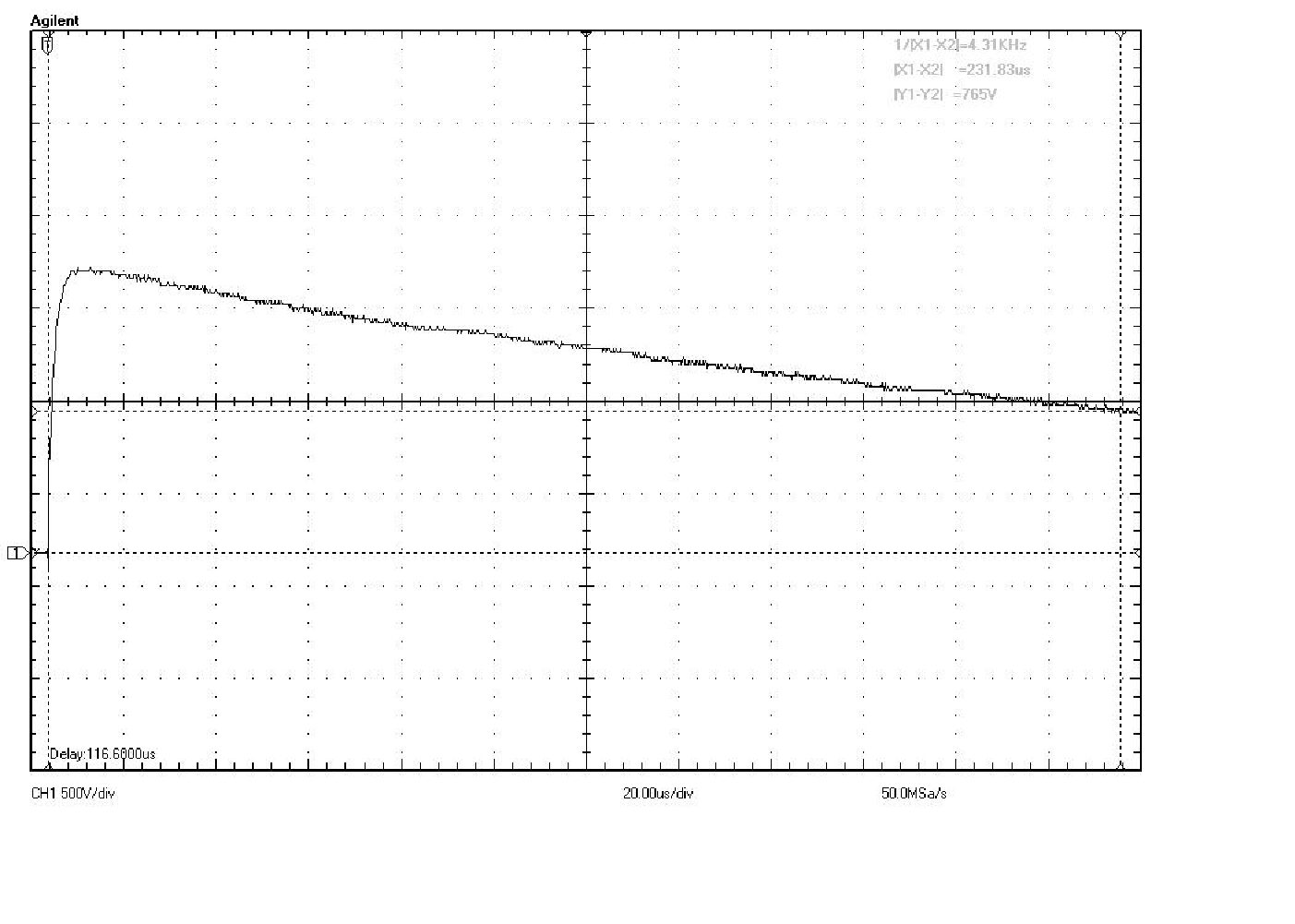

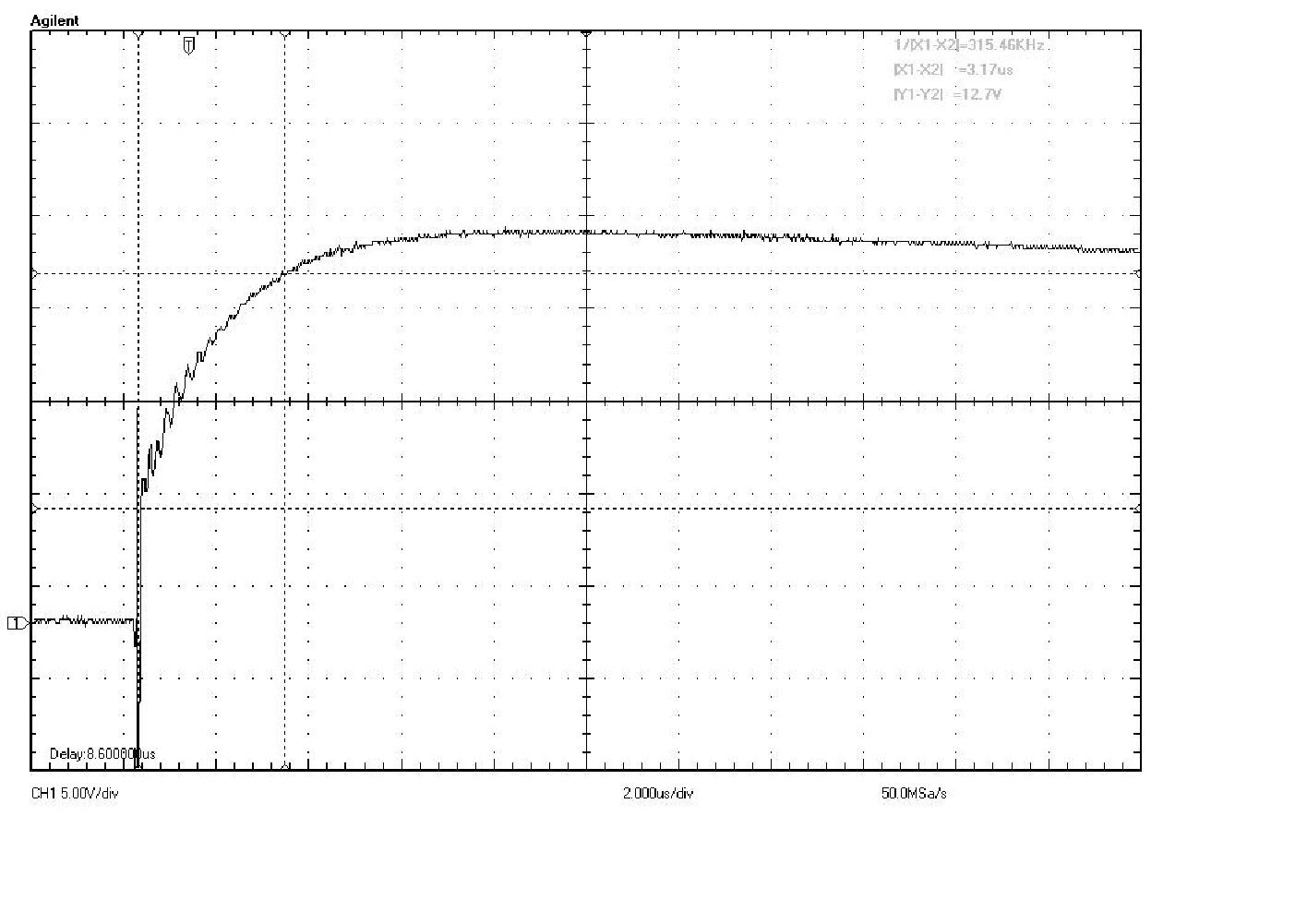

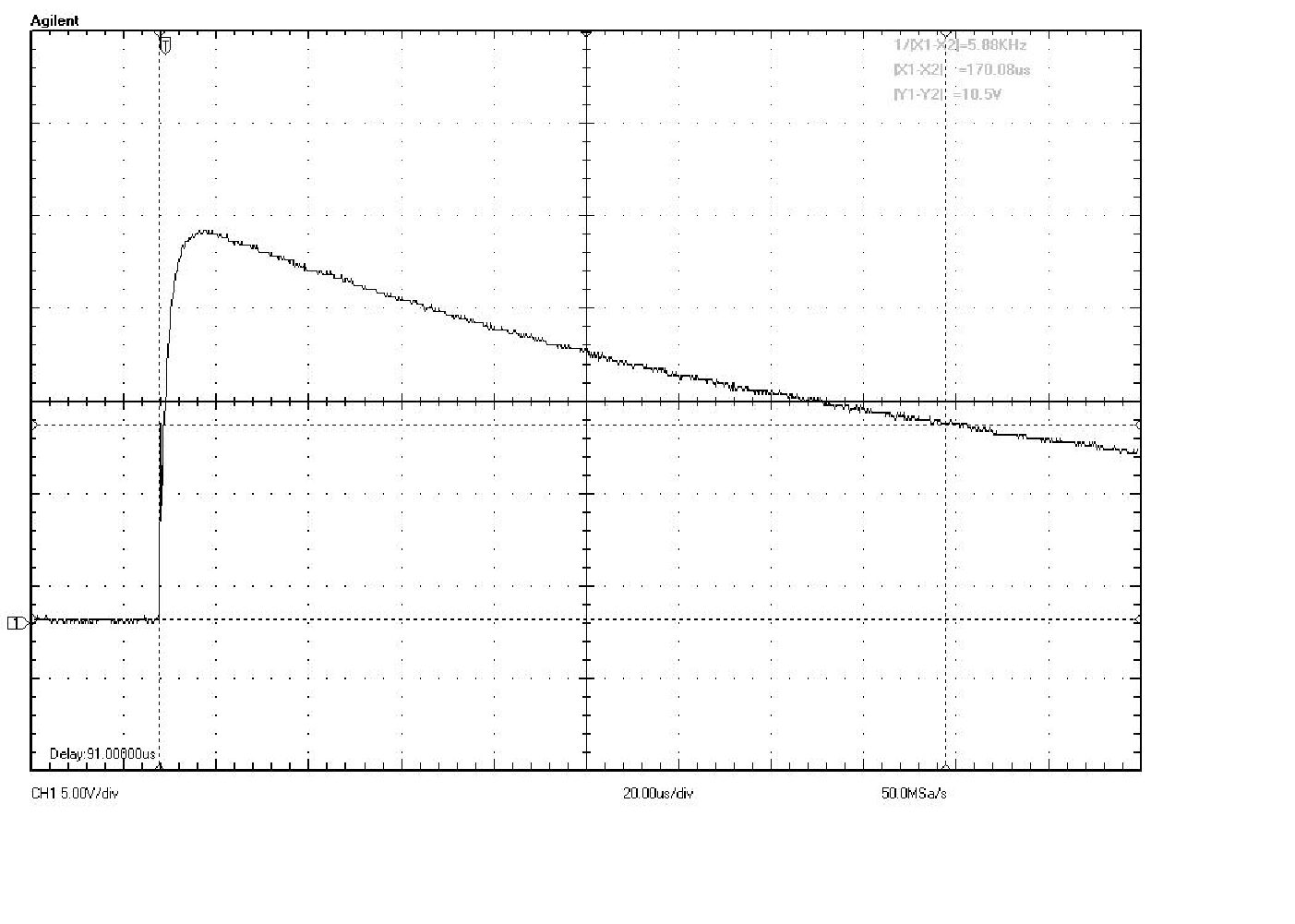

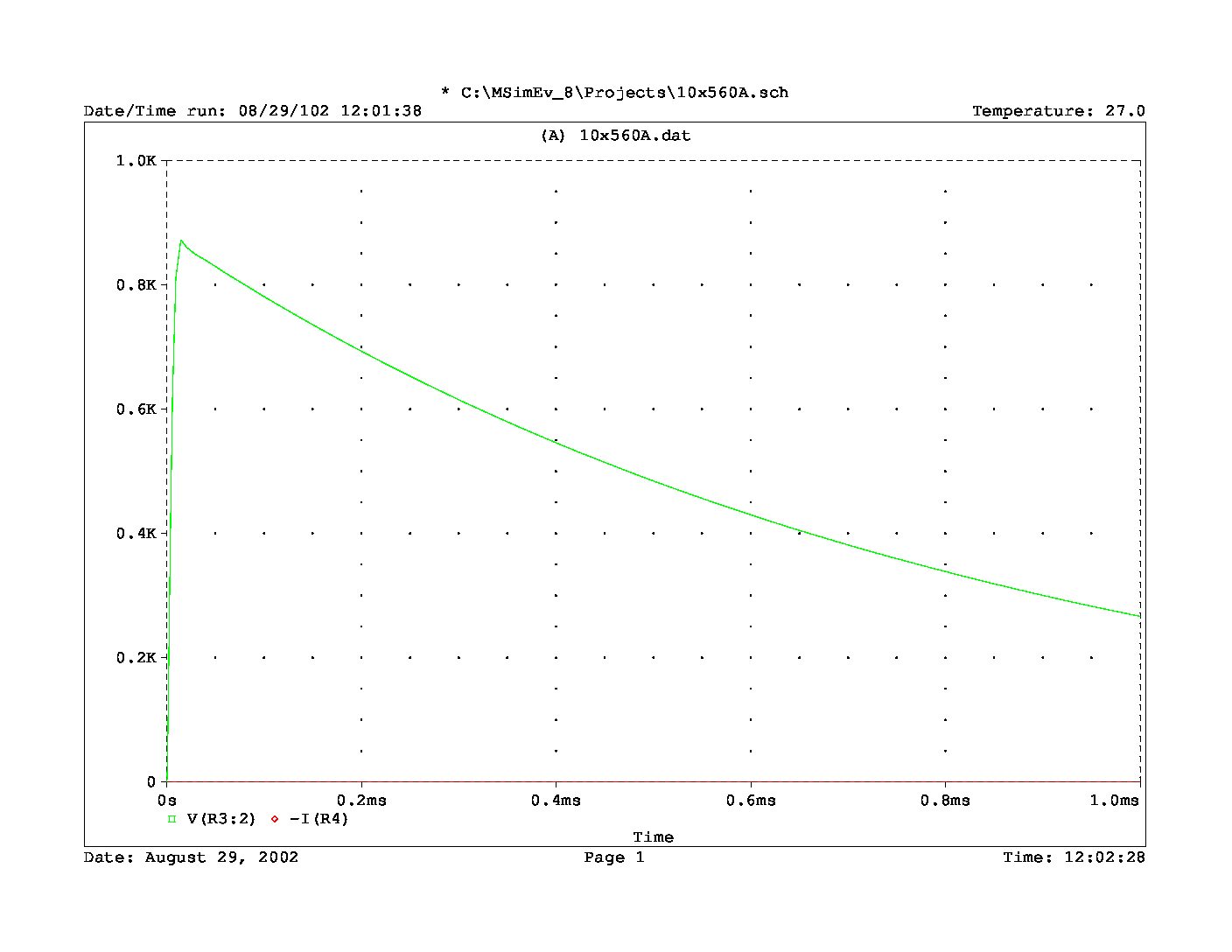

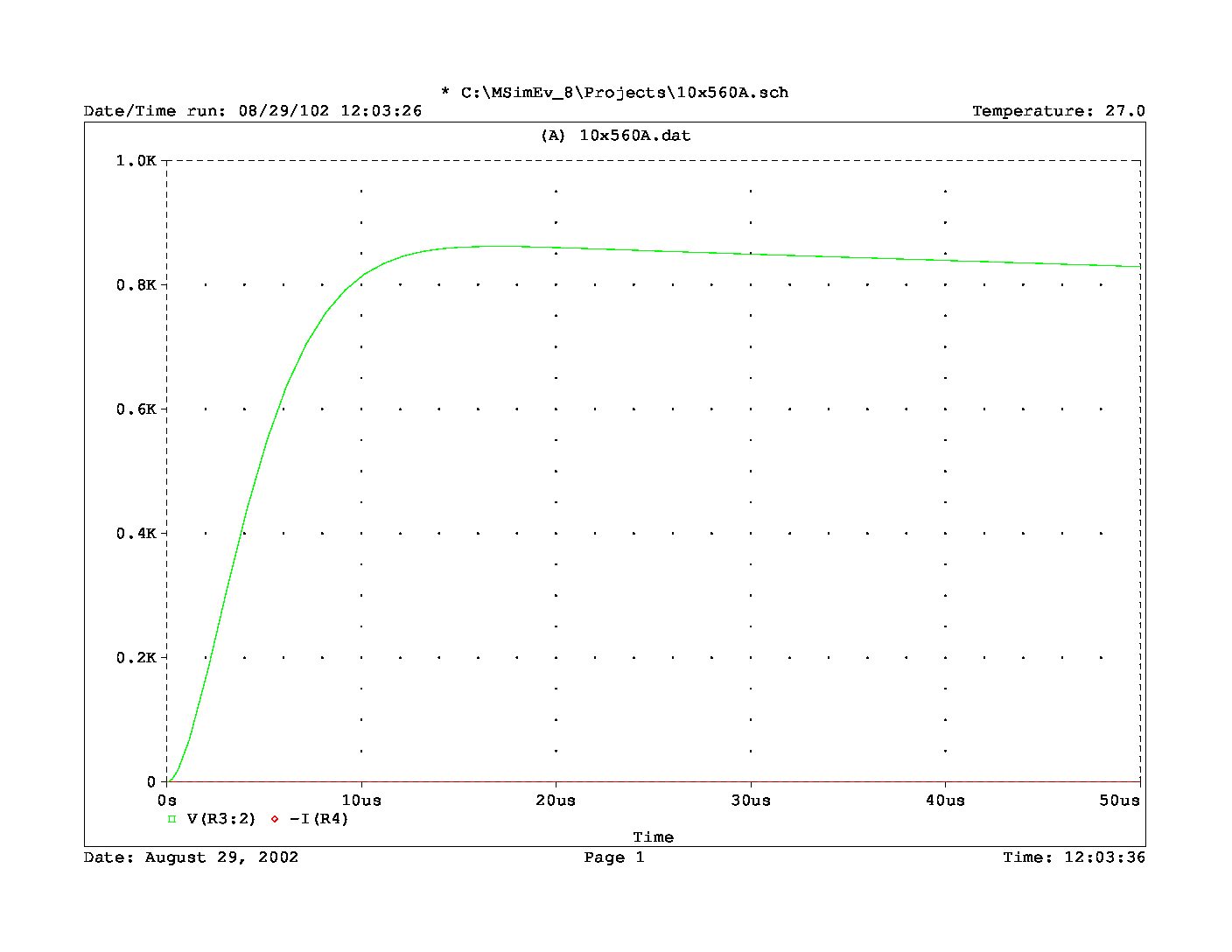

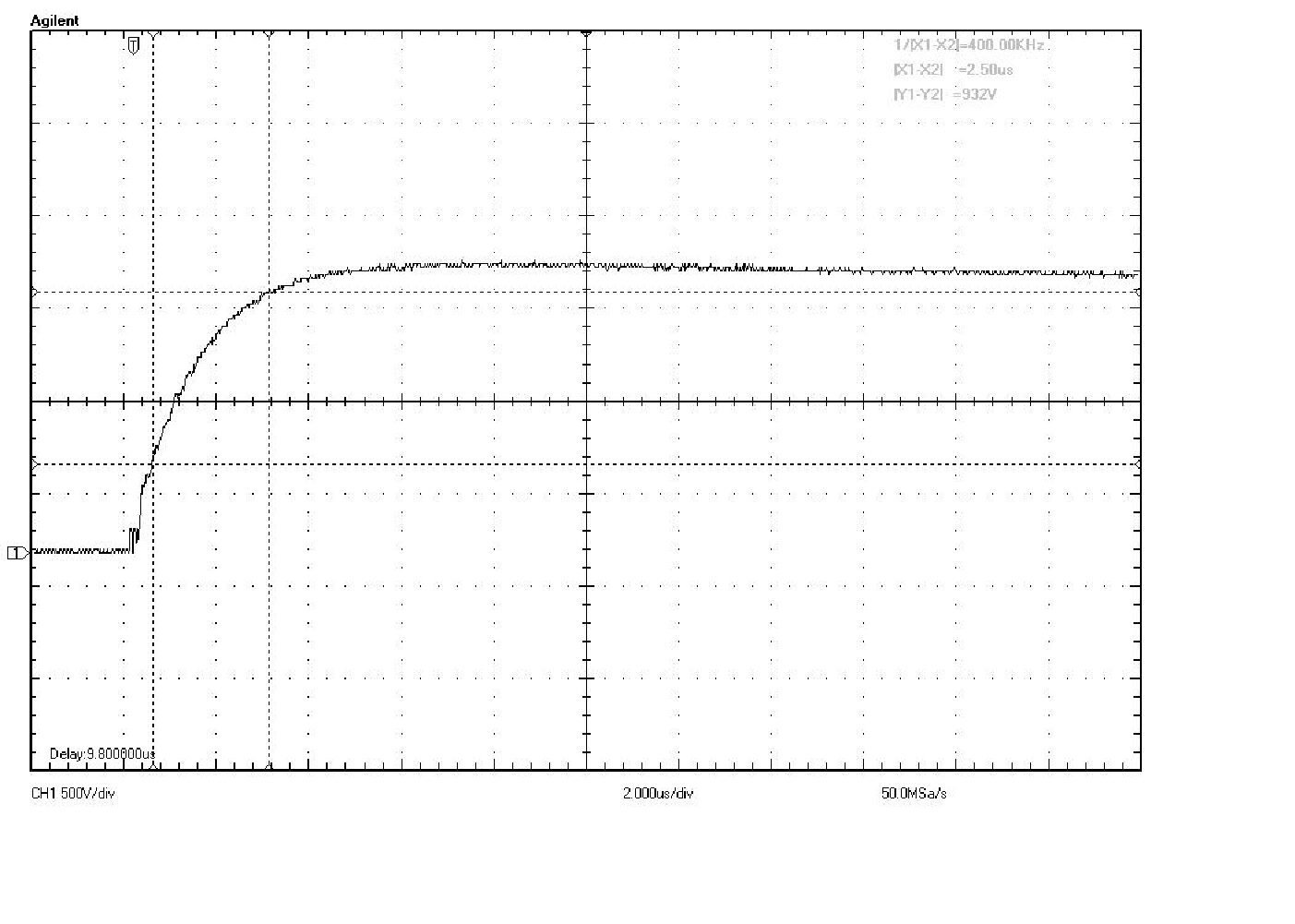

The waveform generated is 10×160/10×160, Vp=1500V. To test, the front panel voltage meter is set to 1500V.  Theoretical and actual waveforms are shown in the Manuals Section, below.
