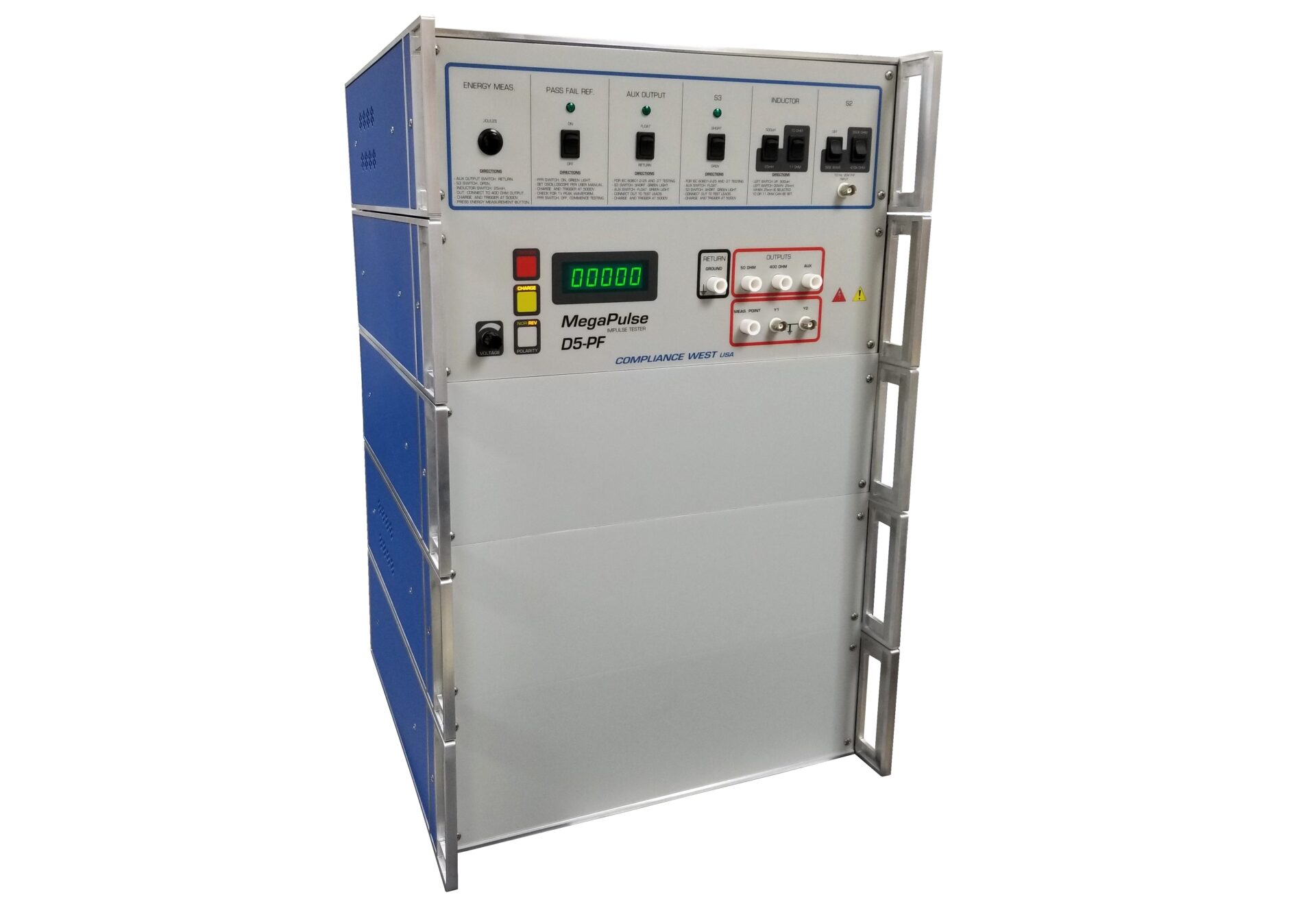

MegaPulse D5-PF-001:

SKU: 00-MPD5-PF-001

Defib-proof and Energy Reduction Tester 10KV

Call for Price

Designed & Built in the USA

  • 1-Year Warranty
  • 100% Secure Checkout
Guaranteed Safe Checkout

The most advanced medical surge tester available, the D5-PF is built to provide defib-proof testing to the requirements of:

  • IEC 60601-1:2005 (Issue 3) Figure 9 and 10 Defib-proof Differential- and Common-Mode Test  (IEC 60601-1 Figure 50 in older versions).
  • IEC 60601-1:2006 Figure 11 Energy Reduction Test;
  • IEC 60601-2-4: 2010 Figure 201.110 Overload Test (optional)
  • IEC 60601-2-34 Issue 2 (optional);
  • IEC 60601-2-34 Issue 3 (included);
  • IEC 60601-2-49;
  • EC-13;
  • EC-53;
  • IEC 60601-2-25:2011;
  • IEC 60601-2-27:2011.

This is an IEC 60601 Defibrillation-proof tester.  For the Energy Reduction test, joules consumed in the 100Ω resistor are immediately displayed after each pulse. The MegaPulse D5-PF tests protection against the effects of defibrillation (Common Mode, Differential Mode) and Energy reduction test (EC-13) and as noted in the Standards shown above. The MegaPulse D5-PF outputs a 360J Defib-proof test pulse per IEC 60601-1 for the Energy Reduction Test.  It can also be used as a Defibrillator Lead Tester.
