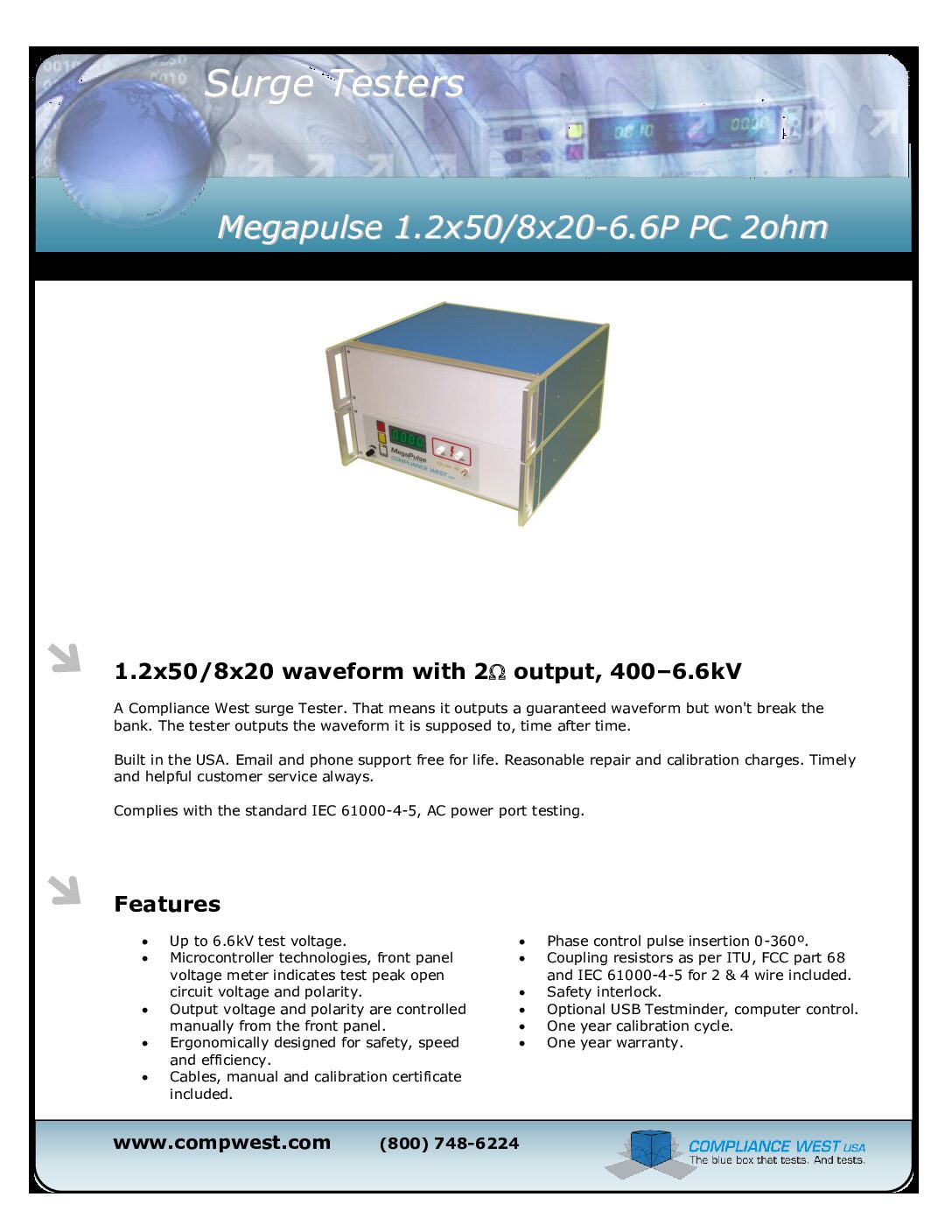

MegaPulse Combo Tester, 6.6kV 2Ω, phase control:


Surge Tester 1.2×50/8×20-6.6P PC 2Ω

Call for Price

Designed & Built in the USA

  • 1-Year Warranty
  • 100% Secure Checkout
Guaranteed Safe Checkout

Combination Tester, 6.6kV, 3.3kA, 2Ω.  Manual voltage and polarity control, optionally controlled by TestMinder on 32-bit Windows computer.  Phase Control:  Pulse can be inserted 0-360° on mains waveform.  (Powered testing requires CDN, not included).  Powered testing complies with the requirements of IEC 61000-4-5.  Coupling resistors for ITU-T, FCC and IEC 61000-4-5 are included.  20 second duty cycle.  Safety Interlock included.  One year calibration cycle, ANSI Z540 Calibration Certificate and calibration waveforms included, A2LA Calibration Certificate available.  One year warranty.
