MegaPulse Up to 12,300V peak, 500Ω, to IEC 60060-1 and others; n:

SKU: 00-MP1.2x50-12.3P-1 500ohm

Surge Tester 1.2×50-12.3P-1 500 ohm

Call for Price

Designed & Built in the USA

  • 1-Year Warranty
  • 100% Secure Checkout
Guaranteed Safe Checkout

MegaPulse 1.2×50-12.3P-1 500 ohm, EN 62052-11 Para. 7.3.2, 12.3kV 500 ohms.

This tester is built to the requirements of IEC 60060-1 with a 500 ohm impedance. For Standards such as EN 62052-11, Clause 7.3.2 and VDE PM323E, this tester allows impulse testing to determine spacings in lieu of other requirements. This tester can perform to test parameters requiring surge voltages of up to 12kV. The MegaPulse 1.2×50-12.3 500 ohm is built specifically to conduct these tests. It uses our proprietary High Voltage relay, built to the requirements of IEC 65 Figure 7 b for robustness and complete compliance with the requirements.

In addition, for automated testing, the MegaPulse 1.2×50-12.3 500 ohm is available with TestMinder P, our computer control and test reporting option.

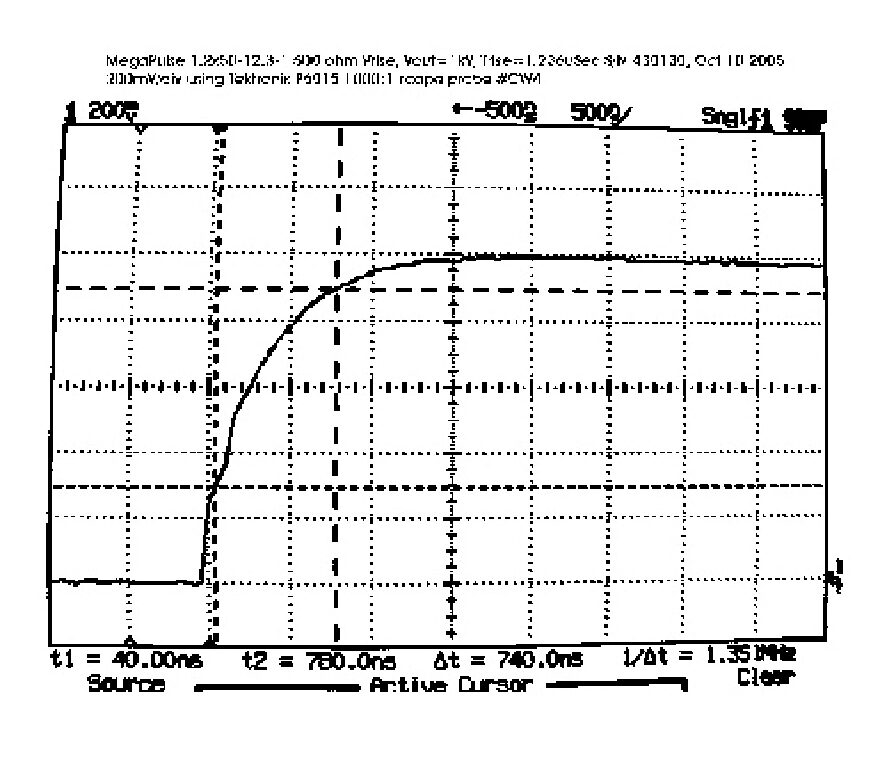

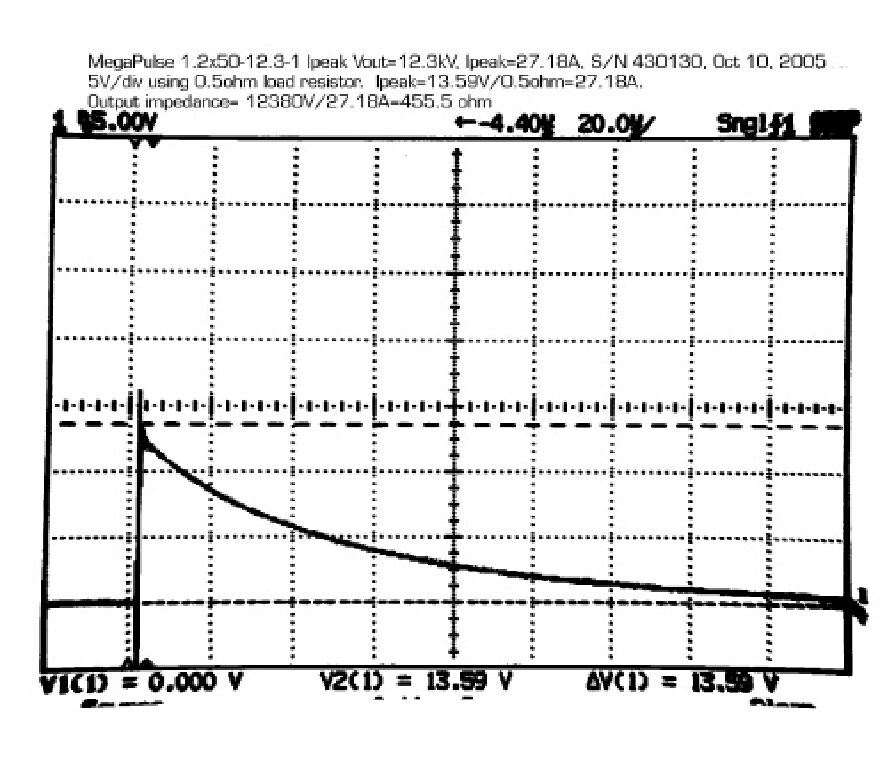

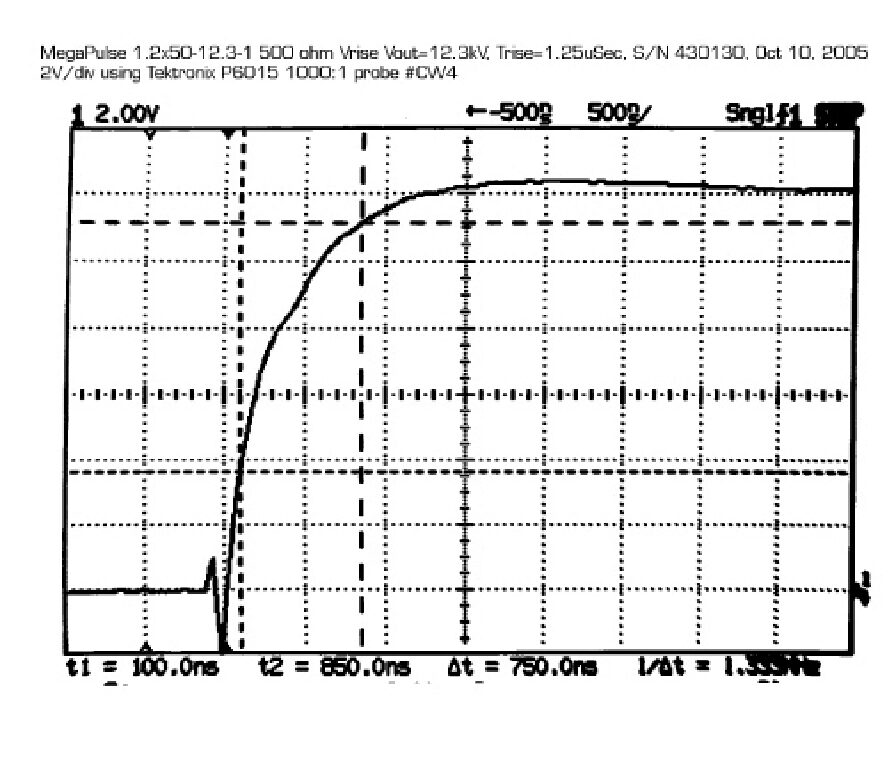

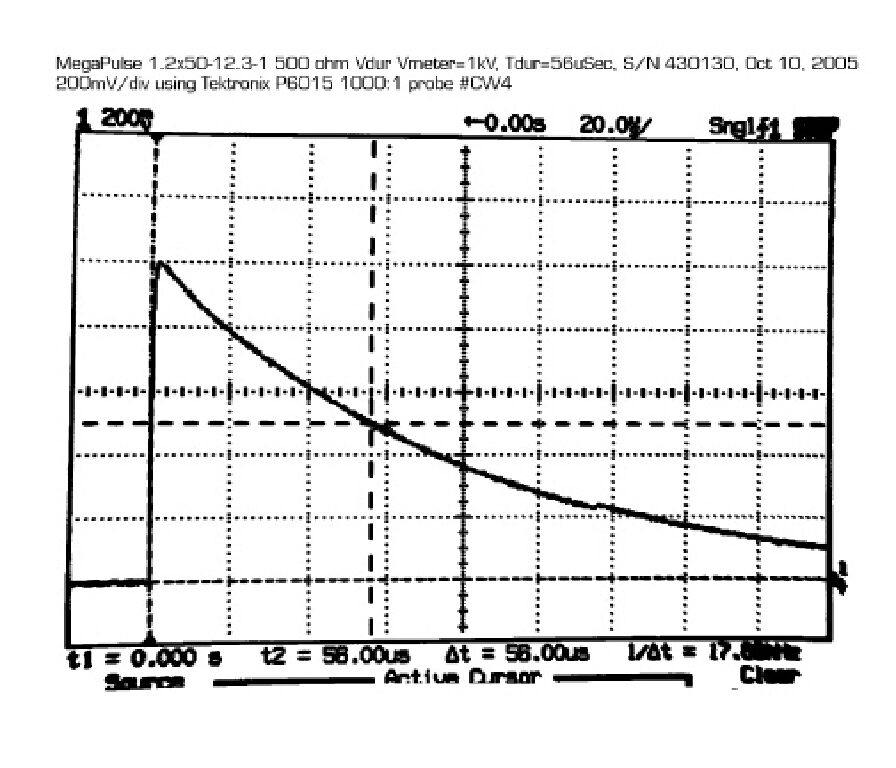

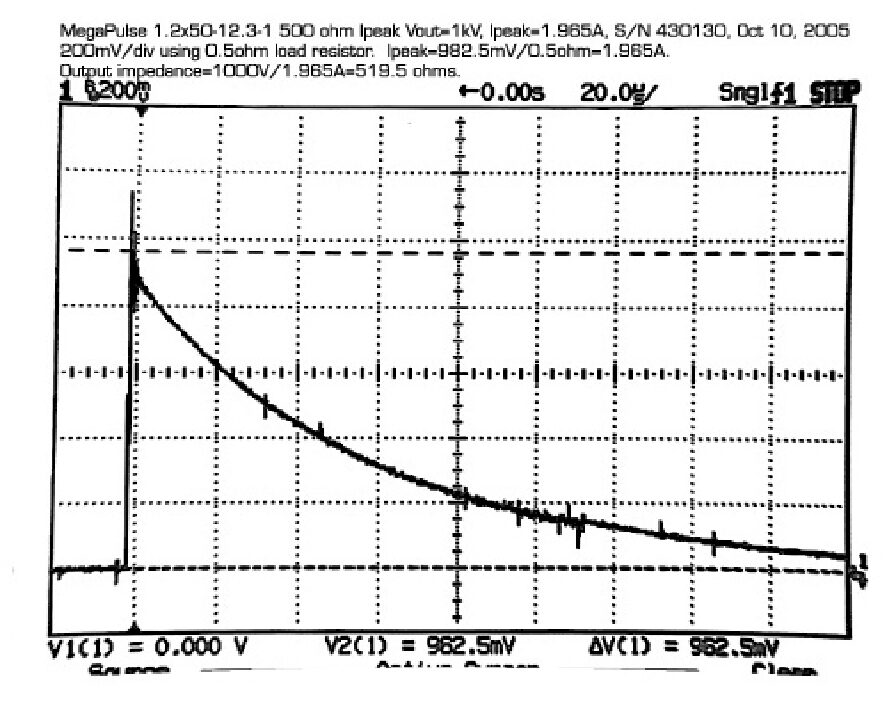

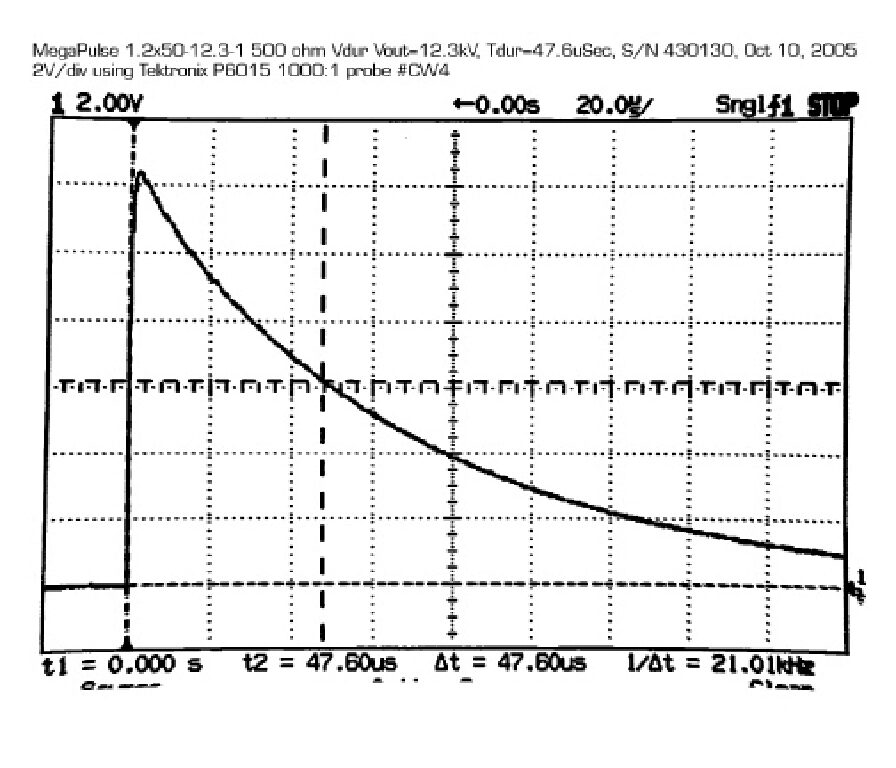

The MegaPulse is used with a general purpose oscilloscope for waveform capture and evaluation.  Please see waveforms in Manuals section, below.

The standard configuration outputs 12.3kV at 0.5J.  Can optionally be configured with three additional 0.5J voltage points at 1500, 6000 and 8000 volts.
