MegaPulse 10x700-7PF 39:

SKU: 00-MP10x700-7PF 39

Surge Tester
10×700 Voltage Waveform
2000-7000V

$7,520.00

Mains Voltage (leave blank for 120V)

Options

Surge Tester <br />10x700 Voltage Waveform <br />2000-7000V $7,520.00

Designed & Built in the USA

  • 1-Year Warranty
  • 100% Secure Checkout
Guaranteed Safe Checkout

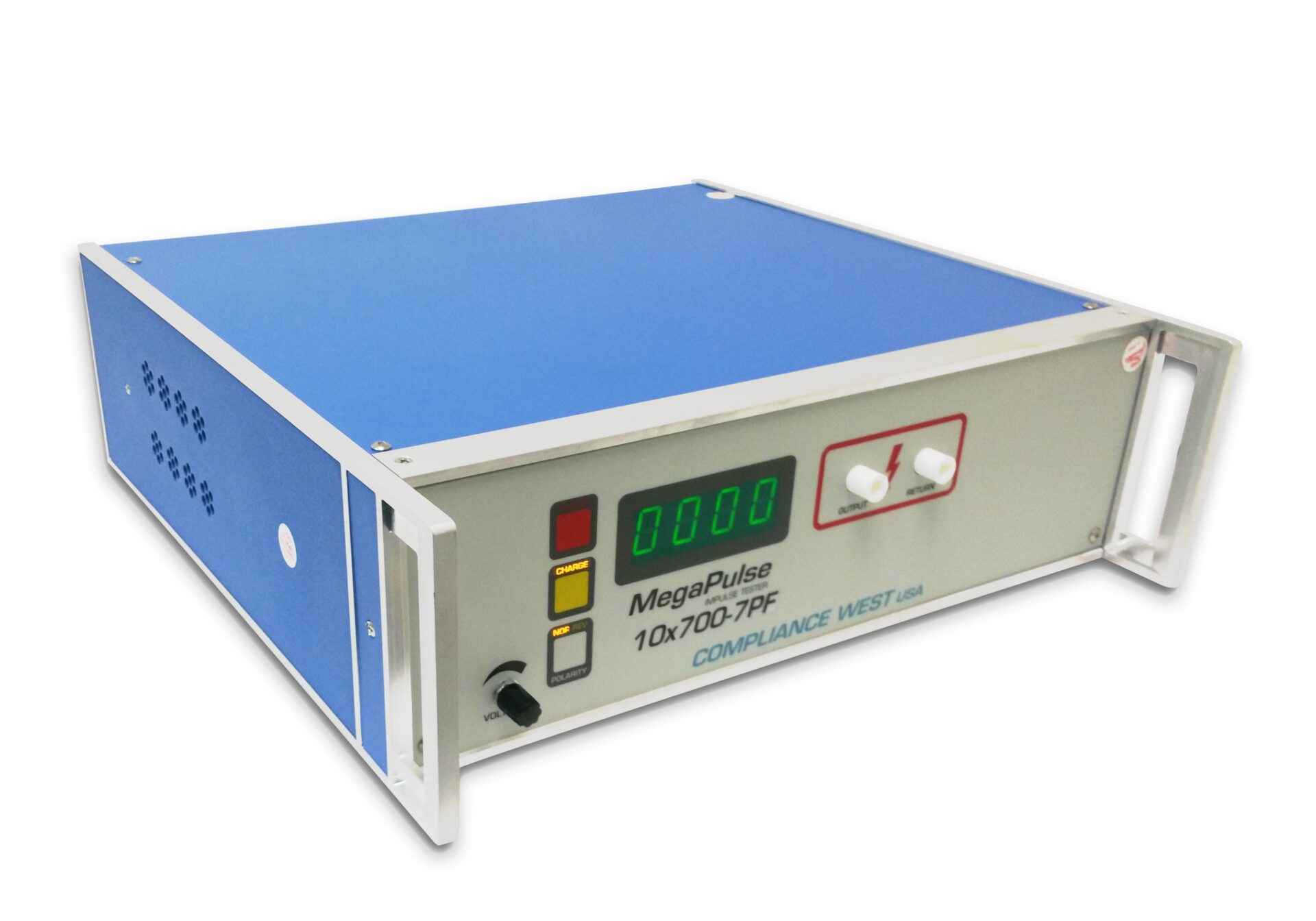

MegaPulse 10×700-7PF, bulk cap voltages of 2000-7000V, 10x700uSec Voltage Waveform, 40 ohm 1 chnl. Designed specifically for testing to IEC 60950 and IEC 62368-1, including the Australian Deviation.  Includes self-regulating high-voltage power supply for more stable voltage control.

Optional TestMinder PF computer control and 1000:1 Oscilloscope output (reference only).  Option IER equips the tester with a switch compliant with IEC 60065, Fig. 7B.

In accordance with the requirements of IEC 60950, IEC 62368-1 and ITU-T Standards, the meter reads the bulk capacitor voltage.  The output voltage will be less (see Datasheet).  Reference Waveform data in the manuals.

Calibrated at bulk cap voltages of 1000-7000V to reflect the test points of IEC 60950, IEC 62368-1 and the Australian Deviation. ISO 17025 calibration available.

Features

• Up to 7KV test voltage on bulk cap.
• Optional BNC 1000:1 monitoring output.
• Digital output voltage knob on the front panel.
• Integrated High Voltage on hold circuit.
• External interlock disables HV output and defeats test when circuit is open.
• Ergonomically designed for safety, speed, and efficiency.
• Front panel indicates internal HV and polarity.
• Polarity button selector on the front panel.
• Microcontroller technologies.
• Optional USB TestMinder, computer control.
• Leads, manual and calibration certificate included.
• One year calibration cycle
• One year warranty.

Specifications

TESTING CIRCUITRY

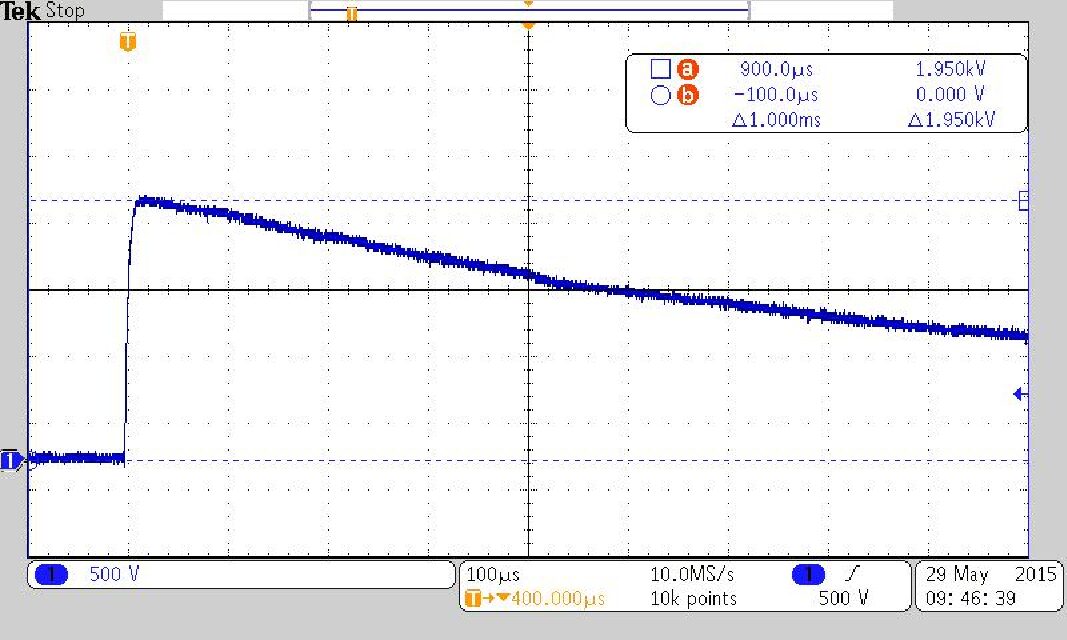

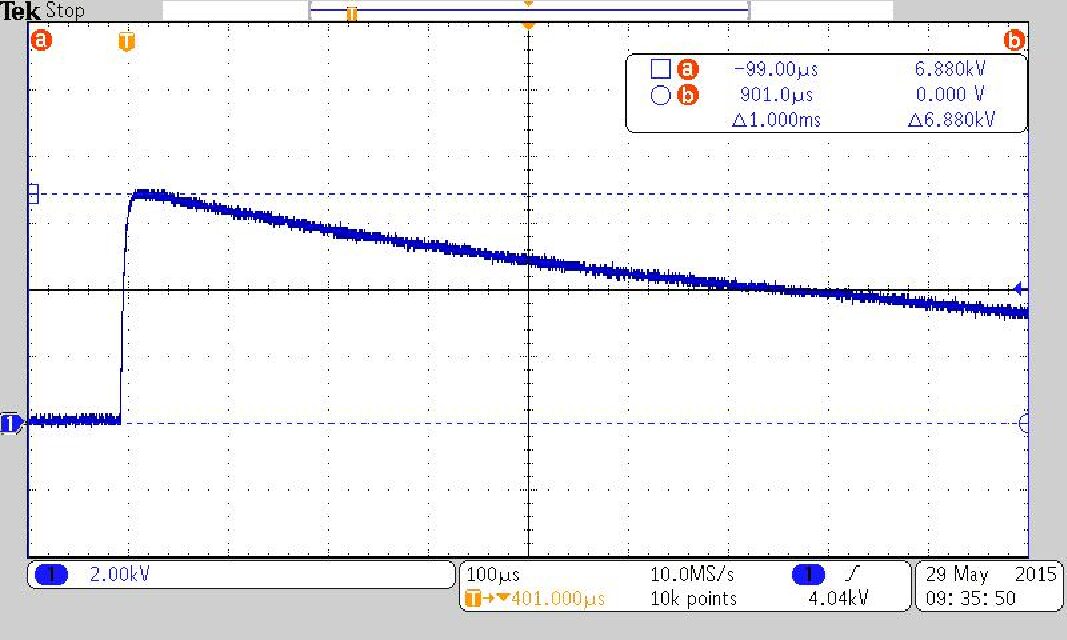

Output Peak Voltage at 7KV: 6838 ±3%.

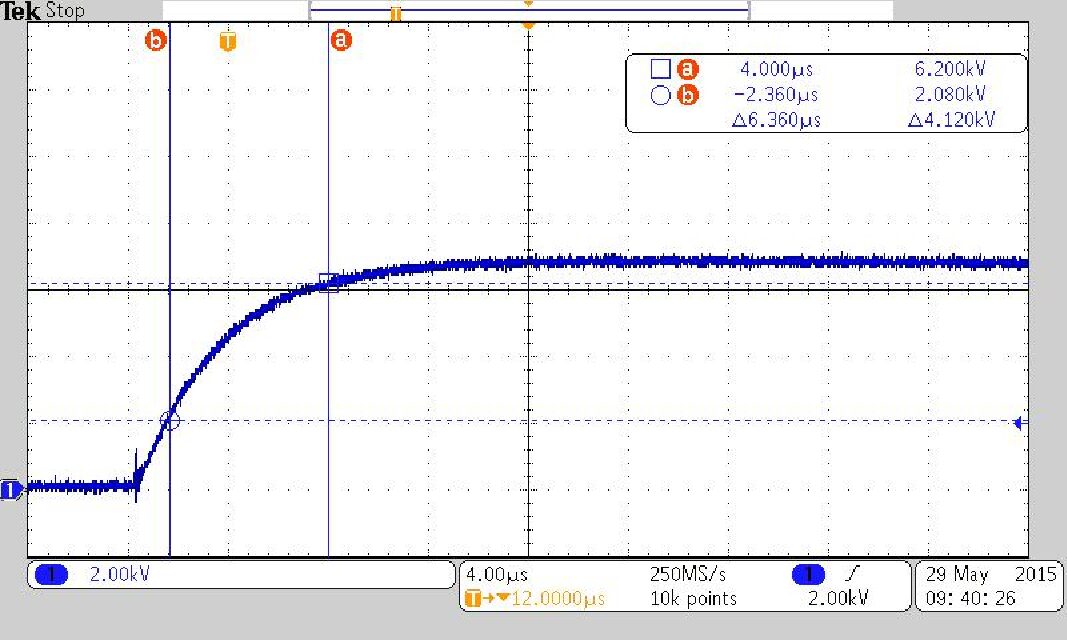

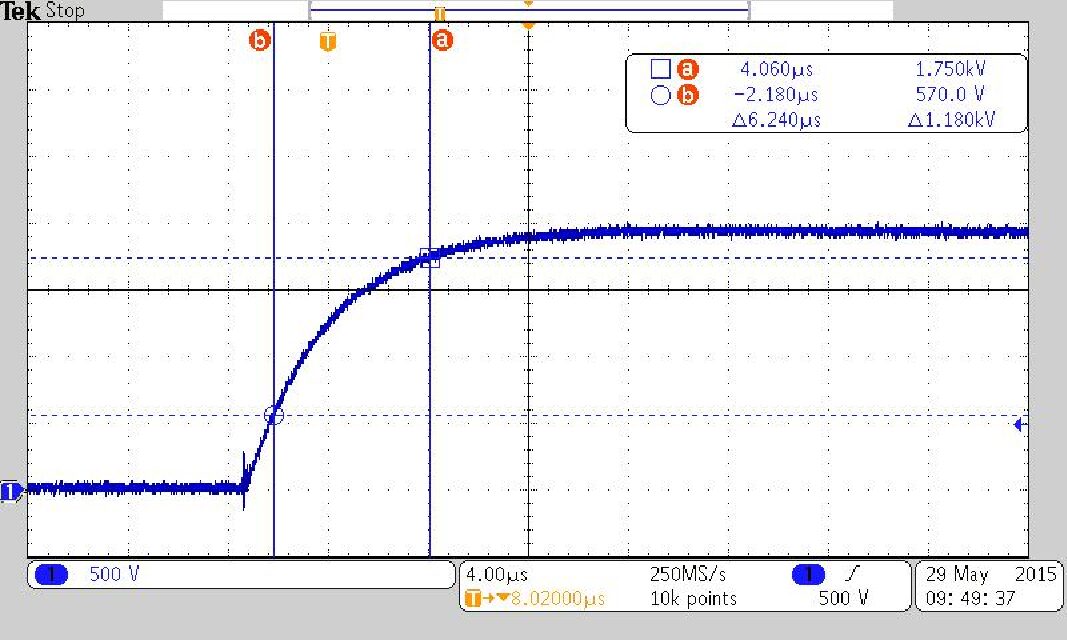

Open Circuit Rise Time: 9.13uS ±30% [Trise=1.67(T90%-T30%)] per IEC 1180.
Virtual Impedance: 40Ω.

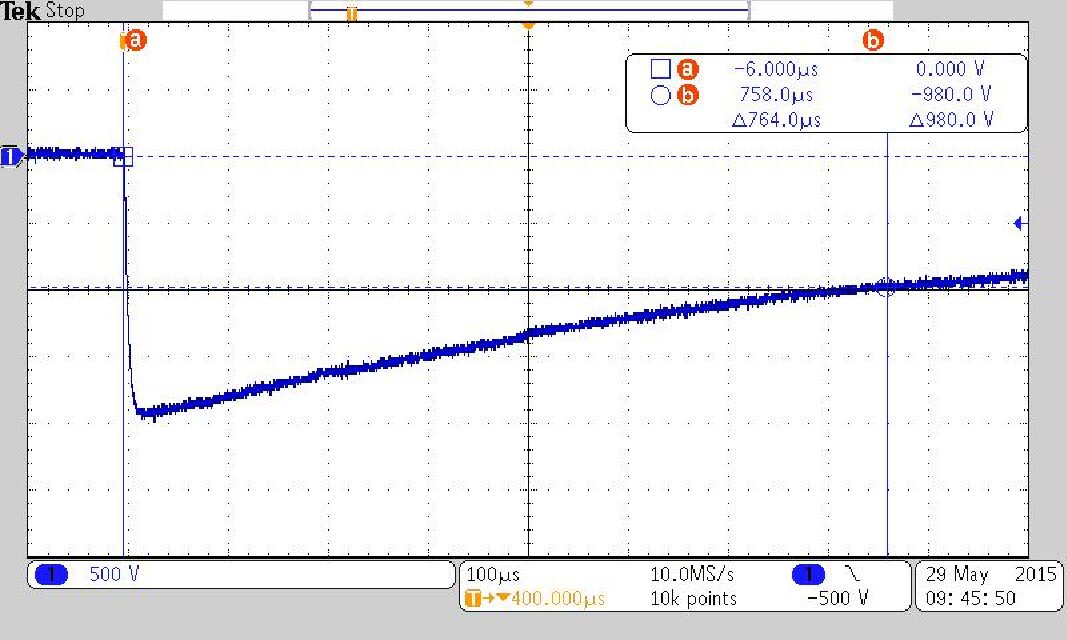

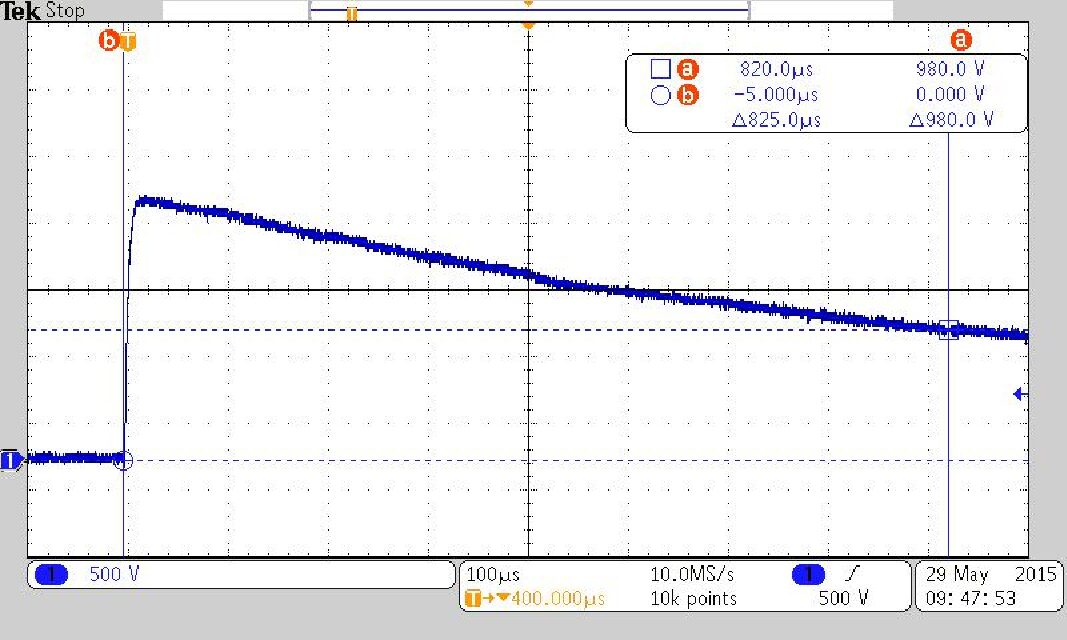

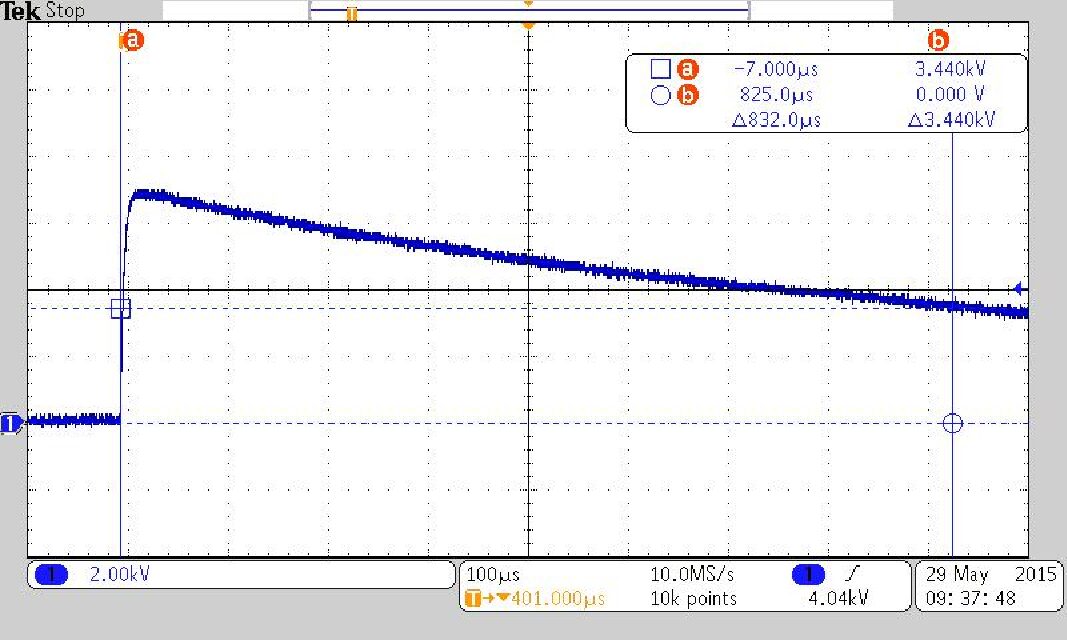

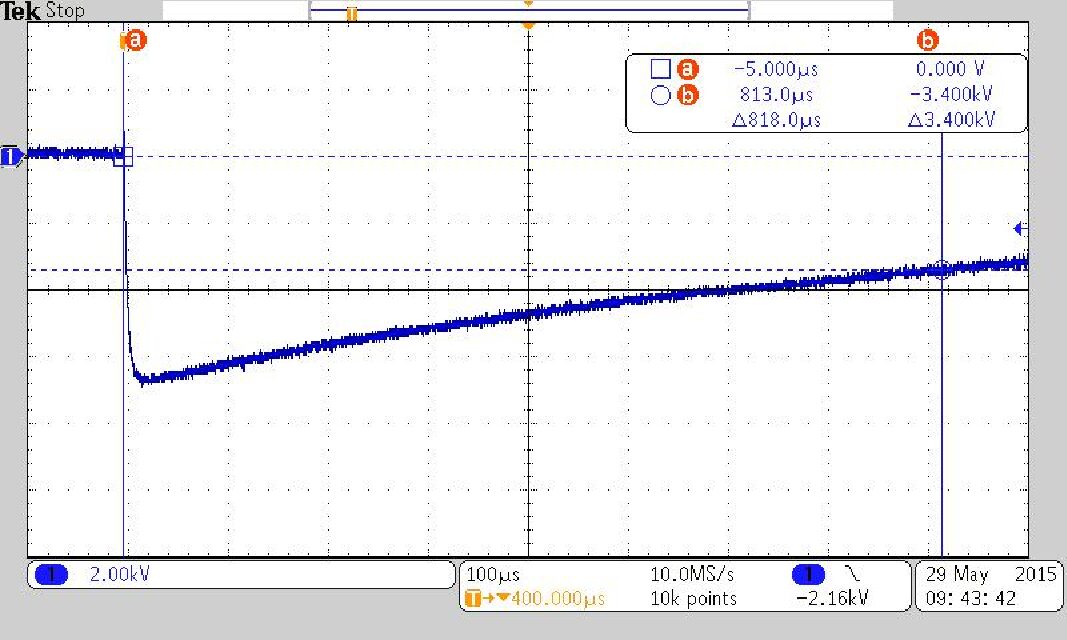

Open Circuit Duration Time: 716uS ±20% (Time to half-value) per IEC 1180
Current Waveform: Not Defined.
Voltage Control: Manually, by turning a knob in the front panel or via USB.
Polarity Control: Positive and Negative. Alternating control available with USB.
Voltage Display: 4 Digit LED Display.
Voltage Meter resolution: 5V.
Voltage Meter Accuracy: ±1%.
Charge Time: <15 seconds.

ELECTRICAL
Line Voltage: 120V AC, 50/60Hz.
230V AC ±10%, 50Hz ±1Hz.

SAFETY
Safety Interlock 2-pin terminal block on rear panel; shorted for operation.

OUTPUTS – FRONT
OUTPUT: High Voltage insulated, 15KV rating.
RETURN: High Voltage insulated, 15KV rating.
1000:1: BNC (optional).

OUTPUTS – REAR
TESTMNINDER: DB9 Female (optional).
Inlet Module: Inlet module with fuse and power switch combination.
