HT-10KVP AC/DC:

SKU: 00-HT10KP ac/dc

Hipot Tester
10KVac @ 10mA
14KVdc @ 5 mA

$4,890.00

Relay Isolated Interface: See manual for details

Options

Hipot Tester <br />10KVac @ 10mA <br />14KVdc @ 5 mA $4,890.00

Designed & Built in the USA

  • 1-Year Warranty
  • 100% Secure Checkout
Guaranteed Safe Checkout

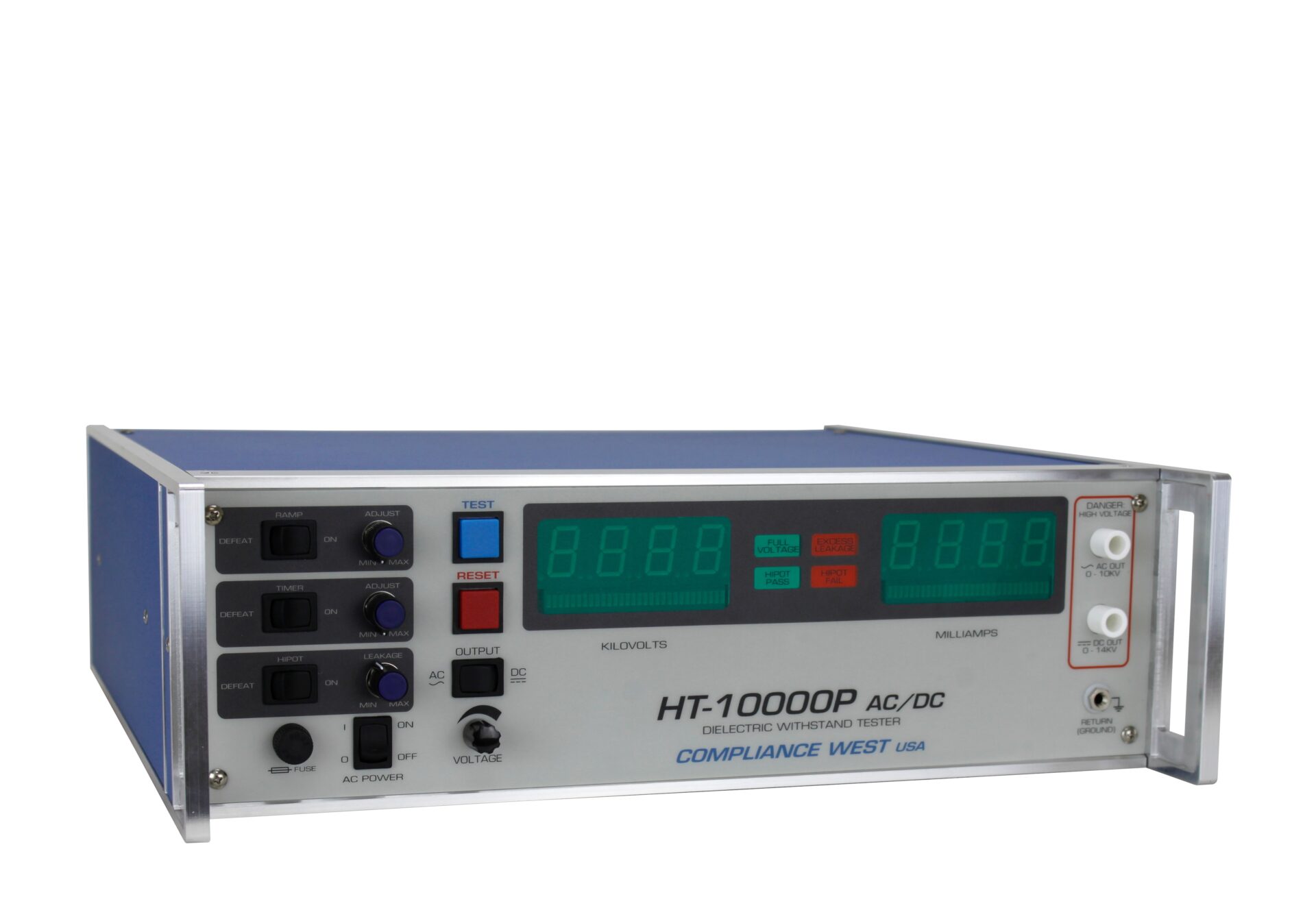

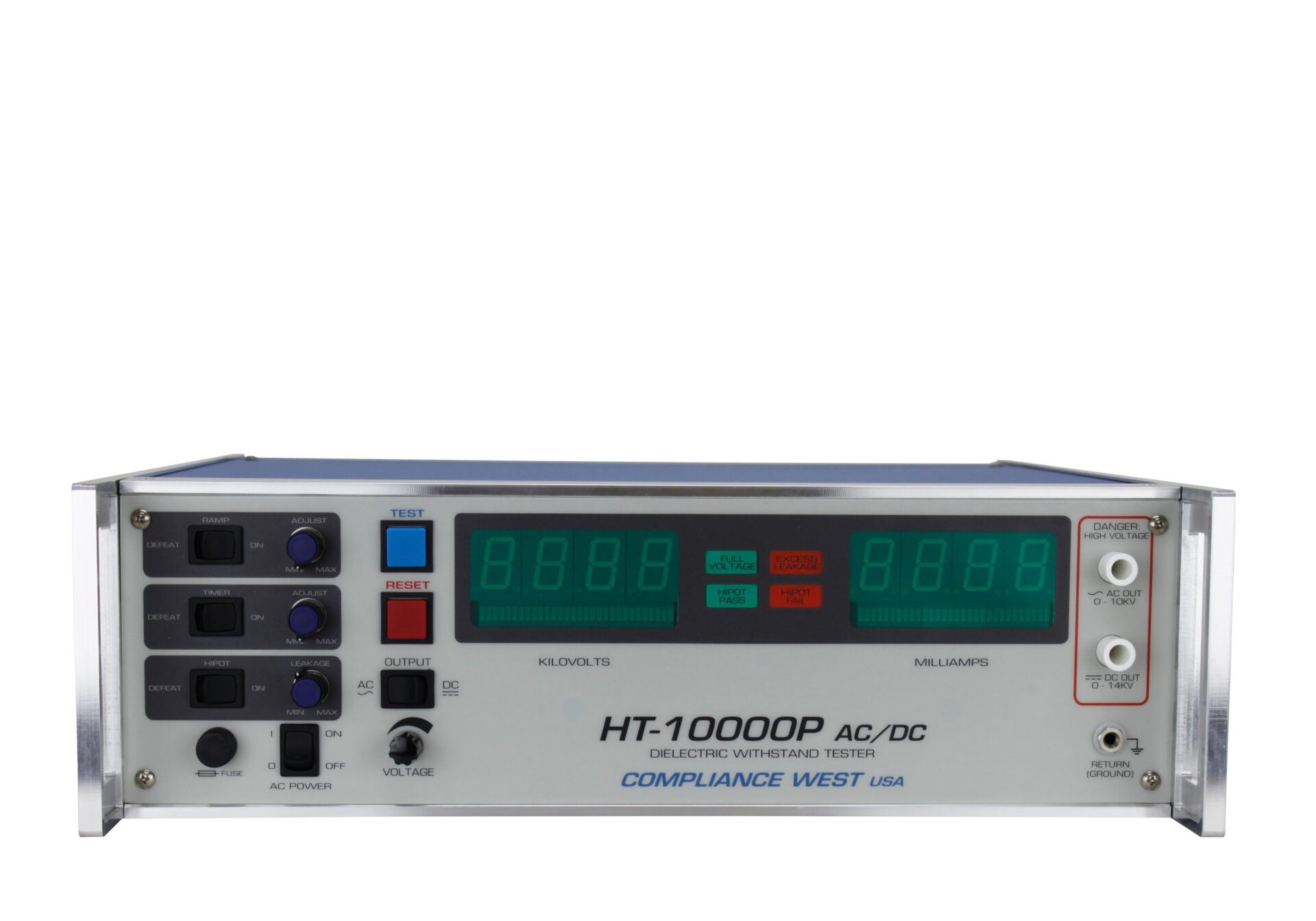

HT-10KVPAC/DC Hipot Tester, 10KVac @ 10mA / 14KVdc @ 5 mA. Ships complete with cables, manual, and Calibration Certificate. Made in the USA. Calibration and Repair services available. Not sure – contact us!

Features

  • HT10000P AC: AC output to 10000 Volts. Delivers 1 through 8 milliamps. Custom outputs to 25 mA.
  • HT10000P DC: DC output to 14000 Volts. Delivers 1 through 5 milliamps.
  • Logic Controlled, One-button testing. LED indicators. Buzzer upon failure, test terminates. Test termination defeatable by switch on rear panel. Provided with arc detection circuit to properly detect hipot failures.

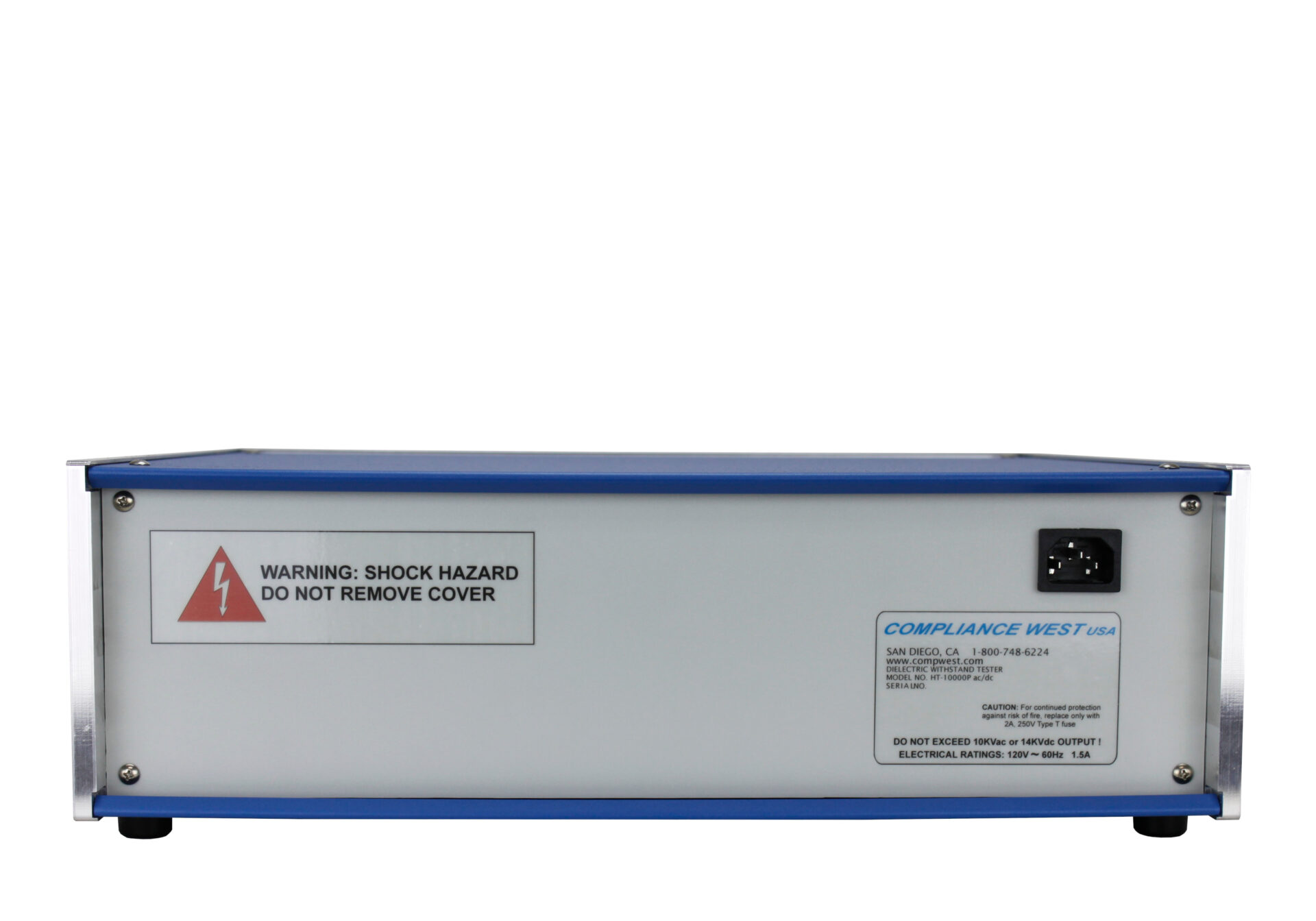

  • Rear panel adjustments; leakage limit, ramp time, test time and voltage.
  • Ergonomic design for safety and ease of use.
  • High voltage output jack.
  • Automatic voltage ramp-down circuit eliminates residual voltage.
  • Designed for product development and laboratory use.
  • High efficiency design, low power consumption.
  • All test leads included.
  • Calibrated to NIST standards.
  • 1 year warranty
  • HTT-1 and HTT-1RHipot and Ground Continuity Function Checker Compatible

Specifications

TESTING CIRCUITRY
Test Type: AC/DC.
Max. Output Voltage: 10,000Vac / 14,000Vdc.
Leakage Current: 10mAac / 5mAdc, 0.1mA increments.
Breakdown Detect: Independent High Frequency Circuit (50KHz–500KHz).
Transformer Power: <500VA.
Leakage Current Detect: Independent Low Frequency Circuit.
Ramp Time Range: 1-5 Seconds.
Test Time Range: 1-60 Seconds.
Display: 4 Digits LED Display.
Voltage Meter Accuracy: ± 0.1KVac full scale / ± 0.2KVdc full scale.
Leakage Accuracy: ±0.1mA full scale.
Duty Cycle: 100%; Continuous.
Pass/Fail Repeatability: ±3%

ELECTRICAL
Rated Input Voltage: 120Vac. 220,230V optional
Frequency: 50/60Hz.
Fuse: 2A, 250V, time delay, 5x20mm.

SAFETY
Safety Interlock: 2-pin terminal block on rear panel; shorted for operation. (Optional)
Output Voltage Indicator: Front panel meter directly connected to High Voltage.
Failure Indicator: Visual; provided by red LED’s, Audible; provided by buzzer.
Test automatically terminated on failure.

OUTPUTS
HV: High Voltage output.
RETURN: 4mm Socket (XEF-1RR), 1000V, CAT IV, 24A, Black
