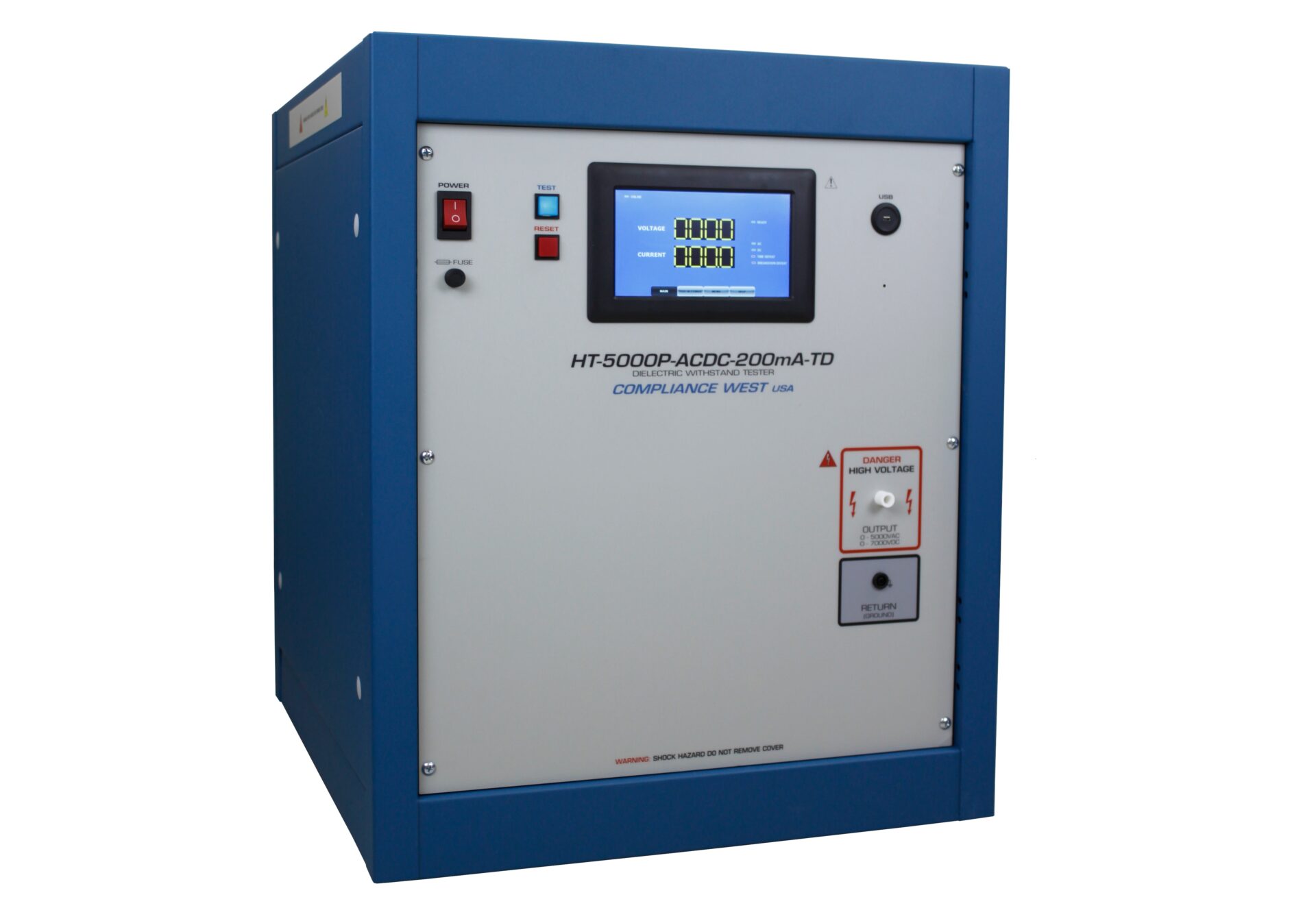

HT-5000P ACDC 200mA TD:

SKU: 00-HT5000PACDC-200mA -TD

Hipot Tester
5000Vac/Vdc @ 200mA
7000Vdc @ 140mA
Touchscreen Display
USB Labview control ready!

Call for Price

Designed & Built in the USA

  • 1-Year Warranty
  • 100% Secure Checkout
Guaranteed Safe Checkout

A 5000V AC and 7000V DC Hipot Tester; 200mA at 5000V and 140mA at 7000V.  Color touchscreen control, automatic voltage control and USB Labview control ready

Easy to use. Output Voltage, Leakage Current Limit and Test Duration are controlled from the Display, up to 4 testing steps; 4 different tests can be configured for automatic testing, 3 memory settings, user configurable.  Manual mode allows for quick testing.

Designed for product development and laboratory use. Leakage current limit and dielectric breakdown shutoffs can be defeated to allow troubleshooting and analysis of problems with the DUT.

Video showing the Tester Setup and Operation details.

Video showing a 2200V 160mA Operational Verification Check.

Video showing how to save and load test settings.

Video showing how to test in Manual Mode.

Made in the USA. Ships with Calibration Certificate (Traceability) to ANSI Z540, Operator’s manual and test leads.  ILAC Calibration available.
