HT-5000P V2:

SKU: 00-HT5000P V2

Hipot Tester
5000Vac @ 10mA
6000Vdc @ 5mA

$2,650.00

Mains Voltage (leave blank for 120V)

Relay Isolated Interface: See manual for details

Options

Hipot Tester <br />5000Vac @ 10mA <br />6000Vdc @ 5mA $2,650.00

Designed & Built in the USA

  • 1-Year Warranty
  • 100% Secure Checkout
Guaranteed Safe Checkout

A rugged design with easy-to-use Microcontroller Technology, this AC/DC hipot tests up to 5,000Vac @ 10mA and 6,000Vdc @ 5mA. Tested to withstand a 6″ drop test with no damage. Made in the USA. Includes NIST traceable calibration certificate. Not sure – contact us!

Features

  • AC output: up to 5,000 V.
  • DC output: up to 6,000 V.
  • Microcontroller Technology, one button test, easy to set up.
  • LED’s indicate test progress. Upon failure, buzzer sounds and testing is terminated.

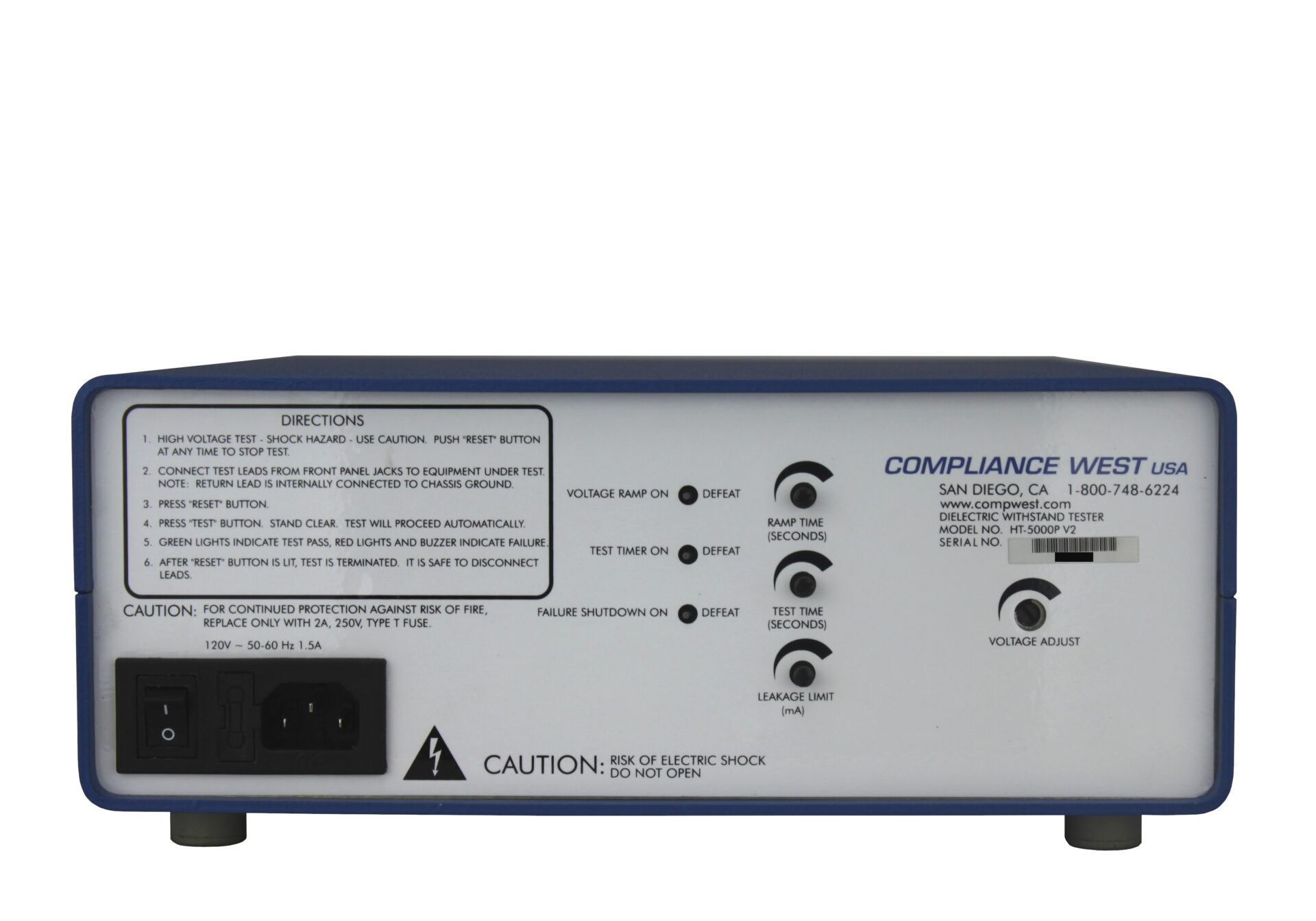

  • Leakage current limit, voltage ramp-up time and test duration are controlled from the rear panel.
  • Voltage ramp, arc detection and test timer are defeatable.
  • Separate arc detection circuitry.
  • Ergonomically designed for safety, speed and efficiency.
  • Designed for product development, production and laboratory use.
  • Rugged construction that can withstand a 6” drop with no damage.
  • Cables, manual and calibration certificate included.
  • One year calibration cycle, one year warranty.
