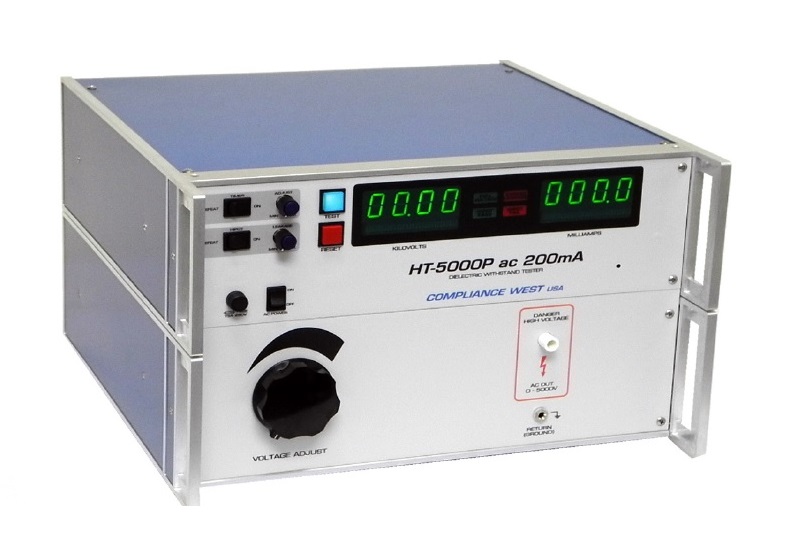

The HT-5000P AC 200mA is a special use AC only hipot tester, delivers up to 200 mA, with voltage output from 200 to 5000V AC. The leakage current can be set from 5-200mA in 1 mA increments in the front panel. One year warranty, calibration certificate to ANSI Z540 included. Made in the USA. Not sure – contact us!
HT-5000P AC 200mA:
SKU: 00-5000PAC-200mAHipot Tester
5000Vac @ 200mA
5000Vac @ 200mA
Call for Price
Hipot Tester with a 5000V 200mA output to perform the breakdown and leakage test with dual display and zero start function.
Hipot Tester
5000Vac @ 200mA
5000Vac @ 200mA
Call for Price
Features
- Leakage current up to 200 mA.
- Microcontroller technologies
- One button test, easy to setup, LED’s indicates test in progress.
- Upon failures buzzer sounds and testing is terminated.
- Output voltage, Leakage current and test duration are controlled in the front panel.
- Main shutdown switch in front panel for safety.
- Zero voltage start included.
- One year calibration cycle.
- One year warranty.
Specifications
TESTING CIRCUITRY
Test Type: AC.
Max. Output Voltage: 5,000Vac.
AC Leakage Current: 5-200mA Full AC scale.
Breakdown Detect: Independent High Frequency Circuit (50KHz–500KHz).
Transformer Power: >500VA.
HV shutdown by Hi-pot Fail: <7mS.
Discharge Time: <7mS.
Leakage Current Detect: Independent Low Frequency Circuit.
Test Time Range: 1-60 Seconds.
Display: 4 Digits LED Display.
Voltage Meter Accuracy: ± 2.0% FSC from 500V to 5kVac
Leakage Accuracy: ±1.0mA full scale.
Duty Cycle: 100%; Continuous.
Pass/Fail Repeatability: ±3%
ELECTRICAL
Rated Input Voltage: 120Vac.
Frequency: 50/60Hz.
Fuse: 120/230V 5A, slow-blow.
SAFETY
Safety Interlock: 2-pin terminal block on rear panel; shorted for operation. (Optional)
Output Voltage Indicator: Front panel meter directly connected to High Voltage.
Failure Indicator: Visual; provided by red LED’s, Audible; provided by buzzer.
Test automatically terminated on failure.
OUTPUTS
HV: High Voltage output socket.
RETURN: 4mm Socket (XEF-1RR), 1000V, CAT IV, 24A, Black.
