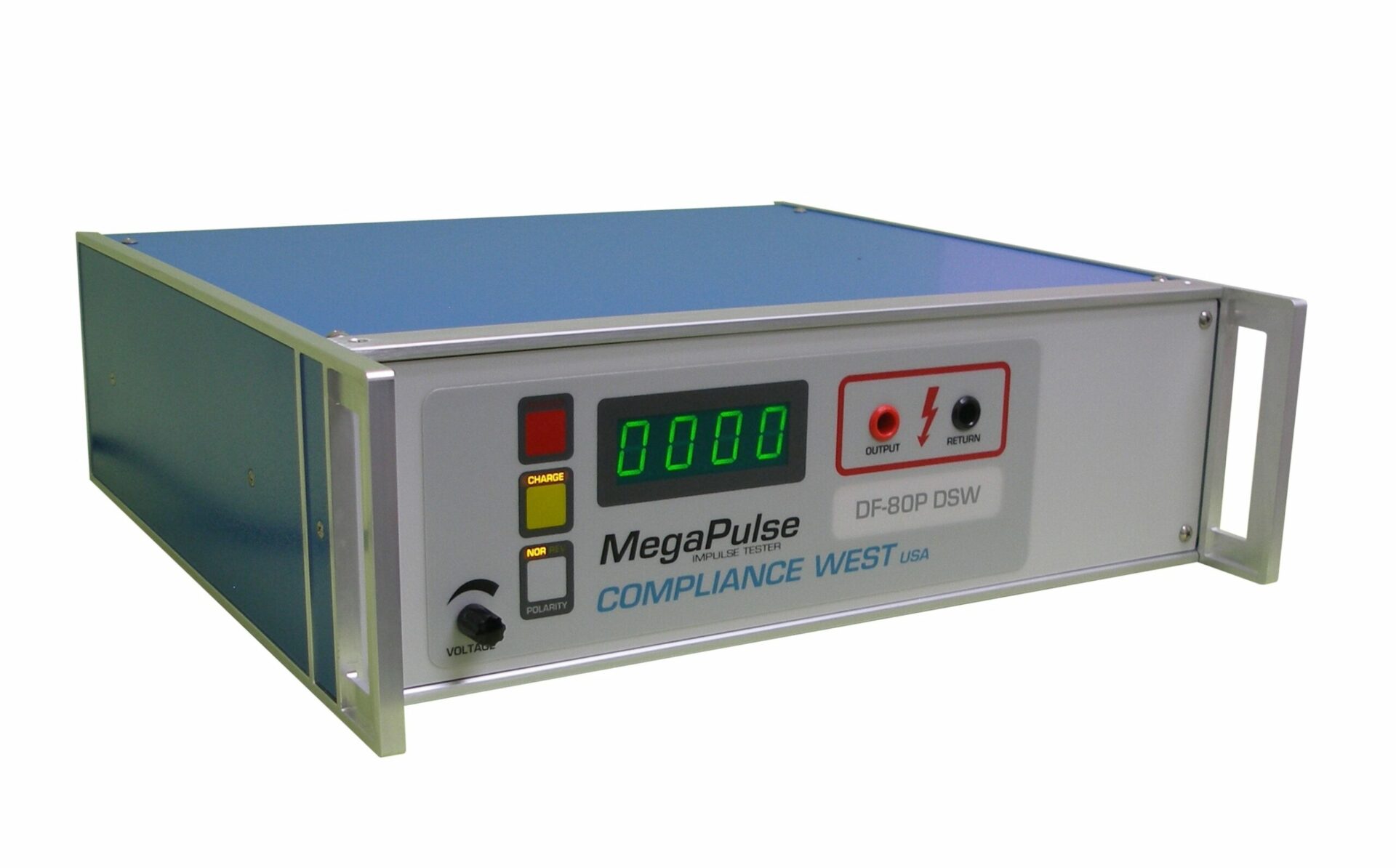

The MegaPulse DF-80PF DSW Surge Tester is designed to conduct the test shown in AAMI DF80, App. DD, Table US.DD.1 and Figure US.DD.1 – Damped sinusoidal waveform parameters. The resulting waveform is in accordance with those requirements. For waveform and tolerance/compliance graphs and information, click here.
The DF-80PF DSW is built with 50Ω Internal impedance (R1) and 10Ω output impedance.
Positive and negative pulses can be delivered manually using the front panel buttons, or the pulses can be set to operate under computer control using the TestMinder Megapulse PF option.
Actual output waveforms are available for review in the Manuals section below.
MegaPulse DF-80PF DSW ships with test leads, graphs of theoretical and actual waveforms, and a Calibration Certificate.
