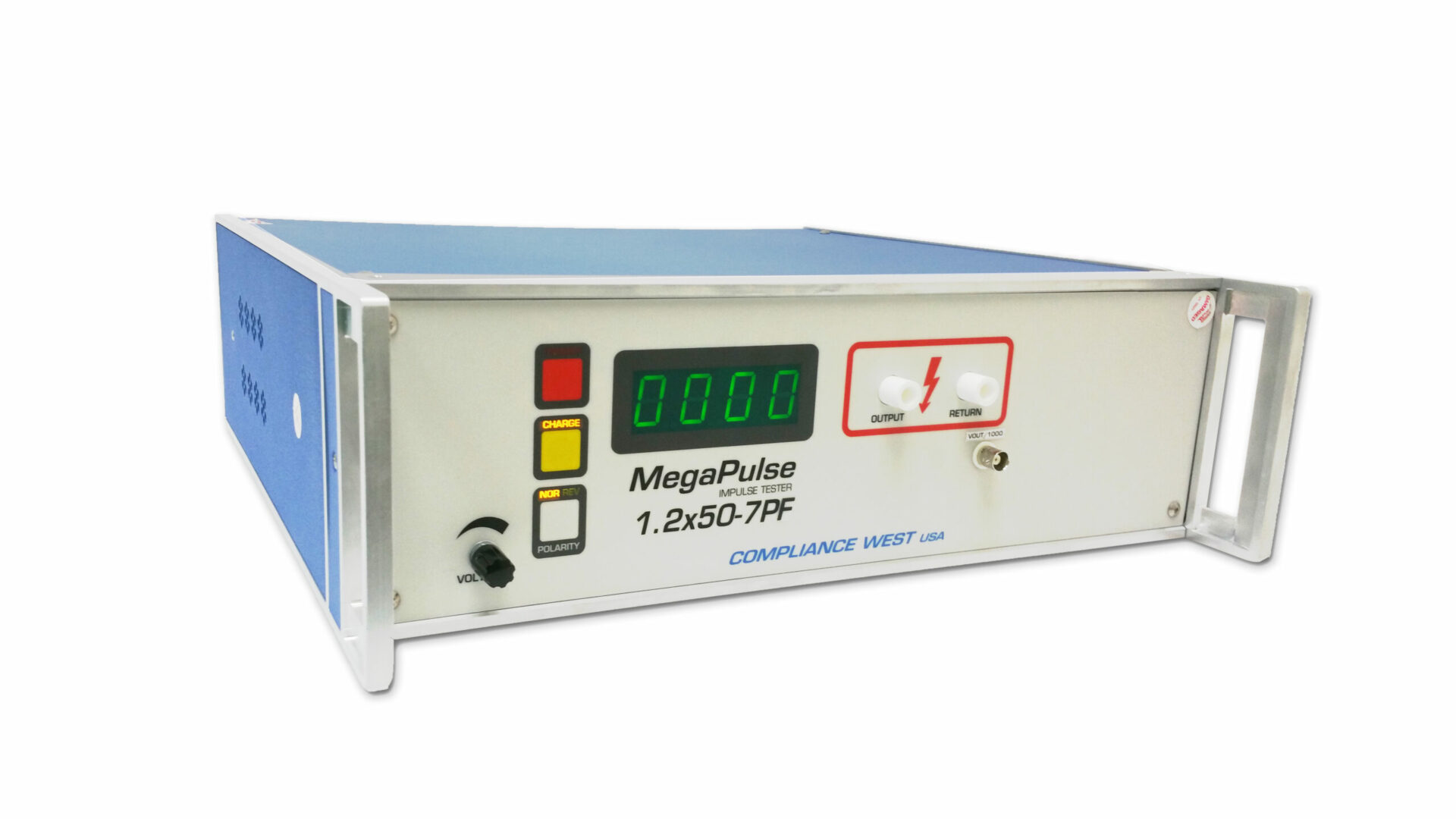

MegaPulse 1.2x50-7200PF:

SKU: 00-MP1.2x50-7200PF 39

Surge Tester 1.2×50-7200PF 12 ohm

$7,590.00

Options

Surge Tester 1.2x50-7200PF 12 ohm
Surge Tester 1.2x50-7200PF 12 ohm $7,590.00

Designed & Built in the USA

  • 1-Year Warranty
  • 100% Secure Checkout
Guaranteed Safe Checkout

Built with the test in IEC 60335, Section 14 in mind. Built in a 3U enclosure, it can provide outputs up to 7200V with a virtual impedance of 12 ohm, and is provided with our fast charge power supply to allow repetitive pulses within 3 sec. The waveform generated is in accordance with IEC 61180.  For automated pulse train testing, use our MegaPulse TestMinder option, which controls from a PC.

MegaPulse 1.2×50-7200PF 12Ω is a general purpose tester with 1.2×50 waveform in accordance with IEC 1180-1.  The peak output can be adjusted between 400 and 7200V.  The tester has a virtual impedance of 12Ω.  There is no defined current waveform.  This pulse is in accordance with the requirements of IEC 60335, paragraph 14, Table 6 up to a rated Impulse Voltage of 6kV.  3 second charge time between pulses.  Polarity can be switched using a front panel switch.

Option 950 additionally delivers a pulse in accordance with the requirements of IEC 60950 Annex N Table 1, Line N.
Option TMM:  USB Computer Pulse control; 32 bit Windows computer required.
Option RI: PLC Interface Relay Board to customer requirements.
Option HVR: V accuum relay used for pulse switching; reduces low voltage prearcing.
Option I72: IGBT used for <1000V voltage switching.  Eliminates low voltage prearcing.  Option TMM required.
Option BNCV: 1000:1 Voltage BNC.  Reference only.
