Medical Breakout Box

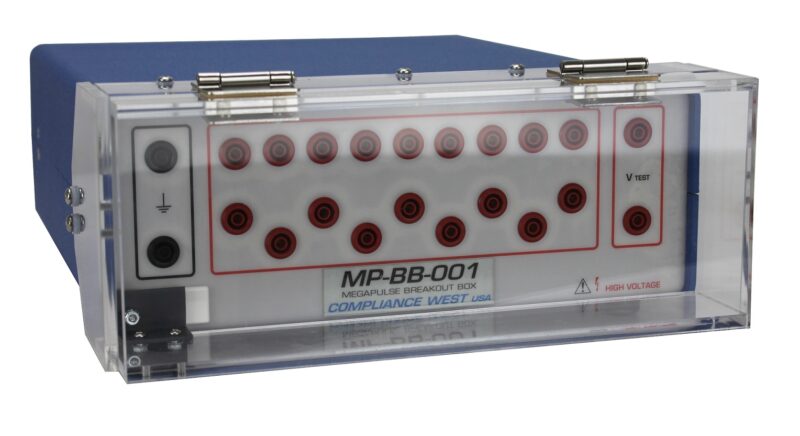

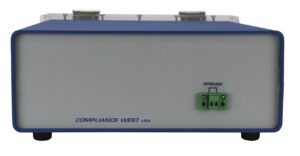

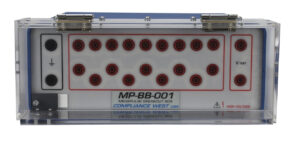

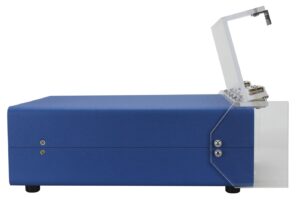

The MP-BB-001 is a breakout box for all medical impulse testers.  When setting up for defibrillation testing, the MP-BB-001 allows the user to connect all the leads from the ECG or other device under test to the test equipment.  The MP-BB-001 allows Ground, Vtest and all SIP/SOPs to be connected easily between the device under test and the medical impulse tester.  The front panel has an interlocked plexiglass cover for safety, with the interlock connections on the rear panel of the MP-BB-001.  The interlock can be connected to medical impulse tester interlock, which will inhibit testing while the plexiglass door is open.
