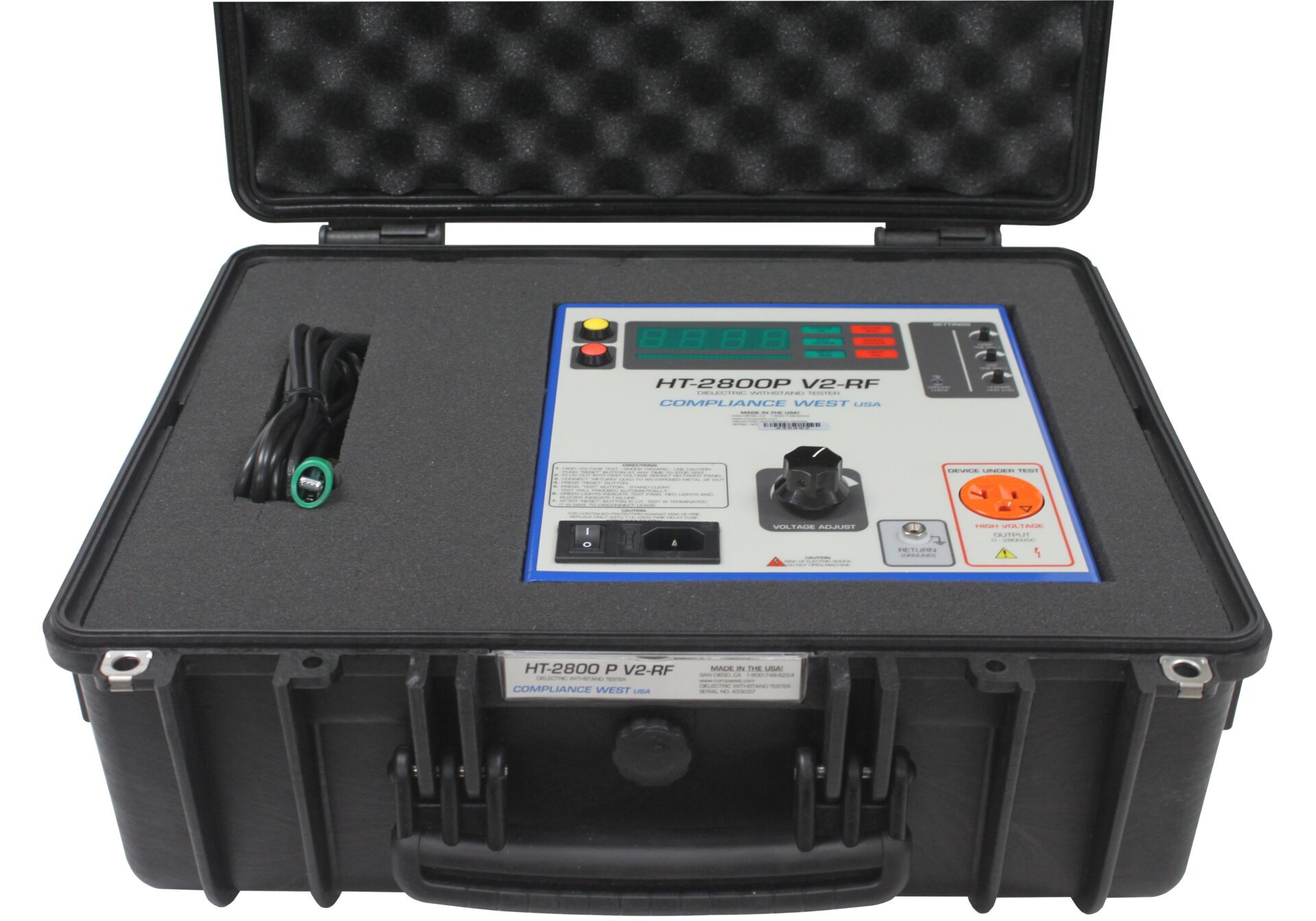

Compliance West introduces our Portable & Rugged Hipot Tester, the HT-2800P V2-RF. It is encased in a shipping enclosure roomy enough for cables or a DVM, with all controls accessible without removing it from the enclosure. Performs 200-2800V DC Hipot Test. Neutral/Hot to Ground Leakage current test up to 5mA DC. Easy to use and connect. Ships complete with cables, manual, and a Calibration Certificate. Made in the USA. Calibration and repair services available. Not sure – contact us!
HT-2800P V2-RF:
SKU: 00-HT2800PV2-RFHipot Tester
2800Vdc @ 5mA
Portable and Rugged!
2800Vdc @ 5mA
Portable and Rugged!
$2,190.00

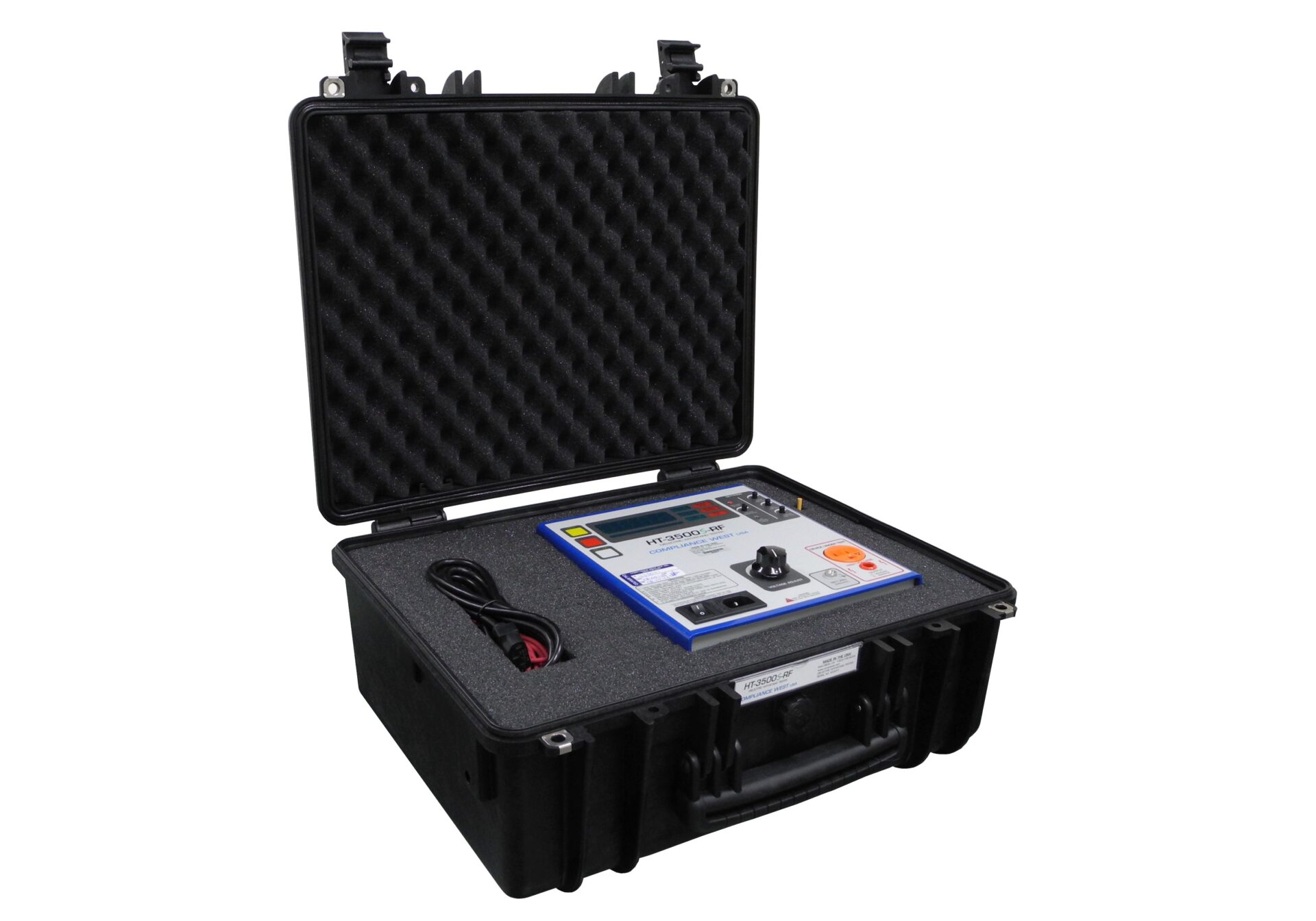

Rugged Hipot Tester encased in a padded shipping enclosure with all controls accessible without removing it from the enclosure.
Hipot Tester
2800Vdc @ 5mA
Portable and Rugged!
2800Vdc @ 5mA
Portable and Rugged!
$2,190.00
Features
- High precision leakage current, duration and ground continuity settings.
- Allows no load setup of leakage current and test dwell times.
- Once entered, ground continuity setting, leakage current and test dwell times can be referenced on the front panel display when unit is not testing.
- Leakage currents can be set from 1-5mA DC in 0.1mA increments.
- Dwell times can be set from 1-60 seconds in 1 second increments.
- Two tests with one setup. Conducts UL/CSA Ground continuity and Hipot tests with one setup, so no additional equipment is needed.
- Build in a portable case 18.6″ wide x 8.4″ high x 16.3″ deep. 22 lbs. Rugged enough to test manufactured housing.
- Ground continuity check is defeatable for testing two-wire products.
- Easy equipment connections. Plug your equipment right into the NEMA plug on the front panel. No adapters needed!
- Optional J2 and J3 cords allow connection of pigtail power leads.
- Simple test outcome judgement. Green lights mean pass – red lights mean fail. Failing tests sound a buzzer as well.
- Ready for your UL Inspector out of the box. NIST Traceable Calibration Certificate to MIL-STD45662-A is included. Cal cert is in accordance with UL guidance.
- Operation Instructions are printed on the rear panel for easy reference.
- In-depth testing. Both true Arc Dectection and Leakage Current circuits test the product to find problems.
- RED lights and a buzzer leave no question if a failure has occurred.
- Expandable for TUV/European Agency Testing. Can be connected to our GF-30AC-T Ground Bond Tester with optional TEST-LINK™.
- Easy shift-by-shift Function Test. Compatible with our Patented function checker, the HTT-1and HTT-1R (With 0.1 ohm Ground check Pass/Fail Setup).
Specifications
| Voltage Range | 0-2800 DC |
| Leakage Current Set Point | 1-5 mA DC |
| Input Voltage Requirements | 117-127 V, 50 /60 Hz |
| Fuse Requirements | 120 V, 2 A Slow Blow |
| Arc Detect | Independent High Frequency Circuit |
| Leakage Detect | Independent Low Frequency Circuit |
| Ground Continuity Set Point | 2.93 Ω, Defeatable |
| Ground Continuity Test Current | 100 mA |
| Test Time Range | 1 – 60 Seconds |
| Ramp Time Range | 1 – 5 Seconds |
| Voltage Meter Accuracy | ± 2 % |
| HV Shutdown by Ground Fail | < 7 mS |
| Duty Cycle | 100% |
| Discharge Time | < 7 mS VAC |
| Discharge Time | < 1.3 Sec VDC at open circuit |
| Transformer Power | < 500 VA |
| Pass/Fail Repeatability | ± 3 % |
| Output Connector | NEMA plug, High Voltage Test Jack |
| Display | 4 digits LED display |
| Test Indicator Led indicators | |
| Failure Indicator | Led indicators and buzzer |
| Programable | No |
| PLC Interface | Optional |
| TestLink (With GF-30AC) | Optional |
| Computer Control | No |
| Voltage Hold on failure | No |
| Top Mounted Handle Optional | |
| Test Defeat | Ground Continuity |
| Autoreset on Pass | Optional |
| Operation Temperature | 15 – 40 °C |
| Relative Humidity Range | 0 – 90 % Non-condensing |
| Dimensions | 9-1/4″ wide x 4-3/4″ high x 10″ deep |
| Weight | 14 Lbs |
| Calibration | One year calibration Certificate |
| Test Cords | Return Lead, Power Cord |
| Test Cords | Ground Continuity Connector Tip |
| Test Cords | J2 and J3 Optional |
| Test Cords | Alligator Clip |
