HTT-1S:

SKU: 00-HTT1S

Hipot and Ground Continuity Function Tester

$340.00

Hipot and Ground Continuity Function Tester $340.00

Designed & Built in the USA

  • 1-Year Warranty
  • 100% Secure Checkout
Guaranteed Safe Checkout

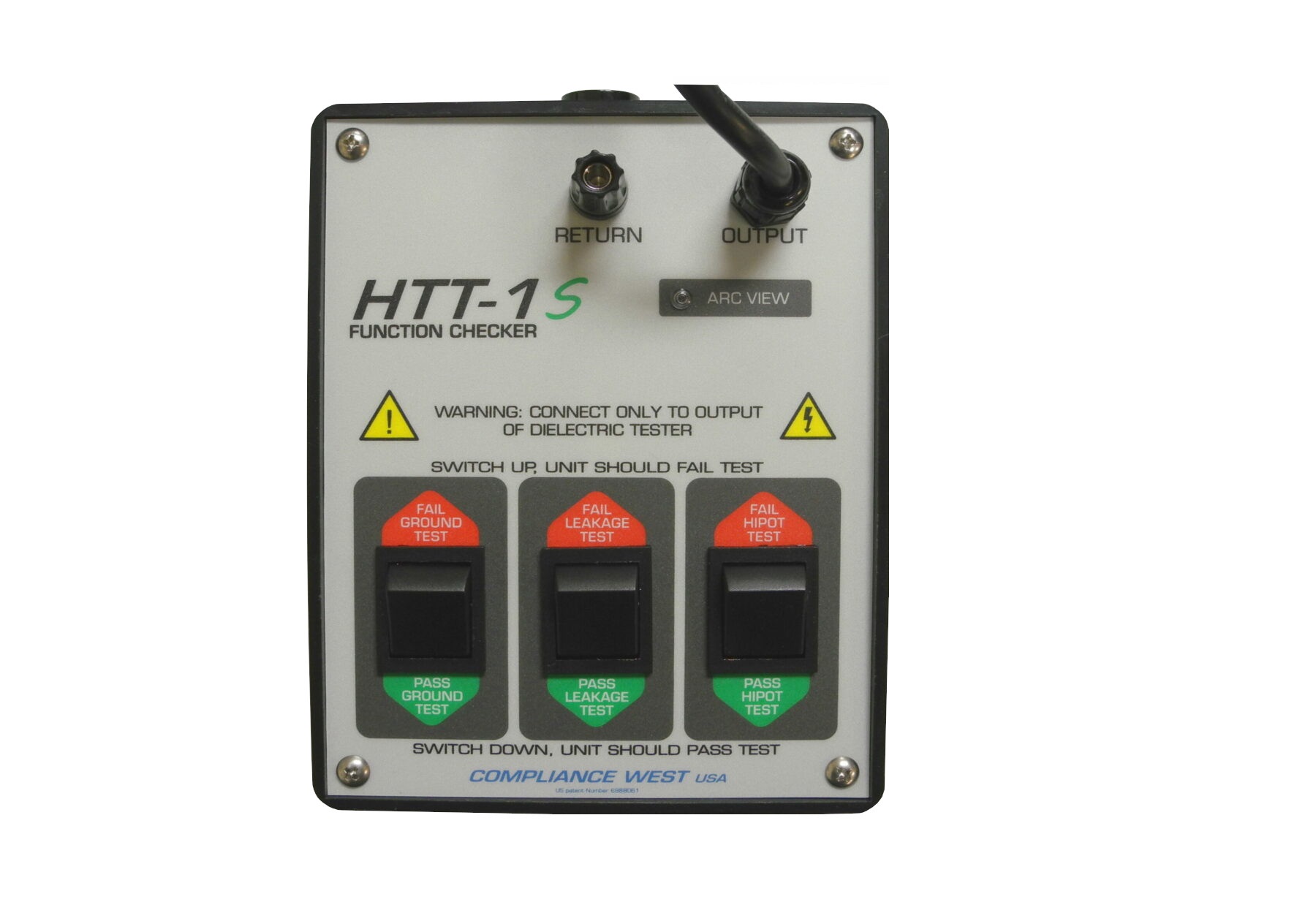

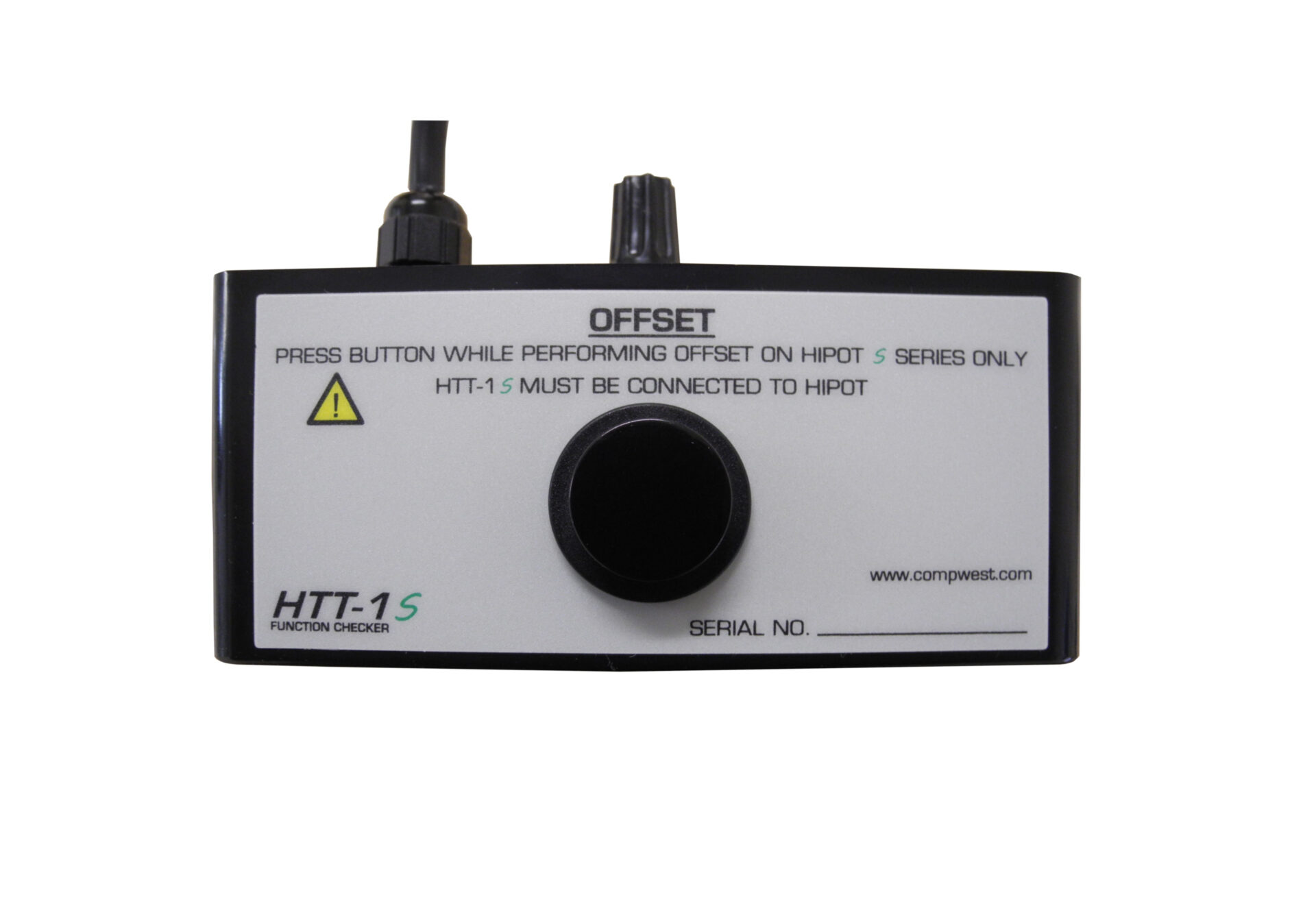

The HTT-1S was designed to provide a fast, safe and reliable way to verify proper operation of Dielectric Withstand (hipot) and Ground Continuity Testers between calibration cycles. It allows the operator to check the result of the three failure modes encountered in production hipot and ground circuit testing (open ground, high leakage current, and dielectric breakdown) separately or in any combination to verify proper test equipment operation. A passing test can also be simulated. The test leads allows connection of the HTT-1S to any hipot tester using a standard NEMA 15A receptacle and banana jacks to allow direct connection to the hipot/ground bond tester(s) using their cables. The manual contains anticipated results and suggests testing procedures. The maximum voltage the HTT-1S can test is 2000Vac/3000Vdc.

Features

  • The stock HTT-1S simulates the following failures:
  • Ground Continuity Chassis to Ground (open), and/or
  • High Leakage Line to Ground (short), and/or
  • Dielectric Withstand Failure (Arc View window displays an arc at 750Vac ± 400V).
  • The HTT-1S can also be set to simulate passing tests:
  • Ground Continuity Chassis to Ground (short), and/or
  • Normal Leakage Line to Ground (open), and /or
  • Dielectric Withstand OK (up to 3000 Votls AC)
  • Arc Testing is at 750 ± 400Vac. Results visible through Front Panel Window.
  • Works with any manufacturer’s Dielectric Withstand or Ground Continuity Tester. The HTT-1S simulates the failures and your tester should return results consistent with the switch settings on the front panel of the HTT-1S
  • The HTT-1S is a passive device. No batteries or power is required.
  • Verifies proper operation of your equipment in less than a minute.
  • Portable.
  • Light weight.
  • Simple to operate.
  • Saves time.
  • For testing of Ground Bond Testers up to 30A..
  • 1 year warranty.

Specifications

Setting of PASS for Leakage Current Open Circuit
Setting of FAIL for Leakage Current Short Circuit
Max Voltage capability of Hipot Test Circuit 3000Vac / 4200Vdc
Setting of PASS for Ground Circuit 0.025 ohm resistance*
Setting of FAIL for Ground Circuit 0.1 ohm resistance*
Setting of Arc Detection Circuit Arc-over at 750V +/- 400Vac / 1050V +/- 560Vdc
ENVIRONMENTAL
Operation Temp 15 – 40 C
Relative Humidity Range 0-90% non-condensing
GENERAL
Dimms 5.3″(W) x 6.8″(H) x 2.3″(D)
Wt 2lbs
*NOTE: Connection resistance to your ground bond equipment can add up to 0.03 ohm to the actual test value.
