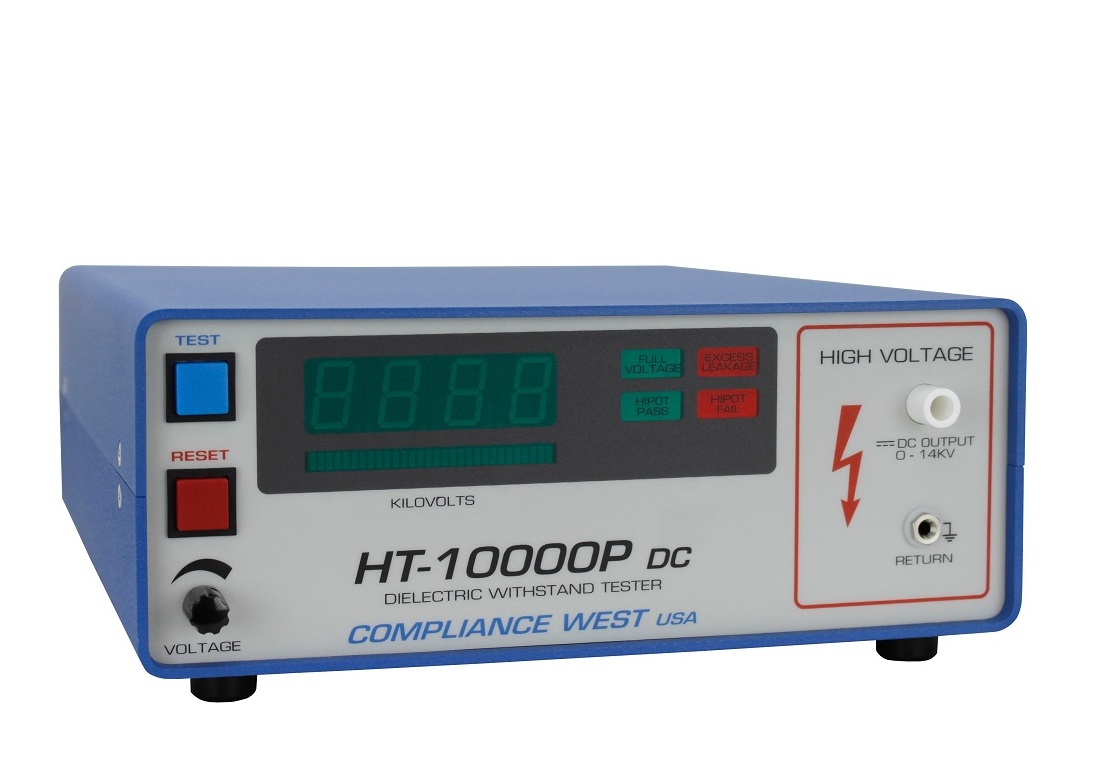

HT-10KVP DC:

SKU: 00-10KP dc

Hipot Tester
14KVdc @ 5mA

$4,230.00

Options

Relay Isolated Interface Board: See Manuals Section for details

Hipot Tester <br />14KVdc @ 5mA $4,230.00

Designed & Built in the USA

  • 1-Year Warranty
  • 100% Secure Checkout
Guaranteed Safe Checkout

HT-10KVPdc Hipot Tester, 0-14kVdc @ 5mA. Ships complete with cables, manual, and Calibration Certificate. Made in the USA. Calibration and Repair services available. Not sure – contact us!

Features

  • HT10000P AC: AC output to 10000 Volts. Delivers 1 through 8 milliamps. Custom outputs to 25 mA.
  • HT10000P DC: DC output to 14000 Volts. Delivers 1 through 5 milliamps.
  • Logic Controlled, One-button testing. LED indicators. Buzzer upon failure, test terminates. Test termination defeatable by switch on rear panel. Provided with arc detection circuit to properly detect hipot failures.
  • Rear panel adjustments; leakage limit, ramp time, test time and voltage.
  • Ergonomic design for safety and ease of use.
  • High voltage output jack.
  • Automatic voltage ramp-down circuit eliminates residual voltage.
  • Designed for product development and laboratory use.
  • High efficiency design, low power consumption.
  • All test leads included.
  • Calibrated to NIST standards.
  • 1 year warranty
  • HTT-1 and HTT-1RHipot and Ground Continuity Function Checker Compatible

Specifications

Voltage Range 0-14000 VDC
Current Range 4 mA
Input Voltage Requirements 108-132 V, 50 /60 Hz, 2A max
Fuse Requirements 120 VAC
Arc Detect Separate high Frequency circuit
Leakage Detect Separate Low frequency circuit
Ground Continuity N/A
Ground Continuity Current N/A
Test Time Range 1 – 60 seconds
Ramp time Range 1 – 5 Seconds
Voltage Meter Accuracy ± 2 %
Current Meter Accuracy ±0.1 mA
Resistance measure Range N/A
Resistance auto offset Range N/A
Resistance Measure Accuracy N/A
HV shutdown by Ground Fail N/A
Duty cycle 100%
Discharge Time (Resistive Load)
Transformer Output < 500 VAC
Pass/Fail Repeatability ± 3 %
Output connector High Voltage Jack
Display 4 digits LED display
Test indicator Led indicators
Failure Indicator Led indicators and buzzer
Programable No
PLC Interface No
TestLink N/A
Testminder No
Voltage Hold on failure Available
Top Mounted handle No
Test Defeat Ramp Time, Test Time and Breakdown Fail
Autoreset on Pass Optional
Operation Temperature 15 – 40 °C
Relative Humidity Range 0 – 90 % Non-condensing
Dimensions 10″ wide x 5″ high x 12″ deep
Weight 17.5 Lb
Calibration One year calibration Certificate
Test Cords Return lead, High Voltage Test Lead, Power cord
HTS/Schedule B 9030.39.0100
ECCN 3B992
What is in the box Return lead, High Voltage Test Lead, Power cord
